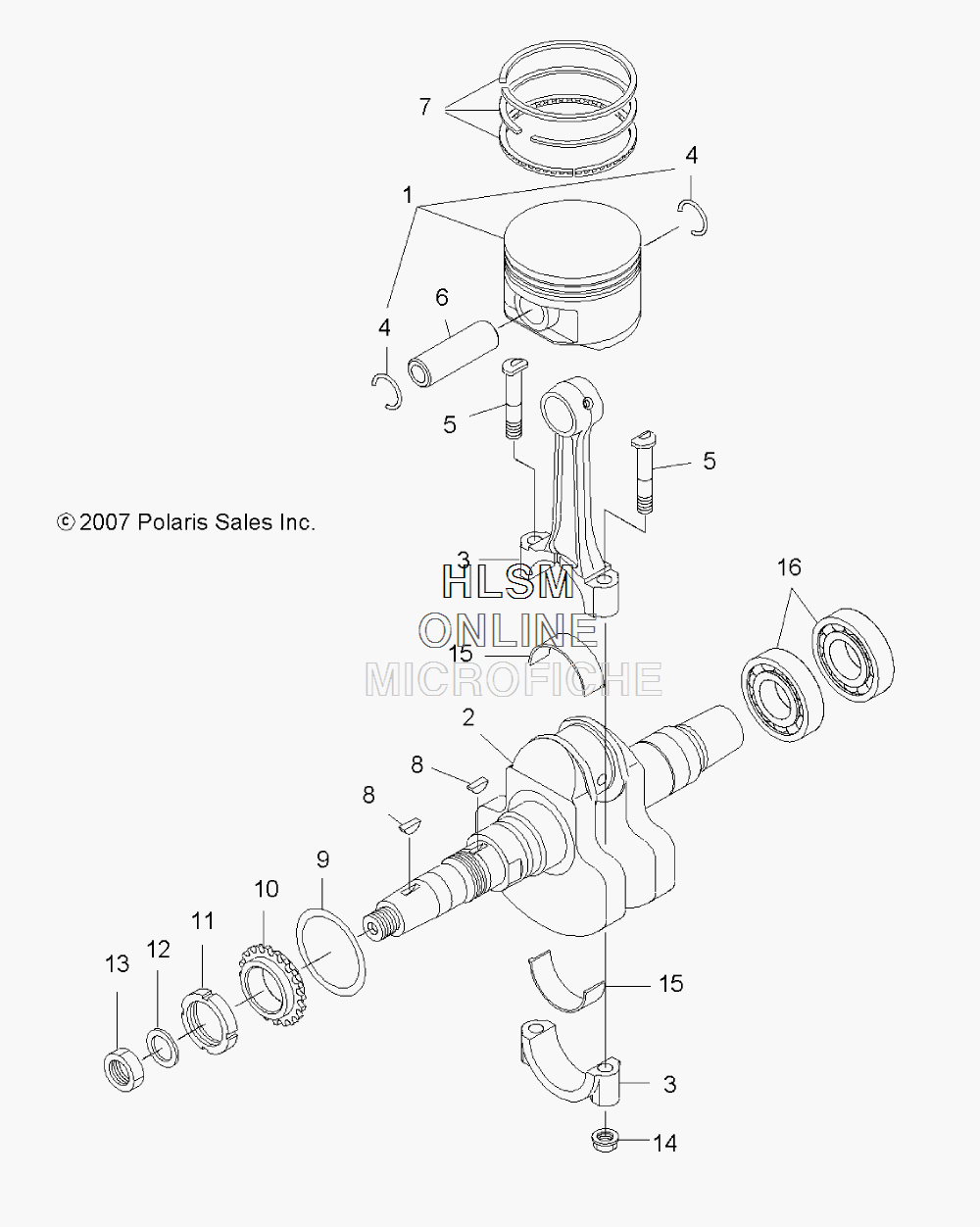

CRANKSHAFT W/ CYLINDER для Polaris TRAILBLAZER 330 (BA32AA) (INDY RED) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3087241 SET, PISTON, STANDARD (INCL. 4)
    SET, PISTON, STANDARD (INCL. 4)
  • 1
    3087242 SET, PISTON, .010 INCH/.25MM O/S (INCL. 4)
    SET, PISTON, .010 INCH/.25MM O/S (INCL. 4)
  • 1
    3087243 SET, PISTON, .020 INCH/.50MM O/S (INCL. 4)
    SET, PISTON, .020 INCH/.50MM O/S (INCL. 4)
  • 2
    3087051 ASM., CRANKSHAFT (INCL. 16)
    ASM., CRANKSHAFT (INCL. 16)
  • 3
    3087239 ASM., CONNECTING ROD (INCL. 5,14)
    ASM., CONNECTING ROD (INCL. 5,14)
  • 4
    3084167 CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 5
    3087240 BOLT, CONNECTING ROD
    BOLT, CONNECTING ROD
  • 6
    3089821 PIN, PISTON
    PIN, PISTON
  • 7
    3087244 SET, PISTON, RING, STANDARD (INCL. TOP, MID, BOTTOM RINGS)
    SET, PISTON, RING, STANDARD (INCL. TOP, MID, BOTTOM RINGS)
  • 7
    3087245 SET, PISTON, RING, .010 INCH/.25MM O/S (INCL. TOP, MID, BOTTOM RINGS)
    SET, PISTON, RING, .010 INCH/.25MM O/S (INCL. TOP, MID, BOTTOM RINGS)
  • 7
    3087246 SET, PISTON, RING, .020 INCH/.50MM O/S (INCL. TOP, MID, BOTTOM RINGS)
    SET, PISTON, RING, .020 INCH/.50MM O/S (INCL. TOP, MID, BOTTOM RINGS)
  • 8
    3240168 KEY, WOODRUFF
    KEY, WOODRUFF
  • 9
    3086434 SPACER, 0.4
    SPACER, 0.4
  • 9
    3086435 SPACER, 0.6
    SPACER, 0.6
  • 9
    3086436 SPACER, 0.8
    SPACER, 0.8
  • 9
    3086437 SPACER, 1.0
    SPACER, 1.0
  • 10
    3086492 SPROCKET 1
    SPROCKET 1
  • 11
    3085528 NUT, SLIT
    NUT, SLIT
  • 12
    3086767 WASHER
    WASHER
  • 13
    3083905 NUT, LOCK
    NUT, LOCK
  • 14
    3086426 NUT
    NUT
  • 15
    3086427 BEARING, STANDARD
    BEARING, STANDARD
  • 15
    3086798 BEARING, 0.05 O/S
    BEARING, 0.05 O/S
  • 15
    3086799 BEARING, 0.25 O/S
    BEARING, 0.25 O/S
  • 16
    3085815 BEARING, BALL
    BEARING, BALL
