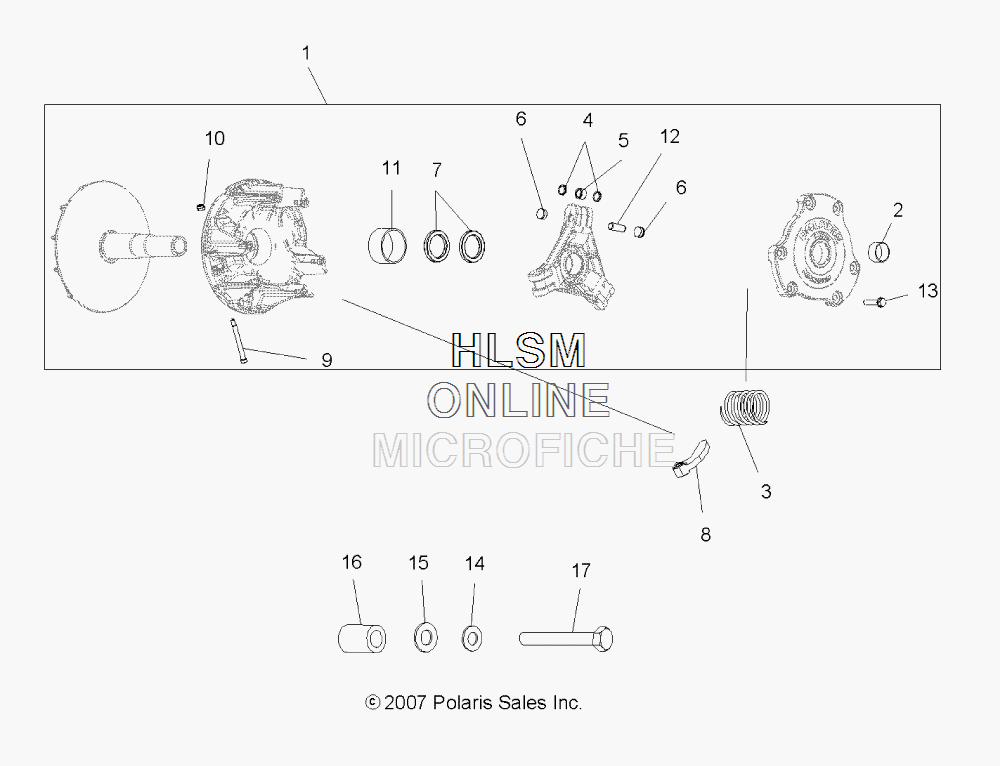

CLUTCH - PRIMARY для Polaris TRAILBLAZER 330 (BA32AA) (INDY RED) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    1322682 ASM., DRIVE CLUTCH (INCL. 2,4-7,9-13)
    ASM., DRIVE CLUTCH (INCL. 2,4-7,9-13)
  • 2
    3576510 COVER, BEARING
    COVER, BEARING
  • 3
    7041157 SPRING, CLUTCH
    SPRING, CLUTCH
  • 4
    5430945 WASHER
    WASHER
  • 5
    1321457 ASM., ROLLER AND BUSHING
    ASM., ROLLER AND BUSHING
  • 6
    5431936 BUTTON, CLUTCH
    BUTTON, CLUTCH
  • 7
    5210752 SPACER, .020
    SPACER, .020
  • 7
    5242981 SPACER, .025
    SPACER, .025
  • 7
    5210753 SPACER, .032
    SPACER, .032
  • 7
    5210754 SPACER, .050
    SPACER, .050
  • 8
    5630709 WEIGHT, SHIFT, 10-RIGHT HAND
    WEIGHT, SHIFT, 10-RIGHT HAND
  • 9
    7512266 BOLT, SHOULDER
    BOLT, SHOULDER
  • 10
    7541906 NUT, FLEXLOC
    NUT, FLEXLOC
  • 11
    3576504 BEARING, MOVEABLE, 1/2 INCH
    BEARING, MOVEABLE, 1/2 INCH
  • 12
    5020422 PIN, ROLLER
    PIN, ROLLER
  • 13
    7518062 SCREW
    SCREW
  • 14
    7575202 WASHER, LOCK
    WASHER, LOCK
  • 15
    5210748 WASHER
    WASHER
  • 16
    5430261 BUSHING
    BUSHING
  • 17
    7512566 BOLT
    BOLT
