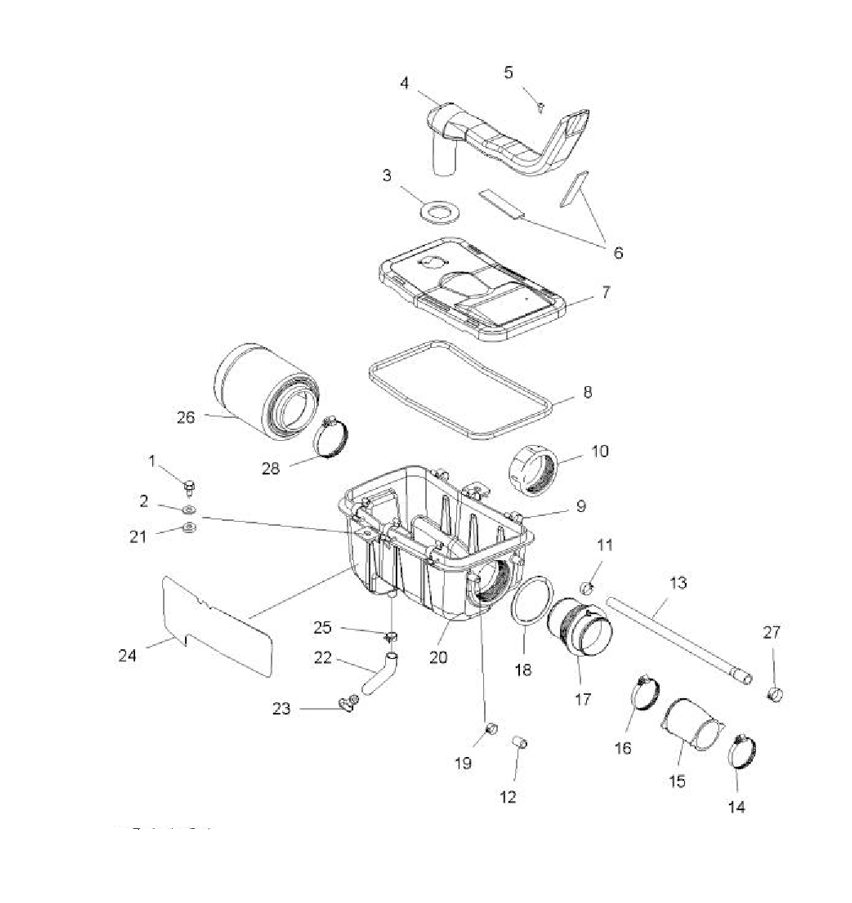

AIR INTAKE SYSTEM для Polaris TRAIL BOSS 330 (CA32AA) (INDY RED) - 2008 года выпуска`
-
№АртикулНазвание
-
17518306 SCR-1/4-20X1.50-HX/W-TAPR-GP-YSCR-1/4-20X1.50-HX/W-TAPR-GP-Y
-
27558301 WASHER, FLATWASHER, FLAT
-
35812023 SEALSEAL
-
45436947 DUCT-INLET,AIRBOX COVERDUCT-INLET,AIRBOX COVER
-
57517317 SCREWSCREW
-
65810317 PAD,BULK FUELPAD,BULK FUEL
-
75433769 COVER,AIRBOXCOVER,AIRBOX
-
85812829 SEAL-AIRBOX COVERSEAL-AIRBOX COVER
-
95242044 CLIPCLIP
-
105432601 COLLAR,CARBURETOR,INLETCOLLAR,CARBURETOR,INLET
-
117080699 CLAMP,HOSECLAMP,HOSE
-
125433396 CAP,END,406-12,3/4BLACKCAP,END,406-12,3/4BLACK
-
135411866 HOSE,BRTHR,.47-.38X13.5''HOSE,BRTHR,.47-.38X13.5''
-
147080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
155411588 BOOT-CARBURETORBOOT-CARBURETOR
-
167080413 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
175433180 DUCT-CARBURETOR INLETDUCT-CARBURETOR INLET
-
185830128 GASKET,CARBURETOR INLET DUCTGASKET,CARBURETOR INLET DUCT
-
197080534 CLAMP,HOSECLAMP,HOSE
-
205435759 BOX-AIR INTAKEBOX-AIR INTAKE
-
217555932 WASHER,NYLONWASHER,NYLON
-
225412111 HOSE-DRAIN,FORMED,.50X.63HOSE-DRAIN,FORMED,.50X.63
-
235432377 PLUG, TRAPPLUG, TRAP
-
245812111 FOIL-RIGHT HANDFOIL-RIGHT HAND
-
257080650 CLAMP,HOSECLAMP,HOSE
-
261253372 ASM-FILTER,AIR,4.0'' LONGASM-FILTER,AIR,4.0'' LONG
-
277080694 CLAMP,HOSE,SPRINGCLAMP,HOSE,SPRING
-
287080707 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
