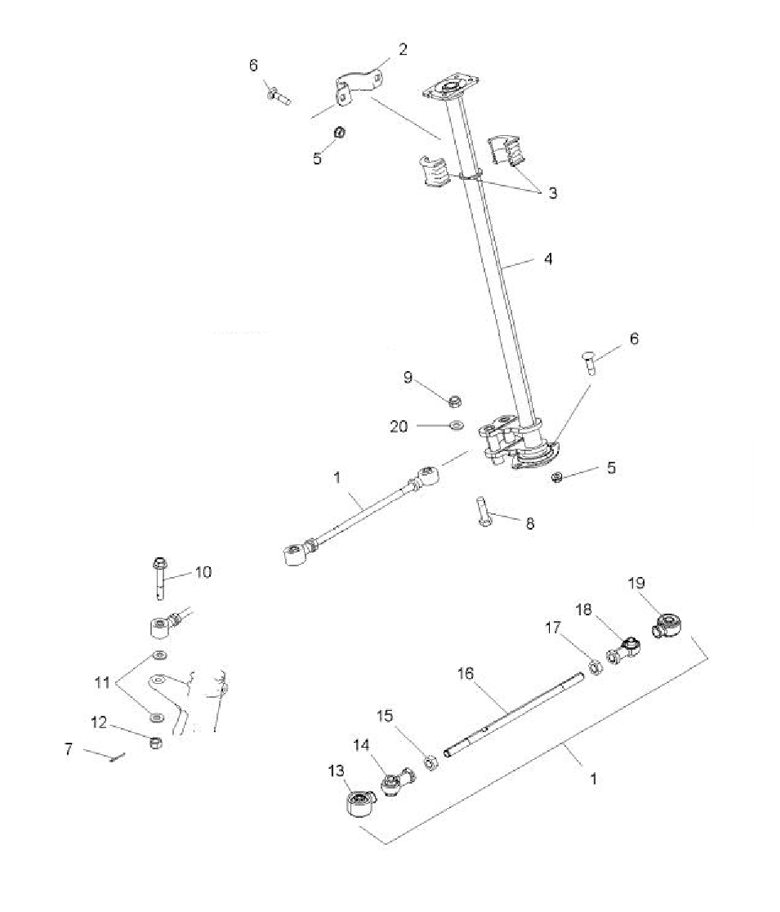

STEERING POST W/TIE RODS для Polaris TRAIL BOSS 330 (CA32AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
11822851 ASM-TIE ROD,1/2-20X14.16 (INCL. 13-19)ASM-TIE ROD,1/2-20X14.16 (INCL. 13-19)
-
25246732 BRKT-UPPER BUSHINGBRKT-UPPER BUSHING
-
35433866 BUSHING-UPPER,1 INBUSHING-UPPER,1 IN
-
41015958 ASM-STEERING POST,2X4,RAD RIVASM-STEERING POST,2X4,RAD RIV
-
57542343 NUT,FLANGENUT,FLANGE
-
67517428 BOLTBOLT
-
77661203 PIN,COTTERPIN,COTTER
-
87518033 BOLT-3/8-24X4 SPECIAL FLANGE-YBOLT-3/8-24X4 SPECIAL FLANGE-Y
-
97542439 NUT,NYLOKNUT,NYLOK
-
107517909 BOLT-M10X1.25X65,HX WASH HDBOLT-M10X1.25X65,HX WASH HD
-
117556099 WASHERWASHER
-
127547177 NUT-M10X1.25-HX-LOCK-YNUT-M10X1.25-HX-LOCK-Y
-
135412929 BOOT-SEAL,ROD END,10MMBOOT-SEAL,ROD END,10MM
-
147061138 ROD-END,10MM,1/2-20LEFT HAND,42 DEGROD-END,10MM,1/2-20LEFT HAND,42 DEG
-
157547028 NUT,JAM, LEFT HANDNUT,JAM, LEFT HAND
-
165134242 ROD-TIE,1/2-20X11.45ROD-TIE,1/2-20X11.45
-
177542711 NUT-JAMNUT-JAM
-
187061139 ROD-END,3/8,1/2-20RIGHT HAND,44 DEGROD-END,3/8,1/2-20RIGHT HAND,44 DEG
-
195412928 BOOT-SEAL,ROD END,1/2 INBOOT-SEAL,ROD END,1/2 IN
-
207558403 WASHER,WROUGHTWASHER,WROUGHT
