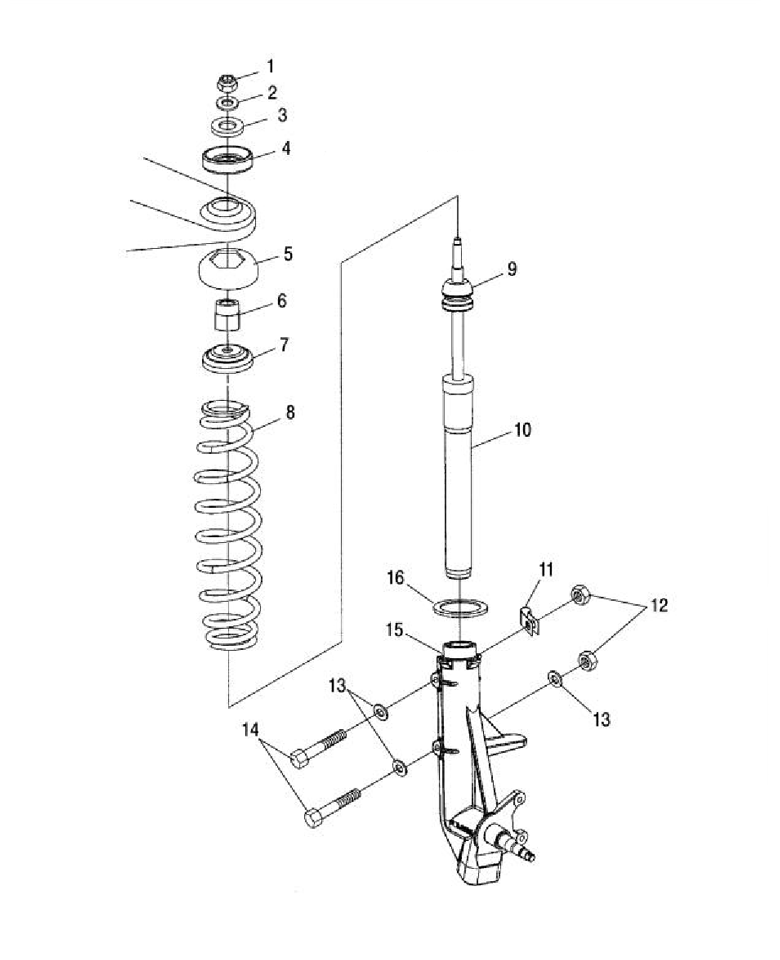

SUSPENSION - FRONT STRUT для Polaris TRAIL BOSS 330 (CA32AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT,BALL,TOPPIVOT,BALL,TOP
-
55432871 PIVOT,BALL,BOTTOMPIVOT,BALL,BOTTOM
-
65132062 SPACER-1/2-20SPACER-1/2-20
-
75243364 RETAINER-SPRINGRETAINER-SPRING
-
87041850-067 SPRING-COMP,41#/IN, BLACKSPRING-COMP,41#/IN, BLACK
-
95412665 BUMPER-MCU,17.8MM IDBUMPER-MCU,17.8MM ID
-
107041761 STRUT-FRONT,18X30MM,153.8MM STSTRUT-FRONT,18X30MM,153.8MM ST
-
117080367 CLAMP, CABLECLAMP, CABLE
-
127542324 NUT,NYLOKNUT,NYLOK
-
137558402 WASHER,FLATWASHER,FLAT
-
147515339 BOLTBOLT
-
155135135 SUPPORT-STRUT/SPINDLE (MACH) LEFT HANDSUPPORT-STRUT/SPINDLE (MACH) LEFT HAND
-
155135136 SUPPORT-STRUT/SPINDLE (MACH) RIGHT HANDSUPPORT-STRUT/SPINDLE (MACH) RIGHT HAND
-
165211115 WASHERWASHER
