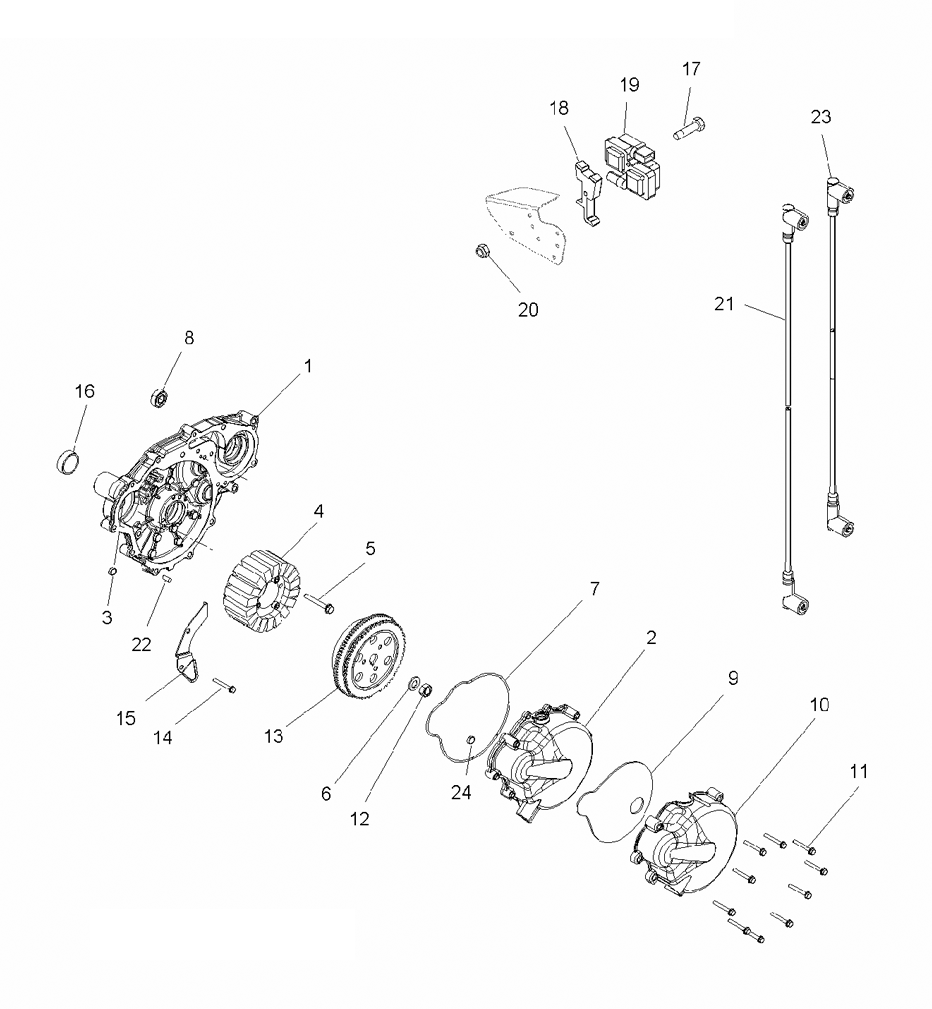

IGNITION SYSTEM для Polaris SPORTSMAN X2 700 EFI (TN68AX) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    1203096 ASM-COVER, ENGINE MAG [INCL. 3,22] [BUILT 9/03 AND BEFORE]
    ASM-COVER, ENGINE MAG [INCL. 3,22] [BUILT 9/03 AND BEFORE]
  • 1
    1203626 ASM-COVER, ENGINE MAG [INCL. 3,22] [BUILT 9/04 AND AFTER]
    ASM-COVER, ENGINE MAG [INCL. 3,22] [BUILT 9/04 AND AFTER]
  • 2
    1203334 ASM-COVER STATOR, EFI [INCL. BUSHING]
    ASM-COVER STATOR, EFI [INCL. BUSHING]
  • 3
    3514623 BUSHING
    BUSHING
  • 4
    4011982 STATOR-ATV, EFI
    STATOR-ATV, EFI
  • 5
    7517848 SCR-M6X1.0X35 SOC/CP-Y/D
    SCR-M6X1.0X35 SOC/CP-Y/D
  • 6
    7555907 WASHER
    WASHER
  • 7
    5412458 O-RING
    O-RING
  • 8
    5412455 SEAL-OIL, 15X35X8
    SEAL-OIL, 15X35X8
  • 9
    5813050 COVER-SOUND DAMPENING
    COVER-SOUND DAMPENING
  • 10
    5436652 COVER-STATOR, OUTER, PLASTIC
    COVER-STATOR, OUTER, PLASTIC
  • 11
    7517950 SCR-M6X1.0X45 HX-FL-Y/D
    SCR-M6X1.0X45 HX-FL-Y/D
  • 12
    7547213 NUT-M14X1.50, HEX-Y
    NUT-M14X1.50, HEX-Y
  • 13
    4011981 FLYWHEEL-ATV, EFI
    FLYWHEEL-ATV, EFI
  • 14
    7517950 SCR-M6X1.0X45 HX-FL-Y/D
    SCR-M6X1.0X45 HX-FL-Y/D
  • 15
    5245364 STATOR-BRACKET, WIRE-HOLD-DOWN
    STATOR-BRACKET, WIRE-HOLD-DOWN
  • 16
    5412881 SEAL-FLANGED, 29X44X10 W/HELIX
    SEAL-FLANGED, 29X44X10 W/HELIX
  • 17
    7515156 SCREW
    SCREW
  • 18
    5436577 SPACER-COIL MOUNT
    SPACER-COIL MOUNT
  • 19
    2876049 KIT-IGNITION COIL, ATV TWIN EFI [INCL. 17-20]
    KIT-IGNITION COIL, ATV TWIN EFI [INCL. 17-20]
  • 20
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 21
    4011844 WIRE-SPARKPLUG, 62.3CM
    WIRE-SPARKPLUG, 62.3CM
  • 22
    7661946 PIN
    PIN
  • 23
    4011845 WIRE-SPARKPLUG, 72.1CM
    WIRE-SPARKPLUG, 72.1CM
  • 24
    3514553 BUSHING-12.08X17X10
    BUSHING-12.08X17X10
