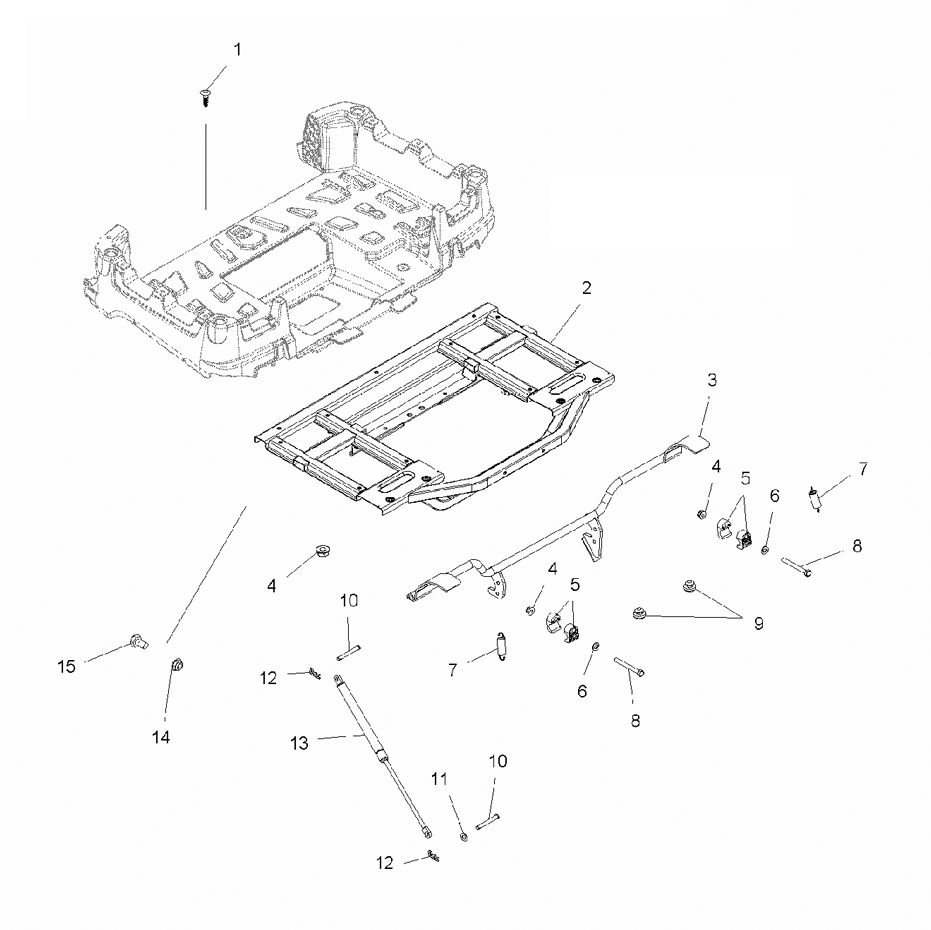

BOX FRAME W/LATCH для Polaris SPORTSMAN X2 700 EFI (TN68AX) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7518235 SCR-5/16-18X1.75 TX-M
    SCR-5/16-18X1.75 TX-M
  • 2
    1016170-067 WELD-BOX, FRAME, X2, BLACK
    WELD-BOX, FRAME, X2, BLACK
  • 3
    1015268-067 WELD-BOX LATCH, TREK, BLACK [BUILT 10/22/07 AND BEFORE]
    WELD-BOX LATCH, TREK, BLACK [BUILT 10/22/07 AND BEFORE]
  • 3
    1016394-067 WELD-BOX LATCH, TREK, BLACK [BUILT 10/23/07 AND AFTER]
    WELD-BOX LATCH, TREK, BLACK [BUILT 10/23/07 AND AFTER]
  • 4
    7592343 NUT
    NUT
  • 5
    5434226 BUSHING-BOX, LATCH
    BUSHING-BOX, LATCH
  • 6
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 7
    7041687 SPRING
    SPRING
  • 8
    7515346 SCREW
    SCREW
  • 9
    5412067 BUMPER-RUBBER
    BUMPER-RUBBER
  • 10
    7661163 PIN-CLEVIS 5/16X1 1/2
    PIN-CLEVIS 5/16X1 1/2
  • 11
    7556373 SPACER-.34 ID X .56 OD X .31
    SPACER-.34 ID X .56 OD X .31
  • 12
    7661644 PIN, HITCH
    PIN, HITCH
  • 13
    7041725 SHOCK, DUMP BOX
    SHOCK, DUMP BOX
  • 14
    7542449 NUT, FLANGE LOCK
    NUT, FLANGE LOCK
  • 15
    7512492 SCREW
    SCREW
