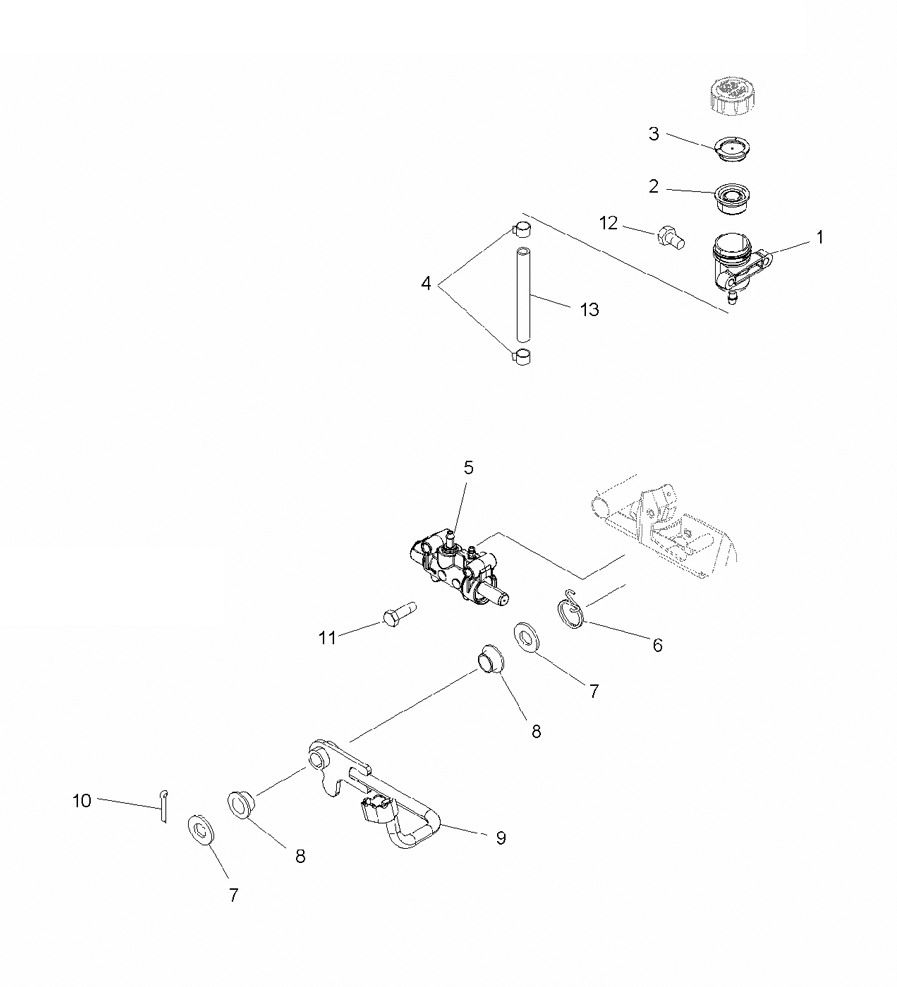

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris SPORTSMAN X2 700 EFI (TN68AX) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    1911224 ASM-RESERVOIR, BRAKE, TALL, 2-EAR [INCL. 2,3, CAP]
    ASM-RESERVOIR, BRAKE, TALL, 2-EAR [INCL. 2,3, CAP]
  • 2
    5413262 DIAPHRAGM-RESERVOIR, BRAKE
    DIAPHRAGM-RESERVOIR, BRAKE
  • 3
    5437041 RING-RESERVOIR, BRAKE
    RING-RESERVOIR, BRAKE
  • 4
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 5
    1911123 KIT-ASM, MASTER CYL, DIRMC, 3/4
    KIT-ASM, MASTER CYL, DIRMC, 3/4
  • 6
    7043276 SPRING-TORSION, BRAKE
    SPRING-TORSION, BRAKE
  • 7
    7555919 WASHER
    WASHER
  • 8
    5433189 BUSHING-PEDAL PIVOT
    BUSHING-PEDAL PIVOT
  • 9
    1910919-067 WELD-BRAKE ROD, BLACK
    WELD-BRAKE ROD, BLACK
  • 10
    7661401 PIN, COTTER
    PIN, COTTER
  • 11
    7512130 BOLT
    BOLT
  • 13
    1911267-635 HOSE-RESERVOIR, BRAKE, 635MM
    HOSE-RESERVOIR, BRAKE, 635MM
