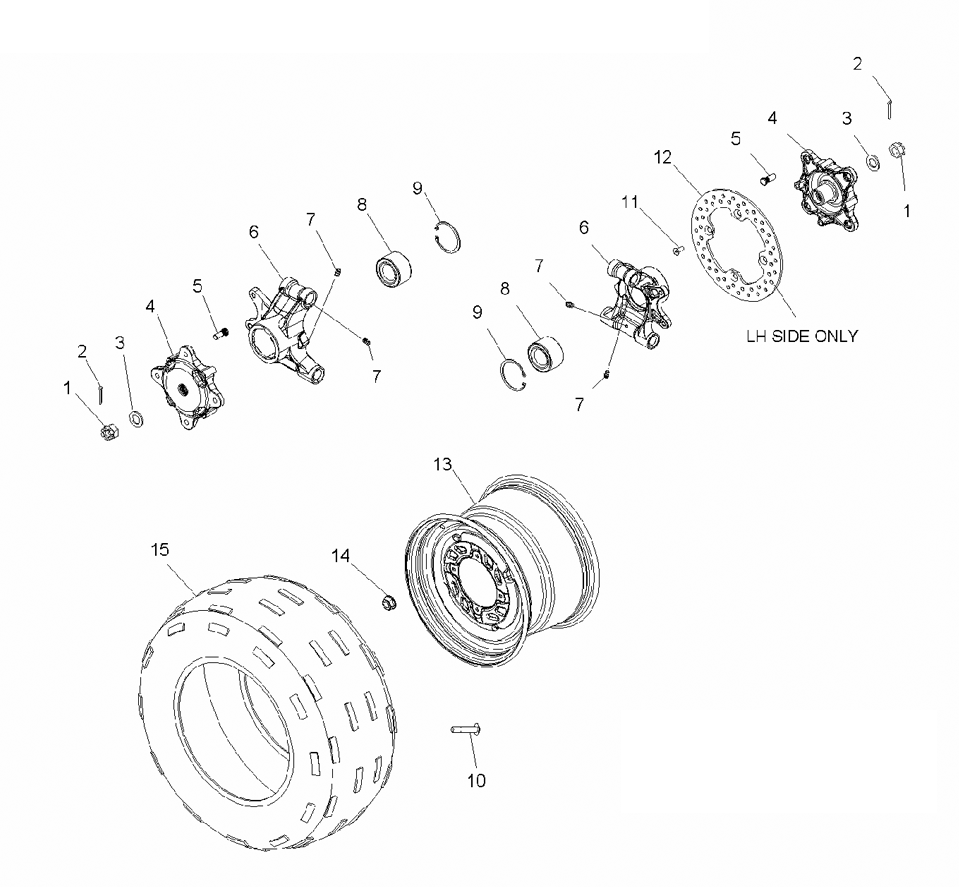

WHEEL - REAR для Polaris SPORTSMAN 400 HO 4X4 (LH46AX) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7547337 NUT-M18X1.5, CASTLE, ZINC/YELLOW
    NUT-M18X1.5, CASTLE, ZINC/YELLOW
  • 2
    7661404 PIN, COTTER
    PIN, COTTER
  • 3
    7555796 WASHER, CONE
    WASHER, CONE
  • 4
    5136296 HUB-WHEEL, FRONT, MACH, ZINC
    HUB-WHEEL, FRONT, MACH, ZINC
  • 5
    7515513 STUD
    STUD
  • 6
    5135671 CARRIER-BEARING, LEFT HAND, RR (MACH)
    CARRIER-BEARING, LEFT HAND, RR (MACH)
  • 7
    7080433 FITTING, LUBRICATION, THREADED
    FITTING, LUBRICATION, THREADED
  • 8
    3514342 BEARING-AXLE TUBE/HUBSTRUT [BUILT 9/16 AND BEFORE]
    BEARING-AXLE TUBE/HUBSTRUT [BUILT 9/16 AND BEFORE]
  • 8
    3514634 BEARING-WHEEL, 35X64X37MM [BUILT 9/17 AND AFTER]
    BEARING-WHEEL, 35X64X37MM [BUILT 9/17 AND AFTER]
  • 9
    7710507 RING, RET., 2.500 INTERNAL
    RING, RET., 2.500 INTERNAL
  • 10
    1525017 VALVE, RIM
    VALVE, RIM
  • 11
    7518451 BOLT-M8X1025X20, HSCOK, CSNK, PCH
    BOLT-M8X1025X20, HSCOK, CSNK, PCH
  • 12
    5248213 DISC-BRAKE, REAR
    DISC-BRAKE, REAR
  • 13
    1521182-067 WELD-RIM, REAR, 12X8.0, BLACK
    WELD-RIM, REAR, 12X8.0, BLACK
  • 14
    7547237 NUT-FLANGE, TWO PIECE, 3/8-24
    NUT-FLANGE, TWO PIECE, 3/8-24
  • 15
    5411936 TIRE, 24X11-12, TITAN
    TIRE, 24X11-12, TITAN
