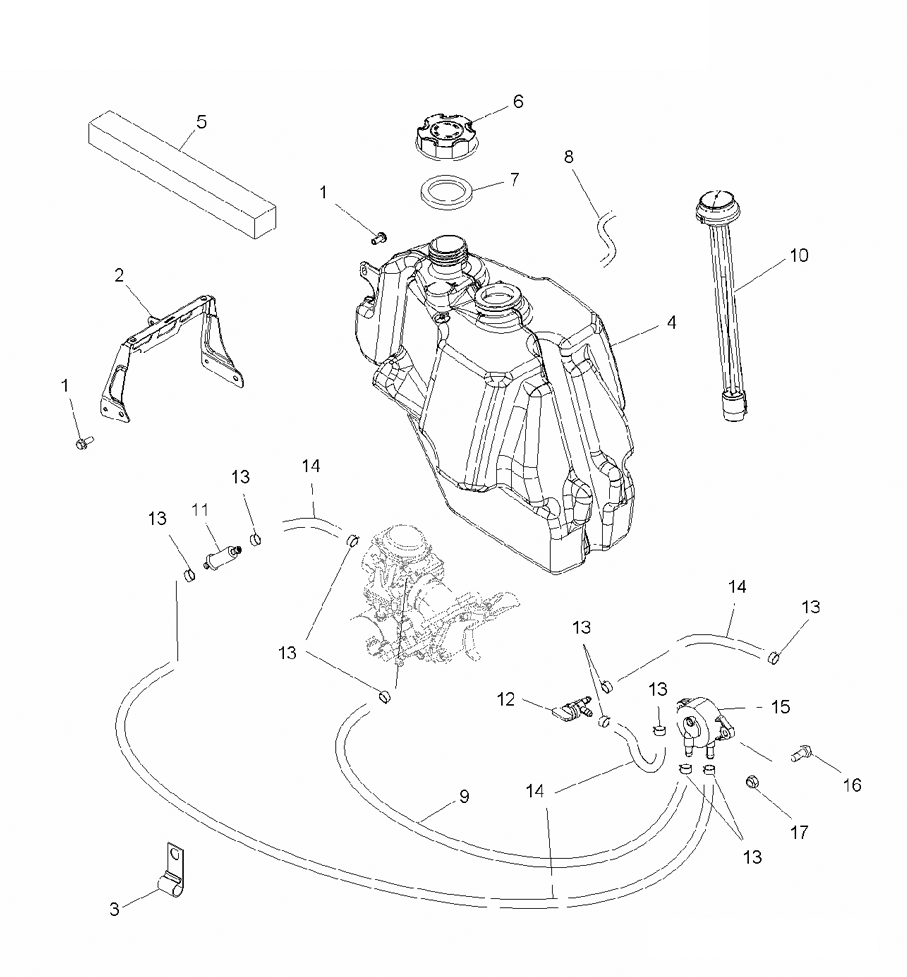

FUEL TANK для Polaris SPORTSMAN 400 HO 4X4 (LH46AX) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BL
    SCR-M6X1.0X20, HXHD, FLG, TDFM, BL
  • 2
    1016190-329 WELD-FUEL TANK BRACKET, E-COAT
    WELD-FUEL TANK BRACKET, E-COAT
  • 3
    7080884 CLIP, J
    CLIP, J
  • 4
    2520804 ASM-TANK, FUEL, 7 LAYER, GAUGE [INCL. GAUGE]
    ASM-TANK, FUEL, 7 LAYER, GAUGE [INCL. GAUGE]
  • 5
    5813277 FOAM-SEAL, 1.5X15
    FOAM-SEAL, 1.5X15
  • 6
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 7
    5812123 GASKET
    GASKET
  • 8
    8360009-600 LINE, FUEL, 1/8 ID (600 CM.)
    LINE, FUEL, 1/8 ID (600 CM.)
  • 9
    8450040-600 LINE, FUEL, 1/4 ID (600 CM.)
    LINE, FUEL, 1/4 ID (600 CM.)
  • 10
    3280491 GAUGE-FUEL, REMOTE
    GAUGE-FUEL, REMOTE
  • 11
    2530009 FILTER, SMALL, IN-LINE,
    FILTER, SMALL, IN-LINE,
  • 12
    7052249 VALVE-FUEL, PLASTIC 90°, 1/4HOSE
    VALVE-FUEL, PLASTIC 90°, 1/4HOSE
  • 13
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    8450117-250 FUEL HOSE-250 CM
    FUEL HOSE-250 CM
  • 15
    3089760 ASM-FUEL PUMP
    ASM-FUEL PUMP
  • 16
    7518533 BOLT-M6X1.0X20, HXHD, FLG, BLACK
    BOLT-M6X1.0X20, HXHD, FLG, BLACK
  • 17
    7547339 NUT-M6X1.0, FLG-NYLOC-OLIVE D
    NUT-M6X1.0, FLG-NYLOC-OLIVE D
