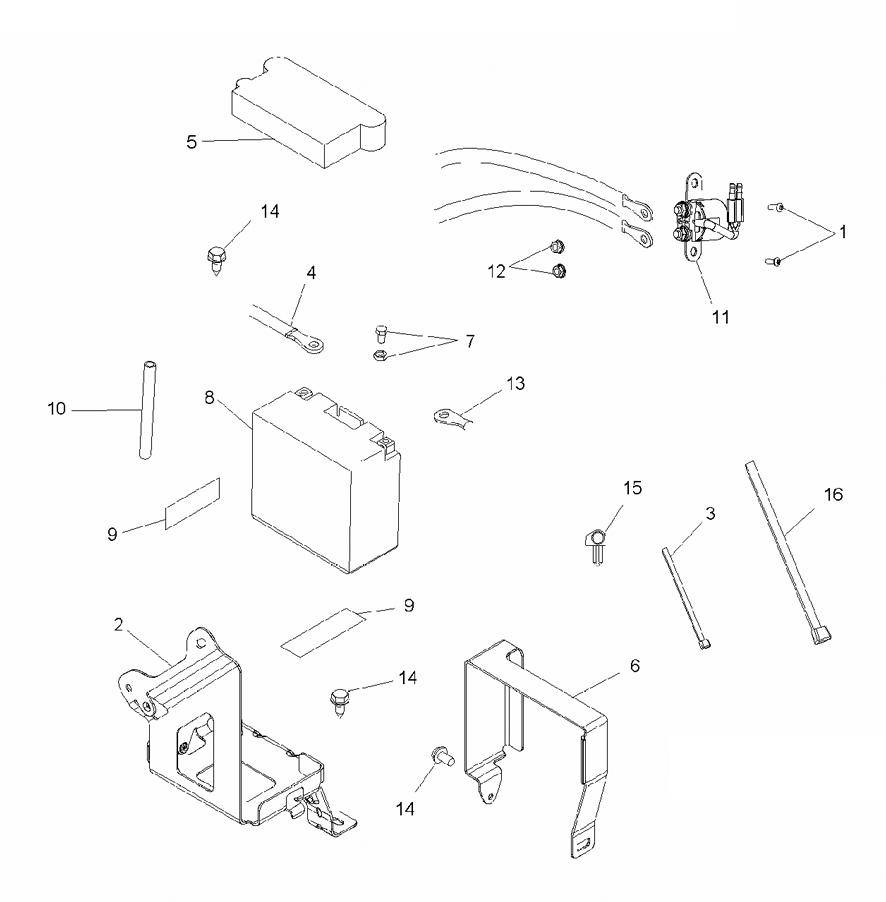

BATTERY для Polaris SPORTSMAN 400 HO 4X4 (LH46AX) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7512024 SCREW
    SCREW
  • 2
    5251289-329 BRKT-BATTERY, E-COAT
    BRKT-BATTERY, E-COAT
  • 3
    7080138 CABLE TIE
    CABLE TIE
  • 4
    4012133 CABLE-BATTERY, BLACK, 19''
    CABLE-BATTERY, BLACK, 19''
  • 5
    2633661 ASM-BATT COVER/FOAM
    ASM-BATT COVER/FOAM
  • 6
    5251295 BRKT-BATTERY STRAP
    BRKT-BATTERY STRAP
  • 7
    2200361 KIT-BATTERY BOLT (SHORT)
    KIT-BATTERY BOLT (SHORT)
  • 8
    4010905 BATTERY-14AH,SEALED,CHARGED
    BATTERY-14AH,SEALED,CHARGED
  • 9
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 10
    5433156 TUBE, BATTERY VENT, 88 CM
    TUBE, BATTERY VENT, 88 CM
  • 11
    4012013 SOLENOID-STARTER
    SOLENOID-STARTER
  • 12
    7547270 NUT-HXFLGHD, M6, SERRATED
    NUT-HXFLGHD, M6, SERRATED
  • 13
    4011147 CABLE-16.5'' BAT/SOLENOID, RED
    CABLE-16.5'' BAT/SOLENOID, RED
  • 14
    7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BL
    SCR-M6X1.0X20, HXHD, FLG, TDFM, BL
  • 15
    7670102 CLIP
    CLIP
  • 16
    7080492 CABLE TIE, 11 INCH
    CABLE TIE, 11 INCH
