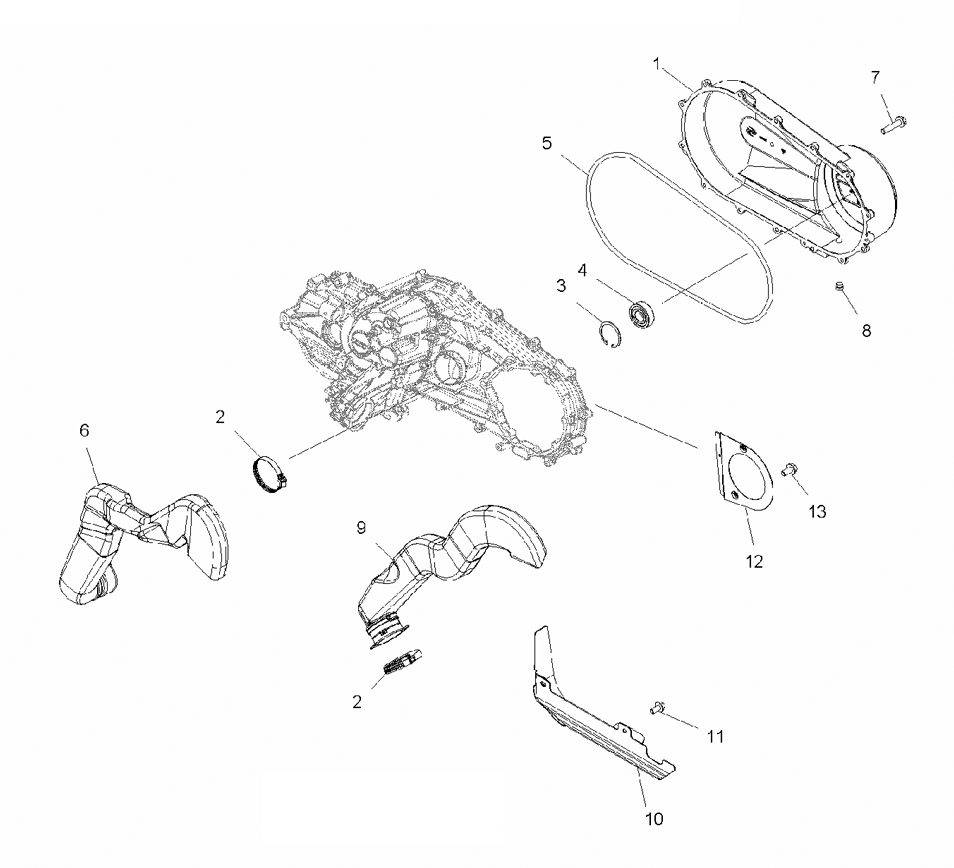

CLUTCH COVER для Polaris SPORTSMAN 400 HO 4X4 (LH46AQ) (CAMO) - 2008 года выпуска`
-
№АртикулНазвание
-
12633640 ASM-CLUTCH COVER [INCL. 3,4,8]ASM-CLUTCH COVER [INCL. 3,4,8]
-
27080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
33234344 RETAINING RING, INTERNAL 1.56RETAINING RING, INTERNAL 1.56
-
43234343 BEARING, BALL, 6203-2RSBEARING, BALL, 6203-2RS
-
55812952 SEAL-CLUTCH COVERSEAL-CLUTCH COVER
-
61322780 ASM-OUTLET DUCT W/BOOTASM-OUTLET DUCT W/BOOT
-
77516823 SCREWSCREW
-
83234345 PLUG, M14 X 1 X 9PLUG, M14 X 1 X 9
-
95437592 DUCT-INLET W/BOOTDUCT-INLET W/BOOT
-
105251409-329 PLATE-AIR DEFLECTOR, E-COATPLATE-AIR DEFLECTOR, E-COAT
-
117518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BLSCR-M6X1.0X20, HXHD, FLG, TDFM, BL
-
125252026-329 PLATEPLATE
