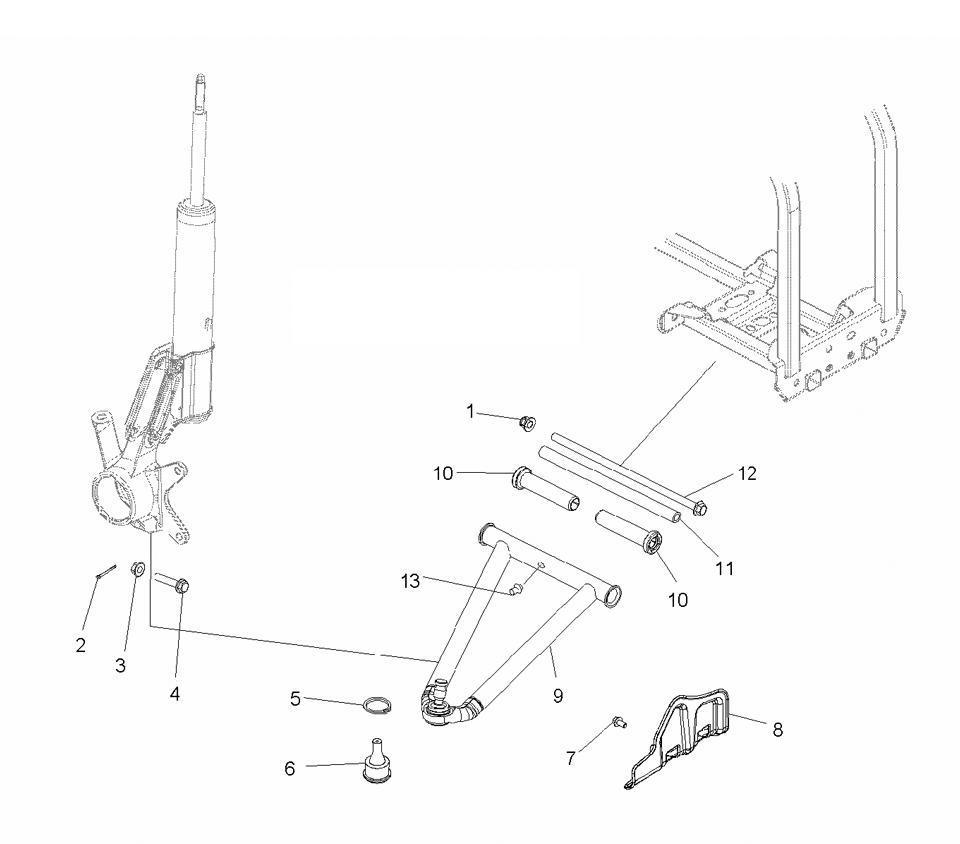

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris SPORTSMAN 400 HO 4X4 (LH46AQ) (CAMO) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7547313 NUT-M10X1.5, HXFLG, NYLON INS
    NUT-M10X1.5, HXFLG, NYLON INS
  • 2
    7661203 PIN, COTTER
    PIN, COTTER
  • 3
    7547317 NUT-M8X1.25, HXFLG, NYLON INS
    NUT-M8X1.25, HXFLG, NYLON INS
  • 4
    7518698 BOLT-M8X1.25X60, HXHDFLG
    BOLT-M8X1.25X60, HXHDFLG
  • 5
    7710533 RING-RETAINER, EXTERNAL, 1.188
    RING-RETAINER, EXTERNAL, 1.188
  • 6
    7081263 BALL-JOINT, 52 DEG, ATV
    BALL-JOINT, 52 DEG, ATV
  • 7
    7512084 SCREW
    SCREW
  • 8
    5436412-070 SHIELD-CV JOINT, RIGHT HAND, BLACK
    SHIELD-CV JOINT, RIGHT HAND, BLACK
  • 8
    5436411-070 SHIELD-CV JOINT, LEFT HAND, BLACK
    SHIELD-CV JOINT, LEFT HAND, BLACK
  • 9
    1542327-067 WELD-A-ARM, 4X4, LEFT HAND, BLACK
    WELD-A-ARM, 4X4, LEFT HAND, BLACK
  • 9
    1542328-067 WELD-A-ARM, 4X4, RIGHT HAND, BLACK
    WELD-A-ARM, 4X4, RIGHT HAND, BLACK
  • 10
    5436973 BUSHING-A-ARM, LONG, 102.36MM
    BUSHING-A-ARM, LONG, 102.36MM
  • 11
    5134926 TUBE-PIVOT, 248MM
    TUBE-PIVOT, 248MM
  • 12
    7518458 BOLT-M10X1.5X270, HXHDFLG
    BOLT-M10X1.5X270, HXHDFLG
  • 13
    7080433 FITTING, LUBRICATION, THREADED
    FITTING, LUBRICATION, THREADED
