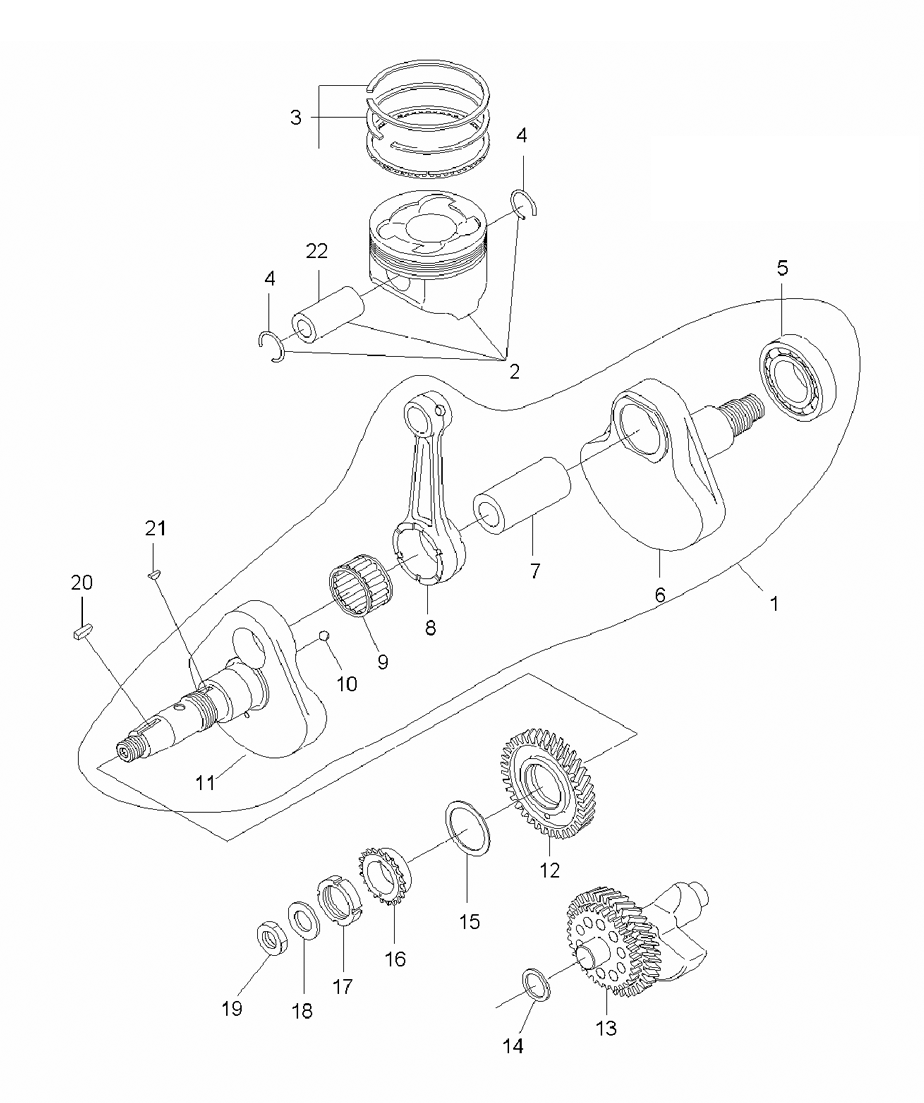

CRANKSHAFT W/ PISTON для Polaris SPORTSMAN 400 HO 4X4 (LH46AQ) (CAMO) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3090040 ASM-CRANKSHAFT [INCL. 5-12]
    ASM-CRANKSHAFT [INCL. 5-12]
  • 2
    3087230 SET, PISTON, STANDARD [INCL. PIN, CLIPS]
    SET, PISTON, STANDARD [INCL. PIN, CLIPS]
  • 2
    3087231 SET, PISTON, .010''/.25MM O/S [INCL. PIN, CLIPS]
    SET, PISTON, .010''/.25MM O/S [INCL. PIN, CLIPS]
  • 2
    3087232 SET, PISTON, .020''/.50MM O/S [INCL. PIN, CLIPS]
    SET, PISTON, .020''/.50MM O/S [INCL. PIN, CLIPS]
  • 3
    3087233 SET, PISTON, RING STANDARD [INCL. TOP, MID, BOTTOM RINGS]
    SET, PISTON, RING STANDARD [INCL. TOP, MID, BOTTOM RINGS]
  • 3
    3087234 SET, PISTON, RING .010''/.25MM O/S [INCL. TOP, MID, BOTTOM RINGS]
    SET, PISTON, RING .010''/.25MM O/S [INCL. TOP, MID, BOTTOM RINGS]
  • 3
    3087235 SET, PISTON, RING, .020''/.50MM O/S [INCL. TOP, MID, BOTTOM RINGS]
    SET, PISTON, RING, .020''/.50MM O/S [INCL. TOP, MID, BOTTOM RINGS]
  • 4
    3085534 CLIP
    CLIP
  • 5
    3090044 BEARING-BALL
    BEARING-BALL
  • 6
    3090042 CRANKSHAFT-2
    CRANKSHAFT-2
  • 7
    3090043 SLEEVE
    SLEEVE
  • 8
    3085813 ROD, CONNECTING
    ROD, CONNECTING
  • 9
    3085343 BEARING, LARGE END
    BEARING, LARGE END
  • 10
    3085024 BALL, STEEL
    BALL, STEEL
  • 11
    3090041 CRANKSHAFT-1
    CRANKSHAFT-1
  • 12
    3089245 BALANCE GEAR 1
    BALANCE GEAR 1
  • 13
    3090031 SHAFT-BALANCER, COMPLETE
    SHAFT-BALANCER, COMPLETE
  • 14
    3084895 SPACER, 0.8
    SPACER, 0.8
  • 14
    3084896 SPACER, 1.0
    SPACER, 1.0
  • 14
    3084897 SPACER, 1.2
    SPACER, 1.2
  • 15
    3240088 SPACER, 0.6
    SPACER, 0.6
  • 15
    3084892 SPACER, 0.8
    SPACER, 0.8
  • 15
    3084893 SPACER, 1.0
    SPACER, 1.0
  • 15
    3084894 SPACER, 1.2
    SPACER, 1.2
  • 16
    3084882 SPROCKET 1
    SPROCKET 1
  • 17
    3085528 NUT, SLIT
    NUT, SLIT
  • 18
    3086767 WASHER
    WASHER
  • 19
    3083905 NUT, LOCK
    NUT, LOCK
  • 20
    3081447 KEY
    KEY
  • 21
    3240168 KEY, WOODRUFF
    KEY, WOODRUFF
