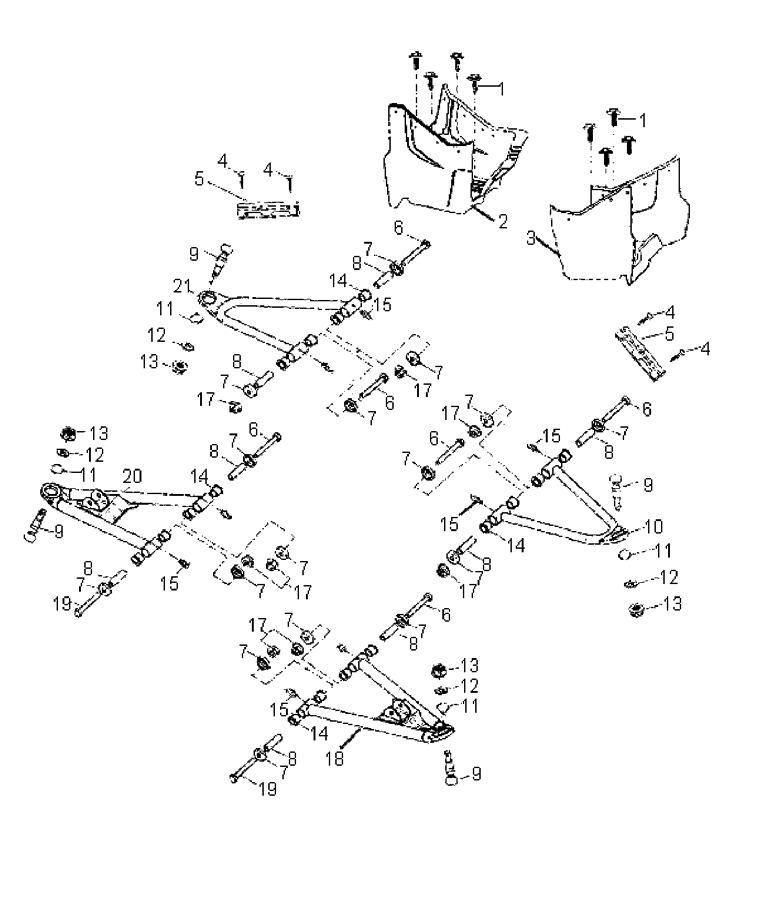

SUSPENSION - A-ARM W/FOOTREST для Polaris PHOENIX 200 (QUAD) (PB20EB) - 2008 года выпуска`
-
№АртикулНазвание
-
10452215 BOLT-HEXBOLT-HEX
-
20453106 FOOTWELL-RIGHT HANDFOOTWELL-RIGHT HAND
-
30453107 FOOTWELL-LEFT HANDFOOTWELL-LEFT HAND
-
40451703 SCREW, TAPPINGSCREW, TAPPING
-
50452997 RETAINER-BRAKE LINE, FRONTRETAINER-BRAKE LINE, FRONT
-
60452626 BOLT-HEX, M10X75BOLT-HEX, M10X75
-
70451762 CAP-RUBBERCAP-RUBBER
-
80452625 SPACER-TUBESPACER-TUBE
-
97081190 BALLJOINTBALLJOINT
-
100452624-385 A-ARM, UPPER, LEFT HAND, SILVERA-ARM, UPPER, LEFT HAND, SILVER
-
110453784 CLIP, CIRCLIP, CIR
-
120450286 WASHERWASHER
-
130453794 NUTNUT
-
140453683 BUSHING-A-ARM, OUTLAWBUSHING-A-ARM, OUTLAW
-
150450320 VALVE, GREASEVALVE, GREASE
-
170450249 NUT-FLANGENUT-FLANGE
-
180452622-385 A-ARM-LOWER, LEFT HAND, SILVERA-ARM-LOWER, LEFT HAND, SILVER
-
190451764 BOLT-HEX FLANGE, 10MMBOLT-HEX FLANGE, 10MM
-
200453990-385 A-ARM, LOWER, RIGHT HAND, SILVERA-ARM, LOWER, RIGHT HAND, SILVER
-
210453988-385 A-ARM, UPPER, RIGHT HAND, SILVERA-ARM, UPPER, RIGHT HAND, SILVER
