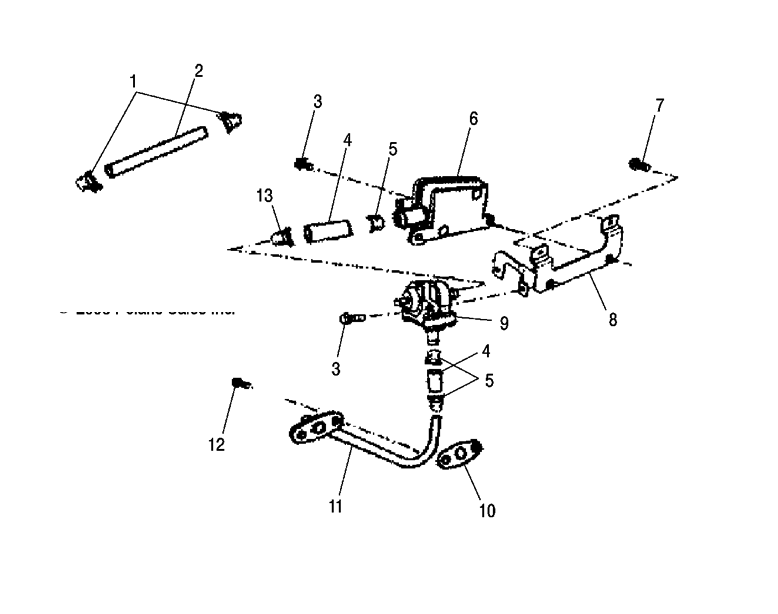

AIR INJECTION SYSTEM для Polaris PHOENIX 200 (QUAD) (PB20EB) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0452814 CLIP-HOSE, VACUUM
    CLIP-HOSE, VACUUM
  • 2
    0452815 HOSE-VACUUM, ENGINE
    HOSE-VACUUM, ENGINE
  • 3
    0450309 BOLT-HEX
    BOLT-HEX
  • 4
    0452813 HOSE-RUBBER
    HOSE-RUBBER
  • 5
    0452795 CLIP
    CLIP
  • 6
    0452811 ASM-VALVE, AIR INTAKE
    ASM-VALVE, AIR INTAKE
  • 7
    0452816 BOLT-FLANGE, HEX
    BOLT-FLANGE, HEX
  • 8
    0452812 BRKT-AIR, INTAKE
    BRKT-AIR, INTAKE
  • 9
    0452810 VALVE-INTAKE, DUAL
    VALVE-INTAKE, DUAL
  • 10
    0452808 GASKET-AIR INJECTION
    GASKET-AIR INJECTION
  • 11
    0452807 ASM-TUBE, AIR INJECTION
    ASM-TUBE, AIR INJECTION
  • 12
    0452413 BOLT-HEX, FLANGE
    BOLT-HEX, FLANGE
  • 13
    0453516 CLIP-OIL SEPARATOR
    CLIP-OIL SEPARATOR
