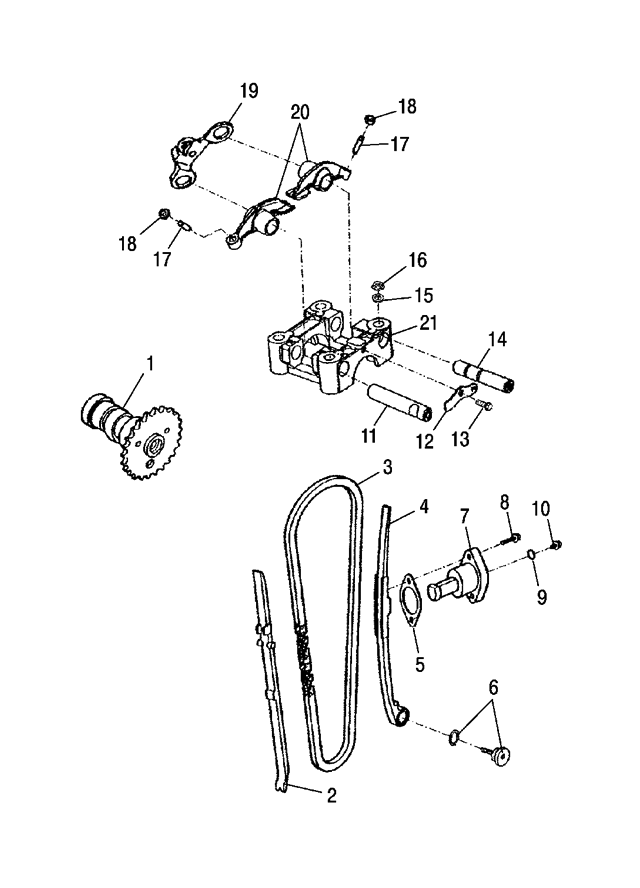

CAMSHAFT W/ VALVE ASSY. для Polaris PHOENIX 200 (QUAD) (PB20EB) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0452406 ASM-CAM SHAFT
    ASM-CAM SHAFT
  • 2
    0452419 GUIDE-CAM CHAIN, LEFT HAND
    GUIDE-CAM CHAIN, LEFT HAND
  • 3
    0452407 CHAIN-CAM
    CHAIN-CAM
  • 4
    0452415 GUIDE-CAM CHAIN, RIGHT HAND
    GUIDE-CAM CHAIN, RIGHT HAND
  • 5
    0452417 GASKET-TENSIONER
    GASKET-TENSIONER
  • 6
    0452418 PIVOT-GUIDE
    PIVOT-GUIDE
  • 7
    0452416 TENSIONER
    TENSIONER
  • 8
    0452420 BOLT-HEX, FLANGE
    BOLT-HEX, FLANGE
  • 9
    0452382 O-RING
    O-RING
  • 10
    0452421 SCREW
    SCREW
  • 11
    0452411 SHAFT-EXHAUST, ROCKER ARM
    SHAFT-EXHAUST, ROCKER ARM
  • 12
    0452412 PLATE-ROCKER ARM SHAFT
    PLATE-ROCKER ARM SHAFT
  • 13
    0452413 BOLT-HEX, FLANGE
    BOLT-HEX, FLANGE
  • 14
    0452410 SHAFT, INTAKE, ROCKER ARM
    SHAFT, INTAKE, ROCKER ARM
  • 15
    0452425 WASHER
    WASHER
  • 16
    0450268 NUT-FLANGE
    NUT-FLANGE
  • 17
    0452423 SCREW-TAPPET ADJ.
    SCREW-TAPPET ADJ.
  • 18
    0452424 NUT-TAPPET ADJ.
    NUT-TAPPET ADJ.
  • 19
    0452414 ASM-DECOMP. RELEASE
    ASM-DECOMP. RELEASE
  • 20
    0452409 ARM-VALVE, ROCKER
    ARM-VALVE, ROCKER
  • 21
    0452408 BRKT-CAM SHAFT
    BRKT-CAM SHAFT
