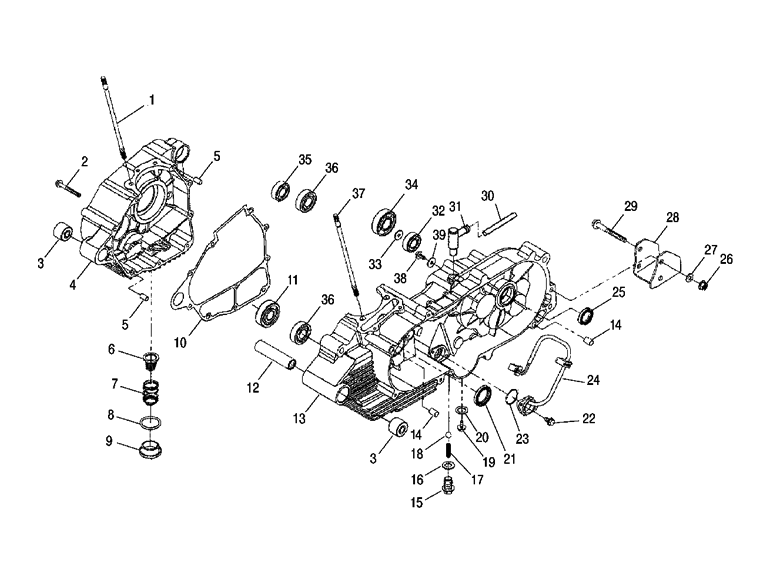

CRANKCASE для Polaris PHOENIX 200 (QUAD) (PB20EB) - 2008 года выпуска`
-
№АртикулНазвание
-
-0454113 CRANKCASE ASSY.CRANKCASE ASSY.
-
10452335 BOLT-STUDBOLT-STUD
-
20452344 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
30452319 BUSHING-RUBBERBUSHING-RUBBER
-
40452318 CASE-CRANK, RIGHT HANDCASE-CRANK, RIGHT HAND
-
50452342 PIN-DOWELPIN-DOWEL
-
60452369 SCREEN-OILSCREEN-OIL
-
70452370 SPRING-OIL SCREENSPRING-OIL SCREEN
-
80452371 O-RING, DRAIN PLUGO-RING, DRAIN PLUG
-
90452368 PLUG-DRAIN, OILPLUG-DRAIN, OIL
-
100452321 GASKET-CRANK CASEGASKET-CRANK CASE
-
110452345 BEARING-BALLBEARING-BALL
-
120452320 SPACER-COLLARSPACER-COLLAR
-
130452846 CASE-CRANK, LEFT HAND, QUADCASE-CRANK, LEFT HAND, QUAD
-
140450142 PIN-DOWELPIN-DOWEL
-
150452137 BOLT-HEXBOLT-HEX
-
160452136 WASHER-FLATWASHER-FLAT
-
170452135 SPRING-DETENT, 10KGSPRING-DETENT, 10KG
-
180452134 BALL-STEELBALL-STEEL
-
190452132 BOLT-HEX, WASHER FACEBOLT-HEX, WASHER FACE
-
200452133 WASHER-FLATWASHER-FLAT
-
210452341 SEAL-OILSEAL-OIL
-
220452138 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
230452129 O-RING-GEAR POSITION SENSORO-RING-GEAR POSITION SENSOR
-
240452329 SWITCH-CRANK CASESWITCH-CRANK CASE
-
250452340 SEAL-OILSEAL-OIL
-
260450268 NUT-FLANGENUT-FLANGE
-
270452325 WASHER-FLATWASHER-FLAT
-
280452323 BRKT-MOTOR MOUNTBRKT-MOTOR MOUNT
-
290452324 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
300452326 HOSE-VENT, GEARCASEHOSE-VENT, GEARCASE
-
310450054 CLIPCLIP
-
320452373 BEARING-NEEDLEBEARING-NEEDLE
-
330452374 WASHER-FLATWASHER-FLAT
-
340452349 BEARING-BALLBEARING-BALL
-
350452156 BEARING-MAIN TRNSMSN SHAFTBEARING-MAIN TRNSMSN SHAFT
-
360452348 BEARING-BALLBEARING-BALL
-
370452336 BOLT-STUDBOLT-STUD
-
380452330 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
390452337 WASHER-FLATWASHER-FLAT
