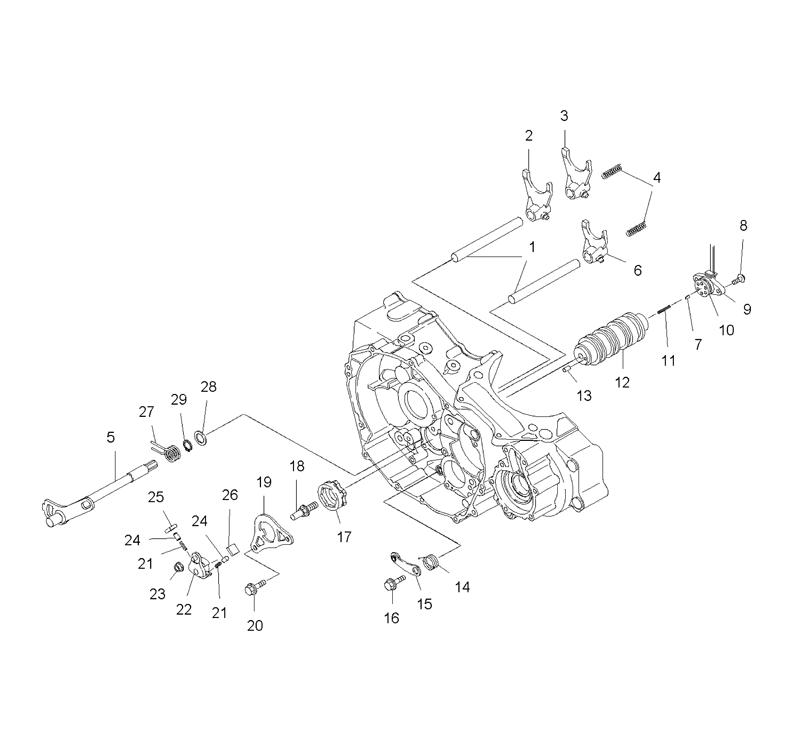

GEARCASE для Polaris OUTLAW 500 (A07GP50AA) (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
13089650 SHAFT,FORKSHAFT,FORK
-
23089645 FORK,SHIFT,RIGHTFORK,SHIFT,RIGHT
-
33089644 FORK,SHIFT,LEFTFORK,SHIFT,LEFT
-
43089662 SPRING,FORK SHAFTSPRING,FORK SHAFT
-
53089648 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
63089643 FORK,SHIFT,MAINFORK,SHIFT,MAIN
-
73088115 POINT,NEUTRALPOINT,NEUTRAL
-
83083783 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
93089647 SWITCH POSITION ASSYSWITCH POSITION ASSY
-
103088123 O-RINGO-RING
-
113088116 SPRING,POINTSPRING,POINT
-
123089787 SHIFT DRUM COMP.ES50PLE02-'05SHIFT DRUM COMP.ES50PLE02-'05
-
133088191 PIN,DOWELPIN,DOWEL
-
143089641 SPRING,STOPPERSPRING,STOPPER
-
153089640 ARM,STOPPER ASSUARM,STOPPER ASSU
-
163088117 BOLT,STOPPERBOLT,STOPPER
-
173089639 CAM,SHIFTCAM,SHIFT
-
183089642 PIN,SHIFTERPIN,SHIFTER
-
193089660 PLATE,GUIDEPLATE,GUIDE
-
203089661 BOLT,FLANGEBOLT,FLANGE
-
213089659 SPRING,PLUNGERSPRING,PLUNGER
-
223089654 SHIFTER,DRUMSHIFTER,DRUM
-
233089655 COLLAR,SHIFTERCOLLAR,SHIFTER
-
243089658 PLUNGER,PAWLPLUNGER,PAWL
-
253089656 PAWL A,RATCHERPAWL A,RATCHER
-
263089657 PAWL B,RATCHERPAWL B,RATCHER
-
273089649 SPRING,RETURNSPRING,RETURN
-
283089664 WASHERWASHER
-
293089663 RING,SNAPRING,SNAP
