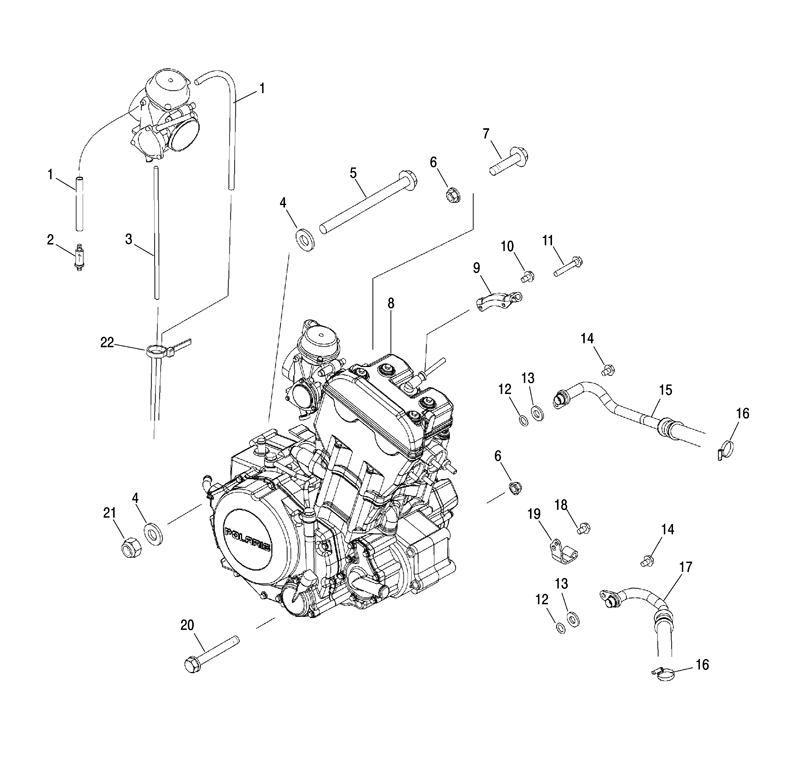

ENGINE - MOUNTING для Polaris OUTLAW 500 (A07GP50AA) (BLACK) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    8450003-1525 LINE,FUEL,1/4 ID(1525 CM.)
    LINE,FUEL,1/4 ID(1525 CM.)
  • 2
    2530009 FILTER,SMALL,IN-LINE,
    FILTER,SMALL,IN-LINE,
  • 3
    8360009-600 LINE,FUEL,1/8 ID,600 CM.
    LINE,FUEL,1/8 ID,600 CM.
  • 4
    7556264 WASHER-9/16,HARDENED
    WASHER-9/16,HARDENED
  • 5
    7518148 BOLT-SWING ARM,9/16
    BOLT-SWING ARM,9/16
  • 6
    7547333 NUT-M10X1.25,FLG,NYLOC-OLIVE D
    NUT-M10X1.25,FLG,NYLOC-OLIVE D
  • 7
    7518559 BOLT-M10X1.25X50,HXFLG-OLIVE D
    BOLT-M10X1.25X50,HXFLG-OLIVE D
  • 8
    3089963 ENGINE-SB,ES500PLE041 (SEE SERIES NOTE)
    ENGINE-SB,ES500PLE041 (SEE SERIES NOTE)
  • 9
    5248313 BRACKET MOUNT,CLUTCH CABLE
    BRACKET MOUNT,CLUTCH CABLE
  • 10
    7518647 BOLT
    BOLT
  • 11
    7518431 SCREW
    SCREW
  • 12
    5411356 O-RING
    O-RING
  • 13
    7556113 WASHER
    WASHER
  • 14
    7517915 SCREW
    SCREW
  • 15
    2520688 HOSE,OIL RETURN ASSY
    HOSE,OIL RETURN ASSY
  • 16
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    2520515 HOSE,OIL SUCTION ASSY
    HOSE,OIL SUCTION ASSY
  • 18
    7517653 SCREW
    SCREW
  • 19
    5248314 BRACKET-MOUNT,REVERSE CABLE
    BRACKET-MOUNT,REVERSE CABLE
  • 20
    7518566 BOLT
    BOLT
  • 21
    7547096 NUT
    NUT
  • 22
    7080138 CABLE TIE
    CABLE TIE
