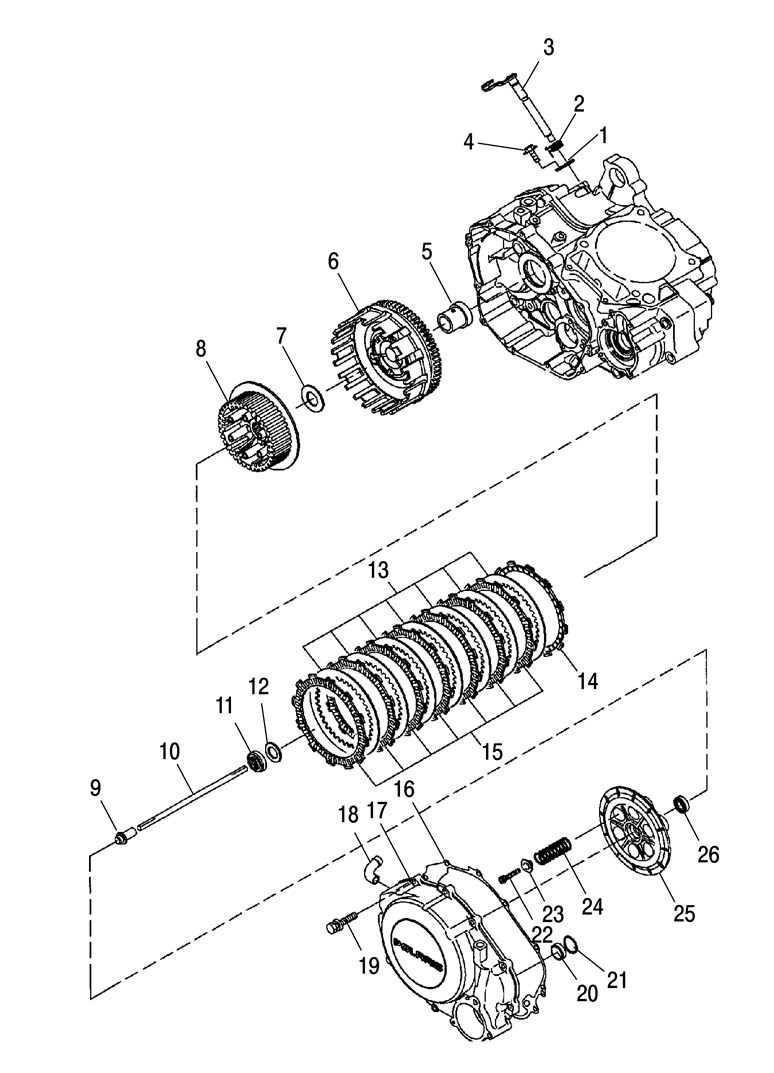

GEARCASE - CLUTCH для Polaris OUTLAW 500 (A07GP50AA) (BLACK) - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    3089616 CLUTCH ASSY,MULTI (INCLUDES 6 TO 8, 13 TO 22, 25, 26)
    CLUTCH ASSY,MULTI (INCLUDES 6 TO 8, 13 TO 22, 25, 26)
  • 1
    3089621 PLATE,RELEASE SHAFT
    PLATE,RELEASE SHAFT
  • 2
    3088079 SPRING,RELEASE
    SPRING,RELEASE
  • 3
    3088078 RELEASE SHAFT ASSY
    RELEASE SHAFT ASSY
  • 4
    3084877 BOLT,FLANGE
    BOLT,FLANGE
  • 5
    3089619 COLLAR,DISTANCE
    COLLAR,DISTANCE
  • 6
    3089617 CLUTCH ASSY,OUTER
    CLUTCH ASSY,OUTER
  • 7
    3088186 WASHER,THRUST
    WASHER,THRUST
  • 8
    3089886 CLUTCH-CENTER COMPL,ES50PLE04
    CLUTCH-CENTER COMPL,ES50PLE04
  • 9
    3088081 PUSHER
    PUSHER
  • 10
    3089620 ROD,PUSH
    ROD,PUSH
  • 11
    3086285 NUT,LOCK
    NUT,LOCK
  • 12
    3086286 WASHER-LOCK
    WASHER-LOCK
  • 13
    3088184 PLATE,CLUTCH
    PLATE,CLUTCH
  • 14
    3088185 DISK B,CLUTCH FRICTION
    DISK B,CLUTCH FRICTION
  • 15
    3089618 DISK A,CLUTCH FRICTION
    DISK A,CLUTCH FRICTION
  • 16
    3089615 GASKET,CLUTCH COVER
    GASKET,CLUTCH COVER
  • 17
    3089614 CLUTCH COVER ASSY (INCLUDES 18,20,21)
    CLUTCH COVER ASSY (INCLUDES 18,20,21)
  • 18
    3085850 PIPE ASSY
    PIPE ASSY
  • 19
    3084874 BOLT, FLANGE
    BOLT, FLANGE
  • 20
    3088072 CRANK,OIL SEAL
    CRANK,OIL SEAL
  • 21
    3088073 SNAP RING,INNER
    SNAP RING,INNER
  • 22
    3088175 BOLT
    BOLT
  • 23
    3088176 WASHER,CLUTCH SPRING
    WASHER,CLUTCH SPRING
  • 24
    3088177 SPRING,CLUTCH
    SPRING,CLUTCH
  • 25
    3088178 DISK,CLUTCH PRESSURE
    DISK,CLUTCH PRESSURE
  • 26
    3088179 BEARING,BALL
    BEARING,BALL
