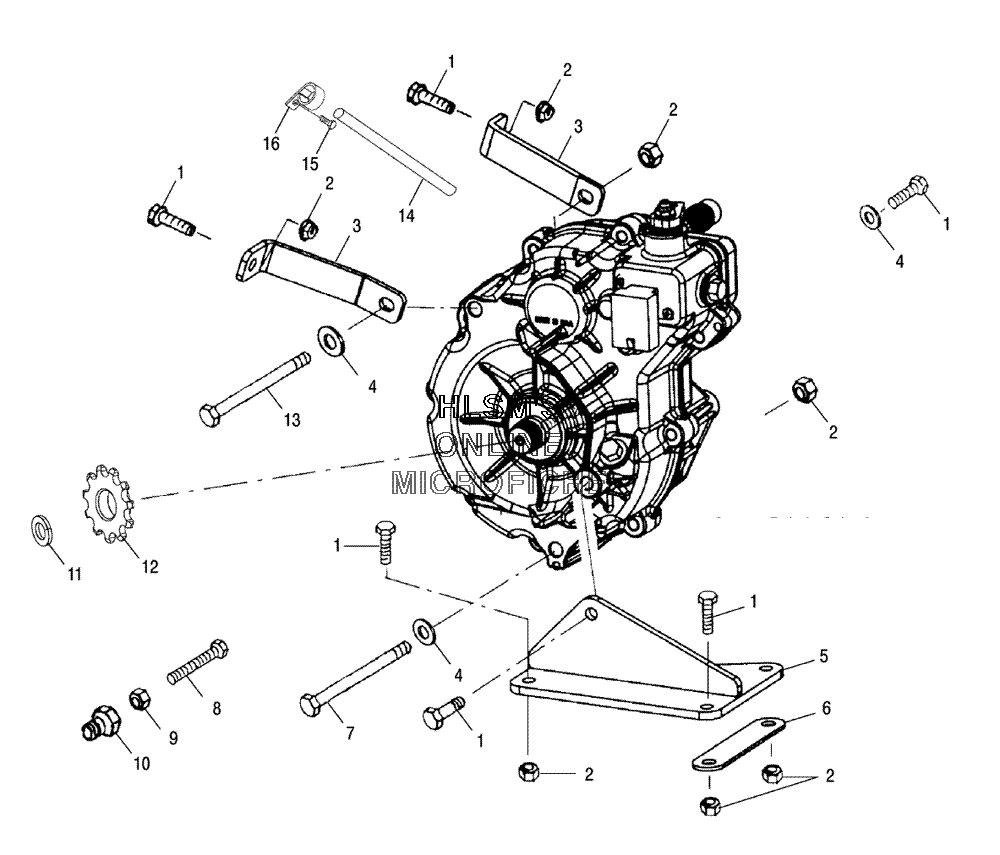

GEARCASE MOUNTING для Polaris TRAIL BOSS 330 QUADRICYCLE (A05CA32EA) - 2005 года выпуска`
-
№АртикулНазвание
-
17518364 BOLT HEXAGON FLANGE GR5 (3/8 16X7/8 )BOLT HEXAGON FLANGE GR5 (3/8 16X7/8 )
-
27547089 NUT FLANGE LOCK Y (3/8 16)NUT FLANGE LOCK Y (3/8 16)
-
35248185 BRACKET TRANSMISSION MOUNTBRACKET TRANSMISSION MOUNT
-
47555806 WASHER, FLATWASHER, FLAT
-
51012886-067 MOUNT, TRANSMISSION (BLACK)MOUNT, TRANSMISSION (BLACK)
-
65243296 SPACER, TRANSMISSION MOUNTSPACER, TRANSMISSION MOUNT
-
77517646 SCREWSCREW
-
87517631 SCREWSCREW
-
97542440 NUTNUT
-
117710434 RING, SNAPRING, SNAP
-
123221043 SPROCKET (11T)SPROCKET (11T)
-
137517640 SCREWSCREW
-
148450003-1525 LINE, FUEL (1/4 ID) (1525 CM.)LINE, FUEL (1/4 ID) (1525 CM.)
-
157512024 SCREWSCREW
-
167080693 CLAMP, HOSE NYLONCLAMP, HOSE NYLON
