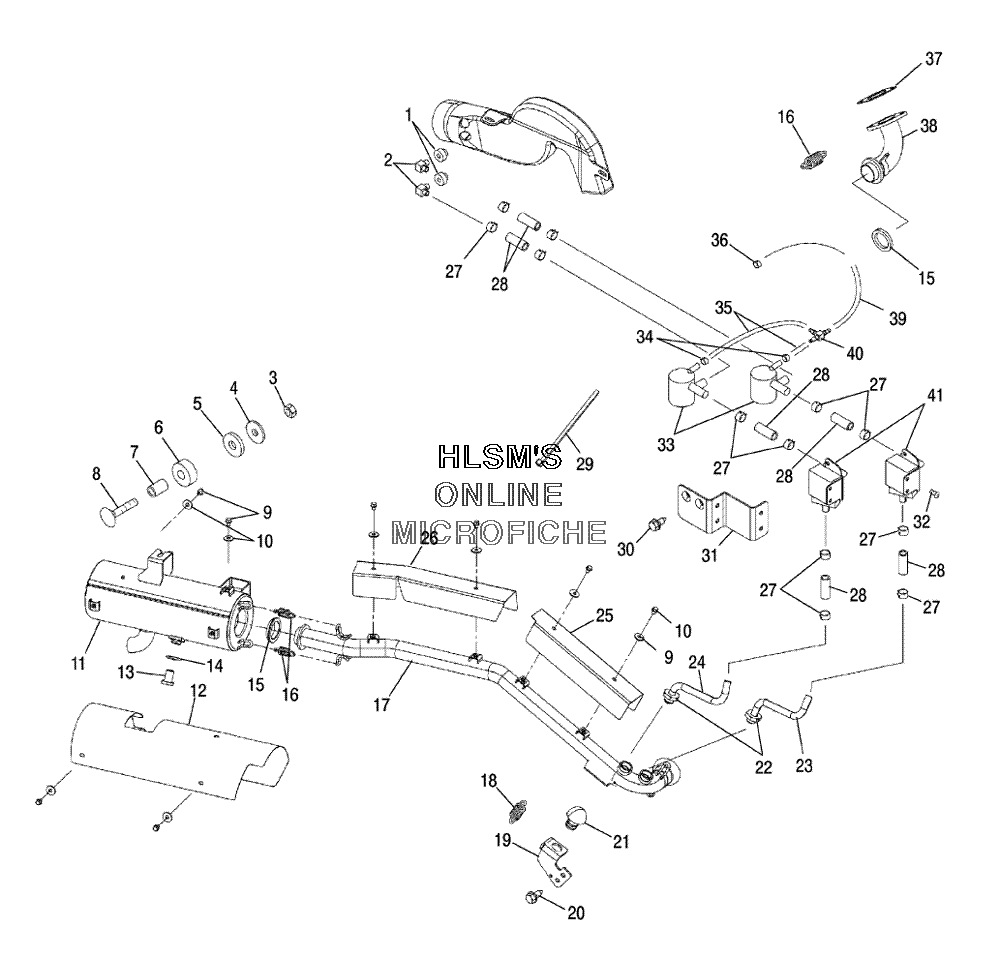

EXHAUST SYSTEM для Polaris TRAIL BOSS 330 QUADRICYCLE (A05CA32EA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    5412802 GROMMET 1/2" NITRILE
    GROMMET 1/2" NITRILE
  • 2
    7052383 FITTING 1/2", 90Ш ELBOW
    FITTING 1/2", 90Ш ELBOW
  • 3
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 4
    7555716 WASHER
    WASHER
  • 5
    5410436 WASHER, RUBBER
    WASHER, RUBBER
  • 6
    5412659 DAMPENER VIBRATION
    DAMPENER VIBRATION
  • 7
    5010192 BUSHING
    BUSHING
  • 8
    7515316 BOLT
    BOLT
  • 9
    7555935 WASHER
    WASHER
  • 10
    7515197 SCREW
    SCREW
  • 11
    1261518-029 WELD SILENCER (BLACK)
    WELD SILENCER (BLACK)
  • 12
    5249192-029 HEATSHIELD SILENCER (BLACK)
    HEATSHIELD SILENCER (BLACK)
  • 13
    7512666 BOLT
    BOLT
  • 14
    7556230 WASHER CLEAN OUT (51X.75X.09)
    WASHER CLEAN OUT (51X.75X.09)
  • 15
    5243517 SEAL, EXHAUST
    SEAL, EXHAUST
  • 16
    7041804 SPRING
    SPRING
  • 17
    1261527 WELD HEADPIPE, AIR INJECTION
    WELD HEADPIPE, AIR INJECTION
  • 18
    7041769 SPRING EXTENSION, 2.90" FREE LG
    SPRING EXTENSION, 2.90" FREE LG
  • 19
    5248301 BRACKET EXHAUST PIPE SUPPORT PLATED
    BRACKET EXHAUST PIPE SUPPORT PLATED
  • 20
    7512232 BOLT
    BOLT
  • 21
    5411576 DAMPENER VIBRATION, W/RIBS
    DAMPENER VIBRATION, W/RIBS
  • 22
    7547298 NUT FLARE 45INVERT (7/8 18) (5/8)
    NUT FLARE 45INVERT (7/8 18) (5/8)
  • 23
    1261476 SS TUBE ASSY, AIR INJECTION (FRONT)
    SS TUBE ASSY, AIR INJECTION (FRONT)
  • 24
    1261475 SS TUBE ASSY, AIR INJECTION (REAR)
    SS TUBE ASSY, AIR INJECTION (REAR)
  • 25
    5248889 SHIELD EXHAUST, HEAT (FRONT)
    SHIELD EXHAUST, HEAT (FRONT)
  • 26
    5249098 SHIELD HEADPIPE, HEAT MID
    SHIELD HEADPIPE, HEAT MID
  • 27
    7080810 CLAMP 3 TONG (.810 .970)
    CLAMP 3 TONG (.810 .970)
  • 28
    5412724-50 HOSE 1/2" HEATER, HI TEMP 50 CM
    HOSE 1/2" HEATER, HI TEMP 50 CM
  • 29
    7080492 CABLE TIE, 11 INCH
    CABLE TIE, 11 INCH
  • 30
    7512232 BOLT
    BOLT
  • 31
    5248890-067 BRACKET AIR VALVE MOUNT (BLACK)
    BRACKET AIR VALVE MOUNT (BLACK)
  • 32
    7511909 SCREW
    SCREW
  • 33
    2520457 FILTER AIR VALVE
    FILTER AIR VALVE
  • 34
    7081265 CLAMP (5/16" ID)
    CLAMP (5/16" ID)
  • 35
    8450061-600 LINE, FUEL (3MMX7MM)
    LINE, FUEL (3MMX7MM)
  • 36
    7080603 CLAMP
    CLAMP
  • 37
    3085075 GASKET
    GASKET
  • 38
    1261490 WELD MANIFOLD
    WELD MANIFOLD
  • 39
    8450037 FUEL LINE (3/16 ID) (600CM)
    FUEL LINE (3/16 ID) (600CM)
  • 40
    7052386 FITTING T (3/16X1/8X3/16)
    FITTING T (3/16X1/8X3/16)
  • 41
    1261439 AIR VALVE, CAT ASSY
    AIR VALVE, CAT ASSY
