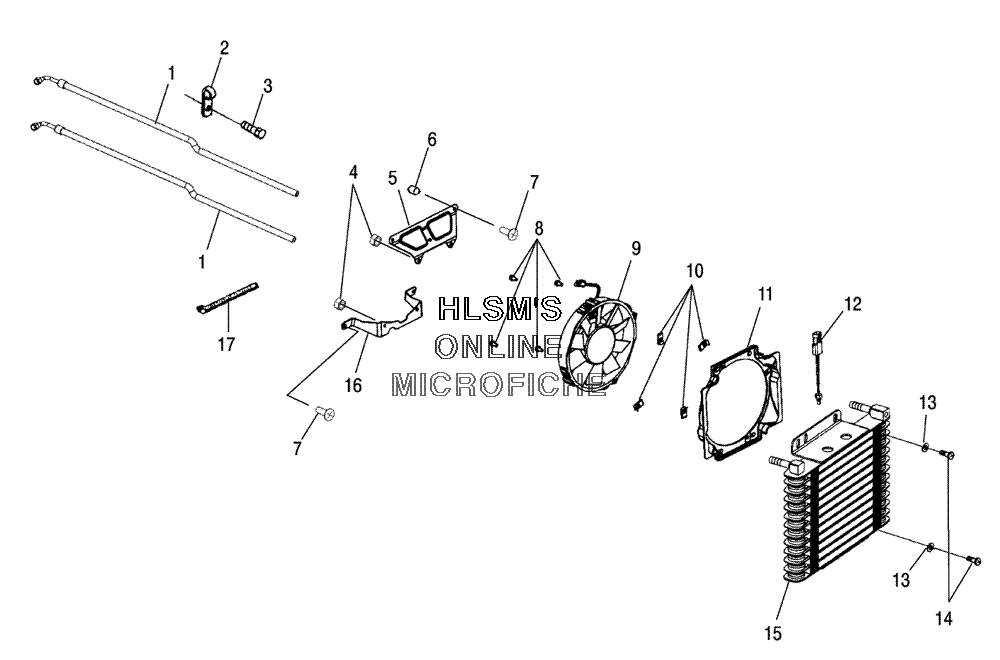

OIL COOLING SYSTEM для Polaris TRAIL BOSS 330 QUADRICYCLE (A05CA32EA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    5412355 HOSE COOLER, THREADED 90Ш
    HOSE COOLER, THREADED 90Ш
  • 2
    7080851 CLAMP HOSE, 1.312 VINYL COATED
    CLAMP HOSE, 1.312 VINYL COATED
  • 3
    7512084 SCREW
    SCREW
  • 4
    7542122 NUT NYLOK
    NUT NYLOK
  • 5
    5245416-067 BRACKET OIL COOLER, TOP (BLACK)
    BRACKET OIL COOLER, TOP (BLACK)
  • 6
    7547069 NUTSERT, HEXAGON
    NUTSERT, HEXAGON
  • 7
    7512232 BOLT
    BOLT
  • 8
    7517659 SCREW
    SCREW
  • 9
    2410534 FAN MOTOR ASSY
    FAN MOTOR ASSY
  • 10
    7670111 CLIP, U
    CLIP, U
  • 11
    5433353 SHROUD, FAN
    SHROUD, FAN
  • 12
    4010934 THERMISTER
    THERMISTER
  • 13
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 14
    7512163 BOLT
    BOLT
  • 15
    1240204 COOLER OIL (INCL. 8 12)
    COOLER OIL (INCL. 8 12)
  • 15
    1240191 COOLER OIL
    COOLER OIL
  • 16
    5248139 BRACKET (LOWER)
    BRACKET (LOWER)
  • 17
    7080492 CABLE, TIE 11:
    CABLE, TIE 11:
