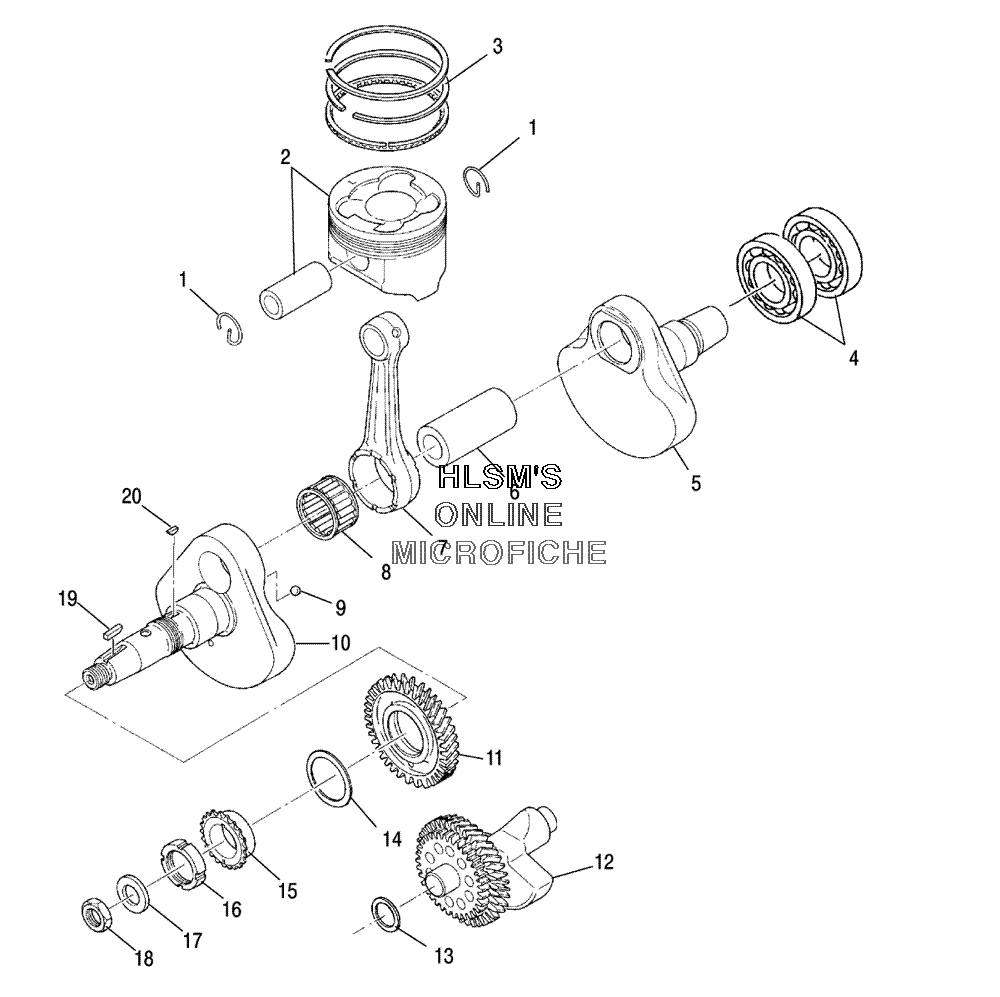

CRANKSHAFT W/ PISTON для Polaris SCRAMBLER 500 4X4 (A05BG50AA) - 2005 года выпуска`
-
№АртикулНазвание
-
13085534 CLIPCLIP
-
23087221 SET PISTON (STANDARD) (INCL. 1)SET PISTON (STANDARD) (INCL. 1)
-
23087222 SET PISTON (.010/.25MM O/S) (INCL. 1)SET PISTON (.010/.25MM O/S) (INCL. 1)
-
23087223 SET PISTON (.020/.50MM O/S) (INCL. 1)SET PISTON (.020/.50MM O/S) (INCL. 1)
-
33087224 SET PISTON RING (STANDARD)SET PISTON RING (STANDARD)
-
33087225 SET PISTON RING (.010/.25MM O/S)SET PISTON RING (.010/.25MM O/S)
-
33087226 SET PISTON RING (.020/.50MM O/S)SET PISTON RING (.020/.50MM O/S)
-
43085815 BEARING BALLBEARING BALL
-
53085812 CRANKSHAFTCRANKSHAFT
-
63087090 PIN CRANKPIN CRANK
-
73085813 ROD CONNECTINGROD CONNECTING
-
83085343 BEARING LARGE ENDBEARING LARGE END
-
93085024 BALL STEELBALL STEEL
-
103089570 CRANKSHAFT ASSY (INCL. 4-11)CRANKSHAFT ASSY (INCL. 4-11)
-
103089678 CRANKSHAFTCRANKSHAFT
-
113089245 BALANCE GEARBALANCE GEAR
-
123086837 SHAFT BALANCERSHAFT BALANCER
-
133084895 SPACER (0.8)SPACER (0.8)
-
133084896 SPACER (1.0)SPACER (1.0)
-
133084897 SPACER (1.2)SPACER (1.2)
-
143240088 SPACER (0.6)SPACER (0.6)
-
143084892 SPACER (0.8)SPACER (0.8)
-
143084893 SPACER (1.0)SPACER (1.0)
-
143084894 SPACER (1.2)SPACER (1.2)
-
153084882 SPROCKETSPROCKET
-
163085528 NUT SLITNUT SLIT
-
173086767 WASHERWASHER
-
183083905 NUT LOCKNUT LOCK
-
193081447 KEYKEY
-
203240168 KEY, WOODRUFFKEY, WOODRUFF
