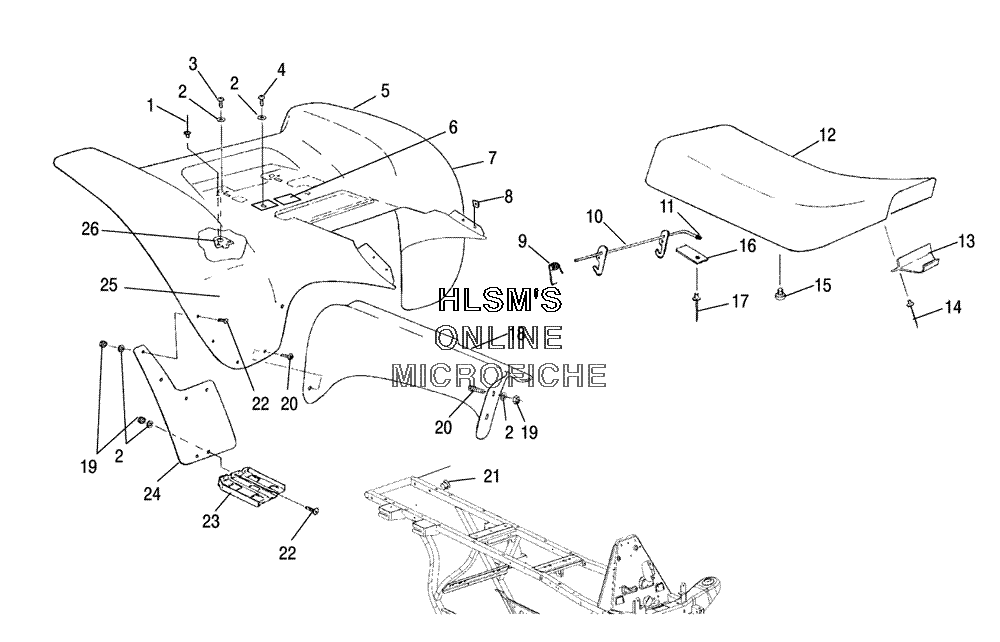

FENDER - REAR W/ SEAT для Polaris SCRAMBLER 500 4X4 (A05BG50AA) - 2005 года выпуска
-
№АртикулНазвание
-
17621472 RIVETRIVET
-
27555859 WASHER FLATWASHER FLAT
-
37512232 BOLTBOLT
-
47512242 SCREWSCREW
-
55810991 FOIL SMALLFOIL SMALL
-
67079902 DECAL CARBURETOR/FILTER INFODECAL CARBURETOR/FILTER INFO
-
75430007-177 CAB (REAR/BLACK)CAB (REAR/BLACK)
-
87670057 NUT SPEEDNUT SPEED
-
97041607 SPRING LATCH LIGHTSPRING LATCH LIGHT
-
101040412 LATCH SEATBACKLATCH SEATBACK
-
115411392 CAP SEATLATCHCAP SEATLATCH
-
122683329-070 SEAT W/WHITE POLARIS ASSY (BLACK)SEAT W/WHITE POLARIS ASSY (BLACK)
-
122683328-070 COVER SEAT (BLACK)COVER SEAT (BLACK)
-
135431986 TONGUE SEATTONGUE SEAT
-
147621479 RIVETRIVET
-
155412067 BUMPER RUBBERBUMPER RUBBER
-
165211033 BRACKET LEVER RETAINERBRACKET LEVER RETAINER
-
177621403 BLIND RIVETBLIND RIVET
-
182632280 SHIELD MUFFLER FOIL ASSYSHIELD MUFFLER FOIL ASSY
-
185811230 FOILFOIL
-
197542122 NUT NYLOKNUT NYLOK
-
207517264 SCREWSCREW
-
215432831 PLUG ENDCAP RIBBEDPLUG ENDCAP RIBBED
-
227512282 BOLT BLACKBOLT BLACK
-
245812134 MUDFLAP (REAR/LEFT)MUDFLAP (REAR/LEFT)
-
245812543 MUDFLAP (REAR/RIGHT)MUDFLAP (REAR/RIGHT)
-
255810957 FOILFOIL
-
265220880 BRACKET, HOLDDOWN (REAR)BRACKET, HOLDDOWN (REAR)
