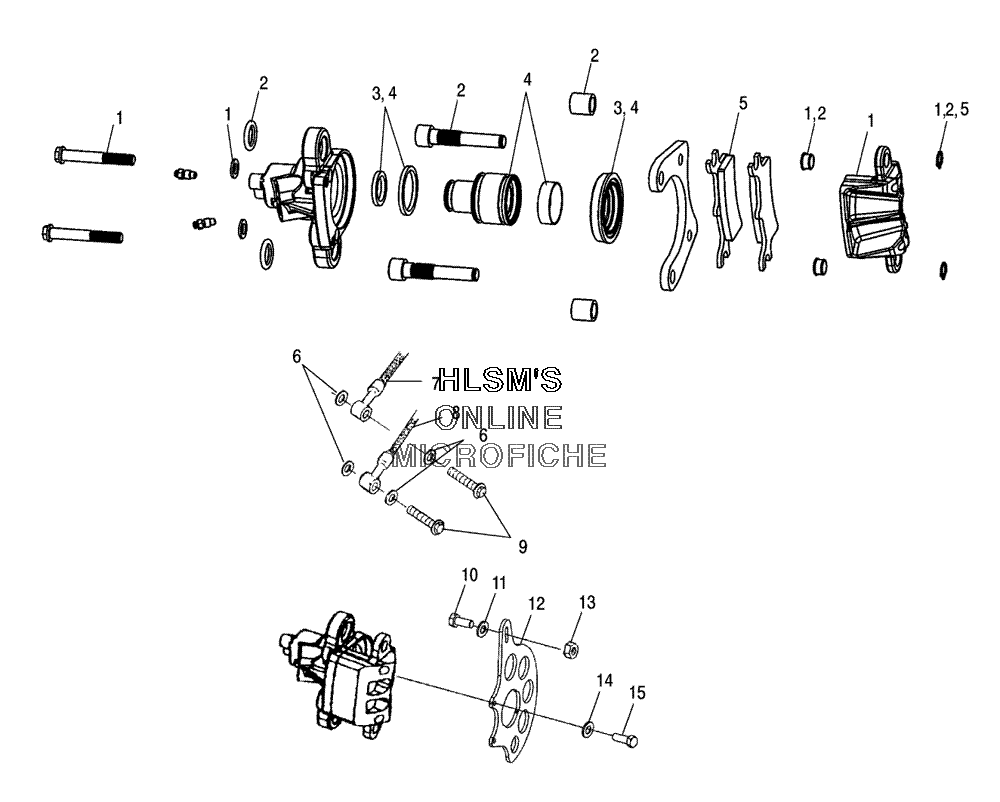

BRAKE - REAR CALIPER для Polaris SCRAMBLER 500 4X4 (A05BG50AA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    2201873 ANVIL BODY KIT
    ANVIL BODY KIT
  • 2
    2201870 SLIDE BOLT KIT
    SLIDE BOLT KIT
  • 3
    2201872 SEAL KIT
    SEAL KIT
  • 4
    2201869 PISTON SEAL KIT
    PISTON SEAL KIT
  • 5
    2202414 KIT BRAKE PAD ASSY
    KIT BRAKE PAD ASSY
  • 6
    5410988 SEAL
    SEAL
  • 7
    1910770 LINE BRAKE JB TO REAR CDS
    LINE BRAKE JB TO REAR CDS
  • 8
    1910769 LINE BRAKE FRONT MASTER CYLINDER TO REAR CDS
    LINE BRAKE FRONT MASTER CYLINDER TO REAR CDS
  • 9
    1910499 BOLT BANJO
    BOLT BANJO
  • 10
    7515102 SCREW
    SCREW
  • 11
    7555883 WASHER
    WASHER
  • 12
    5247210-067 MOUNT CALIPER (BLACK)
    MOUNT CALIPER (BLACK)
  • 13
    7547066 NUT NYLOCK
    NUT NYLOCK
  • 14
    7552901 WASHER SPRING LOCK
    WASHER SPRING LOCK
  • 15
    7515335 BOLT
    BOLT
  • 15
    1910806 CALIPER, ASSY W/INS PD (REAR) (INCL. 1-5)
    CALIPER, ASSY W/INS PD (REAR) (INCL. 1-5)
