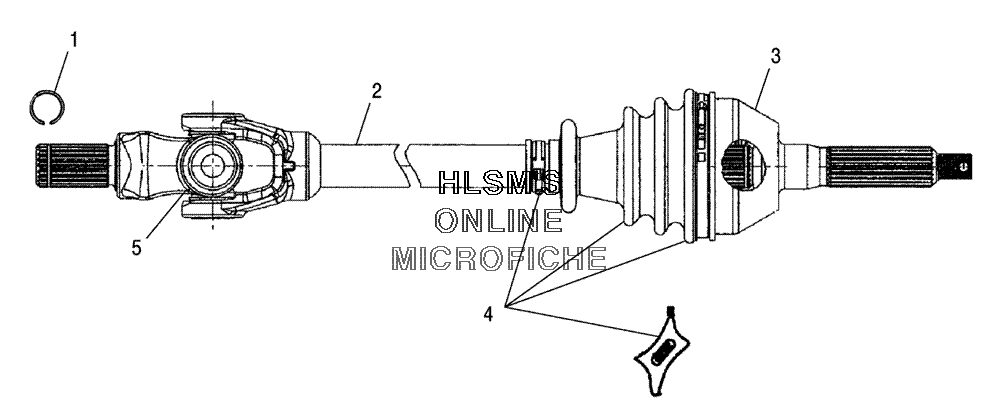

DRIVESHAFT - FRONT для Polaris SPORTSMAN 700 (A04CH68AT) (N.B.U. SUB. CAMO) - 2004 года выпуска`
-
№АртикулНазвание
-
221380218 ASM-DRIVE SHAFT,FRONTASM-DRIVE SHAFT,FRONT
-
17670092 CIRCLIP,DRIVESHAFT,NEAPCOCIRCLIP,DRIVESHAFT,NEAPCO
-
21380222 SHAFT-DRIVE,SERV,NEAPCO (INCL. 5)SHAFT-DRIVE,SERV,NEAPCO (INCL. 5)
-
31590358 JOINT-CV,SERV. NEAPCOJOINT-CV,SERV. NEAPCO
-
42201015 KIT,BOOT REPLACEMENT (INCL. CLAMPS AND GREASE)KIT,BOOT REPLACEMENT (INCL. CLAMPS AND GREASE)
-
52202015 KIT,CROSS & BEARING,NONGREASEKIT,CROSS & BEARING,NONGREASE
