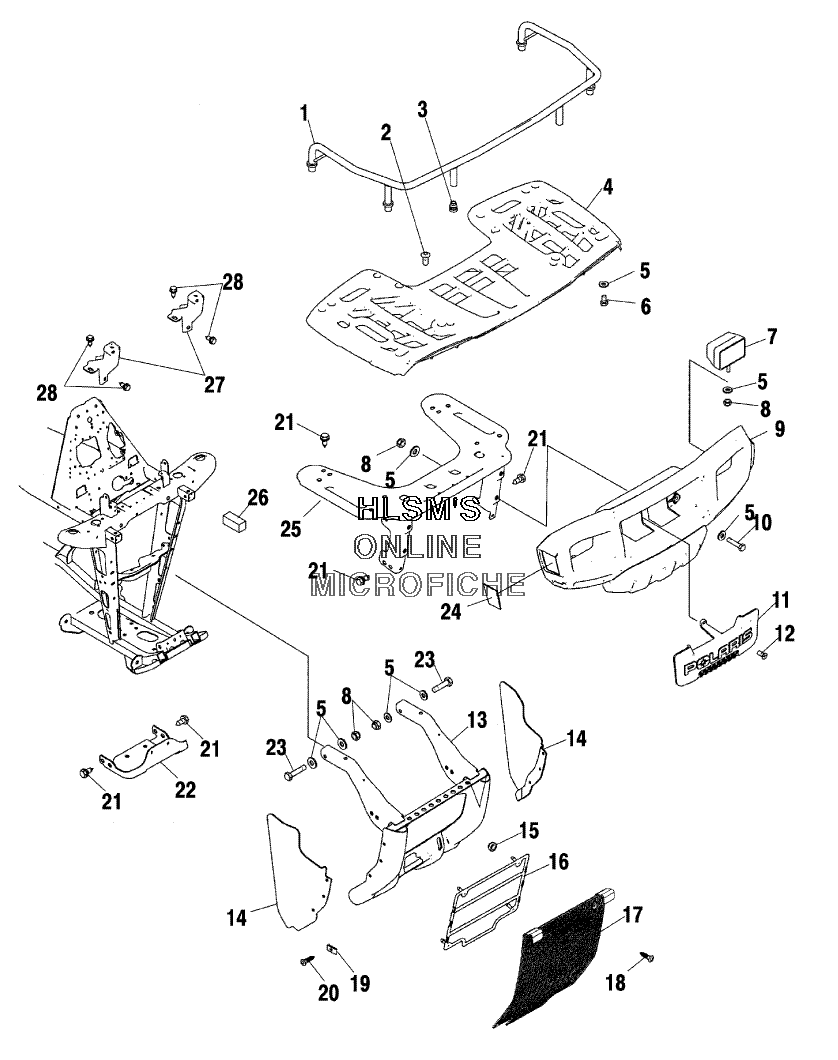

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 700 (A04CH68AT) (N.B.U. SUB. CAMO) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1013972-067 SUBSTITUTED BY 2874944-067 (AC)
    SUBSTITUTED BY 2874944-067 (AC)
  • 1
    1013972-418 WELD-FR.RACK.EXT.BLK-KRINKL (AT) (AV)
    WELD-FR.RACK.EXT.BLK-KRINKL (AT) (AV)
  • 2
    7517685 SCREW (10)
    SCREW (10)
  • 3
    7081085 PLUG-BARBED,.625
    PLUG-BARBED,.625
  • 4
    5434697-070 SUBSTITUTED BY 5435240-070 (IF BUILT BEFORE 2/03/03)
    SUBSTITUTED BY 5435240-070 (IF BUILT BEFORE 2/03/03)
  • 4
    5435240-070 RACK-FRONT,GEN VI,BLK (IF BUILT AFTER 2/03/03)
    RACK-FRONT,GEN VI,BLK (IF BUILT AFTER 2/03/03)
  • 5
    7558402 WASHER,FLAT (10)
    WASHER,FLAT (10)
  • 6
    7517208 SCREW (10)
    SCREW (10)
  • 7
    2431017 H/L ASM,27W,BOTT.MT.
    H/L ASM,27W,BOTT.MT.
  • 7
    4030059 BULB,H/L,27W.HOBBS
    BULB,H/L,27W.HOBBS
  • 8
    7542324 NUT,NYLOK (10)
    NUT,NYLOK (10)
  • 9
    2632757-070 ASM-FRONT BUMPER,BLK (INCL. WARNING DECAL)
    ASM-FRONT BUMPER,BLK (INCL. WARNING DECAL)
  • 10
    7515306 SUBSTITUTED BY 7515352
    SUBSTITUTED BY 7515352
  • 11
    5434699-070 PANEL-BUMPER,FRONT,BLK
    PANEL-BUMPER,FRONT,BLK
  • 12
    7512094 SCREW (10)
    SCREW (10)
  • 13
    1014412-067 WELD-GUARD,BRUSH BLACK
    WELD-GUARD,BRUSH BLACK
  • 14
    5434314 SHIELD-RADIATOR,SIDE,LH
    SHIELD-RADIATOR,SIDE,LH
  • 14
    5434315 SHIELD-RADIATOR,SIDE,RH
    SHIELD-RADIATOR,SIDE,RH
  • 15
    5412504 GROMMET-RUBBER,MOUNT,25"
    GROMMET-RUBBER,MOUNT,25"
  • 16
    5435046 COVER-RADIATOR,MESH,LG
    COVER-RADIATOR,MESH,LG
  • 17
    5247507-067 GRILL-BRUSH GUARD,BLK
    GRILL-BRUSH GUARD,BLK
  • 18
    7518046 SCR-#8X1 PN-PH H/L-Y
    SCR-#8X1 PN-PH H/L-Y
  • 19
    7670094 NUT
    NUT
  • 20
    7512097 SCREW (10)
    SCREW (10)
  • 21
    7515399 SCREW (10)
    SCREW (10)
  • 22
    5245767-067 BUMPER-BRKT,LOWER,BLK
    BUMPER-BRKT,LOWER,BLK
  • 23
    7512329 BOLT
    BOLT
  • 24
    7171474 DECAL-AMBER,REFLECTOR,LH
    DECAL-AMBER,REFLECTOR,LH
  • 24
    7171475 DECAL-AMBER,REFLECTOR,RH
    DECAL-AMBER,REFLECTOR,RH
  • 25
    1014020-067 WELD-SUPPORT RACK,FRONT,BLK
    WELD-SUPPORT RACK,FRONT,BLK
  • 26
    5810467 PLUG, FRAME
    PLUG, FRAME
  • 27
    1014261-067 WELD-SUPPORT RACK,FRONT,LH,BLK
    WELD-SUPPORT RACK,FRONT,LH,BLK
  • 27
    1014262-067 WELD-SUPPORT RACK,FRONT,RH,BLK
    WELD-SUPPORT RACK,FRONT,RH,BLK
  • 28
    7512232 BOLT (10)
    BOLT (10)
