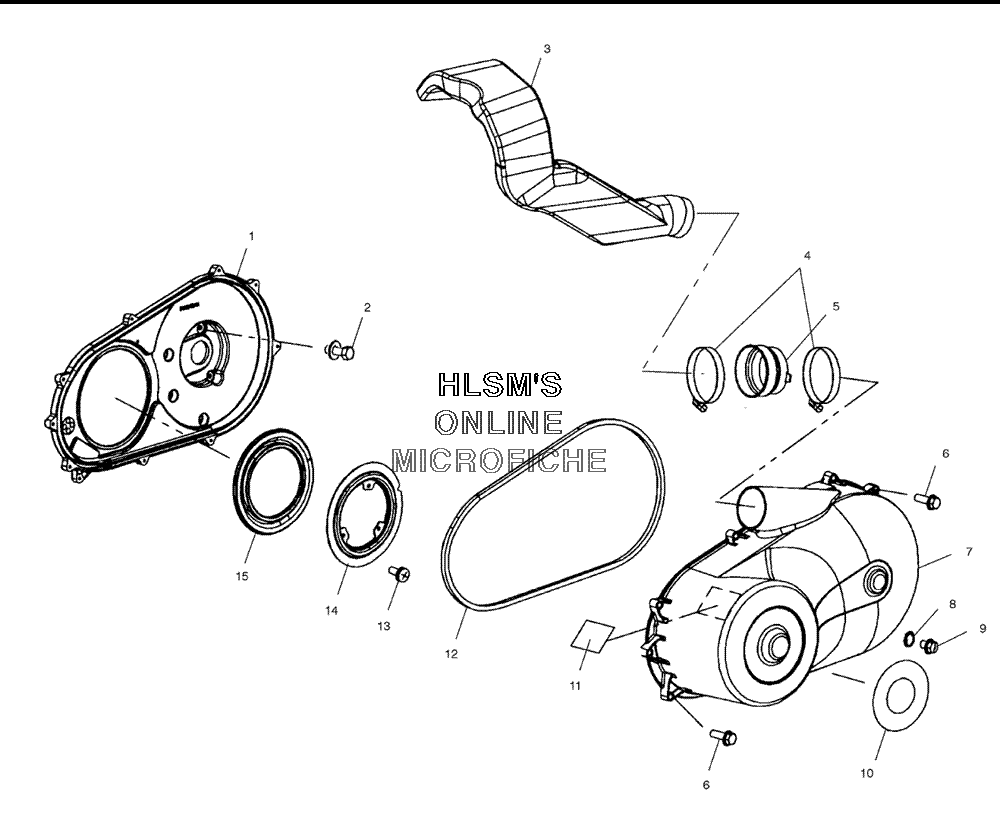

CLUTCH COVER для Polaris SPORTSMAN 700 (A04CH68AT) (N.B.U. SUB. CAMO) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5434235 COVER-CLUTCH,INNER,TWIN
    COVER-CLUTCH,INNER,TWIN
  • 1
    2201955 KIT-INNER CLUTCH CVR,4235,SVC (INCL. 6,15)
    KIT-INNER CLUTCH CVR,4235,SVC (INCL. 6,15)
  • 2
    7517599 ASSY.,BOLT /WASHER.88
    ASSY.,BOLT /WASHER.88
  • 3
    5434012 DUCT-CLUTCH OUTLET
    DUCT-CLUTCH OUTLET
  • 4
    7080707 CLAMP,BAND,NARROW (10)
    CLAMP,BAND,NARROW (10)
  • 5
    5411489 BOOT,DUCT,HI-FLOW
    BOOT,DUCT,HI-FLOW
  • 6
    7512094 SCREW (10)
    SCREW (10)
  • 7
    5434255-070 COVER-CLUTCH OUTER,HV,BLK
    COVER-CLUTCH OUTER,HV,BLK
  • 8
    5410542 SUBSTITUTED BY 5411432
    SUBSTITUTED BY 5411432
  • 9
    5434264 PLUG-DRAIN
    PLUG-DRAIN
  • 10
    7077666 DECAL"AUTO./EBS",CLUTCH
    DECAL"AUTO./EBS",CLUTCH
  • 11
    7078689
  • 12
    5521578 SEAL-OUTER CLUTCH COVER
    SEAL-OUTER CLUTCH COVER
  • 13
    7517867 SCREW,M5X0.8X10,PHPN ZY,L/W SEM
    SCREW,M5X0.8X10,PHPN ZY,L/W SEM
  • 14
    5244527-067 BRKT,RETAINER SEAL,BLK
    BRKT,RETAINER SEAL,BLK
  • 15
    5411918 SEAL,COVER,CLUTCH,INNER
    SEAL,COVER,CLUTCH,INNER
