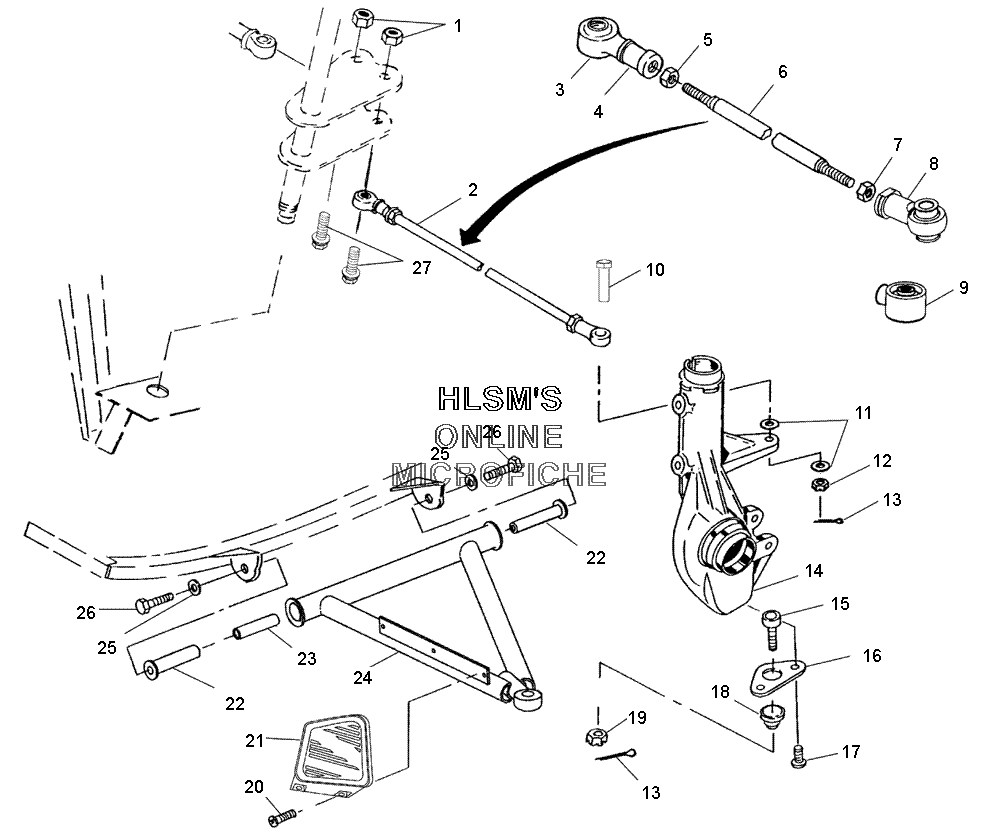

SUSPENSION - FRONT A ARM W/ STRUT MOUNTING для Polaris SCRAMBLER 500 4X4 (A04BG50FA) (CANADA) - 2004 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
21820805 TIE, ROD ASSY (INCL. 3-8)TIE, ROD ASSY (INCL. 3-8)
-
35411291 SEAL, BOOT ROD END (1/2")SEAL, BOOT ROD END (1/2")
-
47061034 ROD END (RIGHT)ROD END (RIGHT)
-
57542711 NUT JAMNUT JAM
-
65020926 ROD, TIEROD, TIE
-
77547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
87061054 ROD, END (10MM) (42 DEG) (LEFT)ROD, END (10MM) (42 DEG) (LEFT)
-
95411920 BOOT, SEAL ROD END (10MM)BOOT, SEAL ROD END (10MM)
-
107517909 BOLT HEXAGON WASHER HEAD (M10X1.25X65)BOLT HEXAGON WASHER HEAD (M10X1.25X65)
-
117556099 WASHERWASHER
-
127547177 NUT HEXAGON LOCK YNUT HEXAGON LOCK Y
-
137661203 PIN, COTTERPIN, COTTER
-
157080927 BALL JOINT, 52 DEGBALL JOINT, 52 DEG
-
165211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
177512284 BOLT, SOCKETBOLT, SOCKET
-
185410548 BOOT, RUBBERBOOT, RUBBER
-
197542438 NUT, CASTLENUT, CASTLE
-
207512084 SCREWSCREW
-
215431150-070 SHIELD COVER JOINT (LEFT/BLACK)SHIELD COVER JOINT (LEFT/BLACK)
-
215431149-070 SHIELD COVER JOINT (RIGHT/BLACK)SHIELD COVER JOINT (RIGHT/BLACK)
-
225434551 BUSHING A ARM, LONG (BLACK)BUSHING A ARM, LONG (BLACK)
-
235133806 SHAFT A ARMSHAFT A ARM
-
242202284-216 A FRAME, KIT (SCR YELLOW/LEFT) (1541866)A FRAME, KIT (SCR YELLOW/LEFT) (1541866)
-
242202285-216 A FRAME, KIT (SCR YELLOW/RIGHT) (1541867)A FRAME, KIT (SCR YELLOW/RIGHT) (1541867)
-
257552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
267512492 SCREWSCREW
-
277515415 SCREWSCREW
