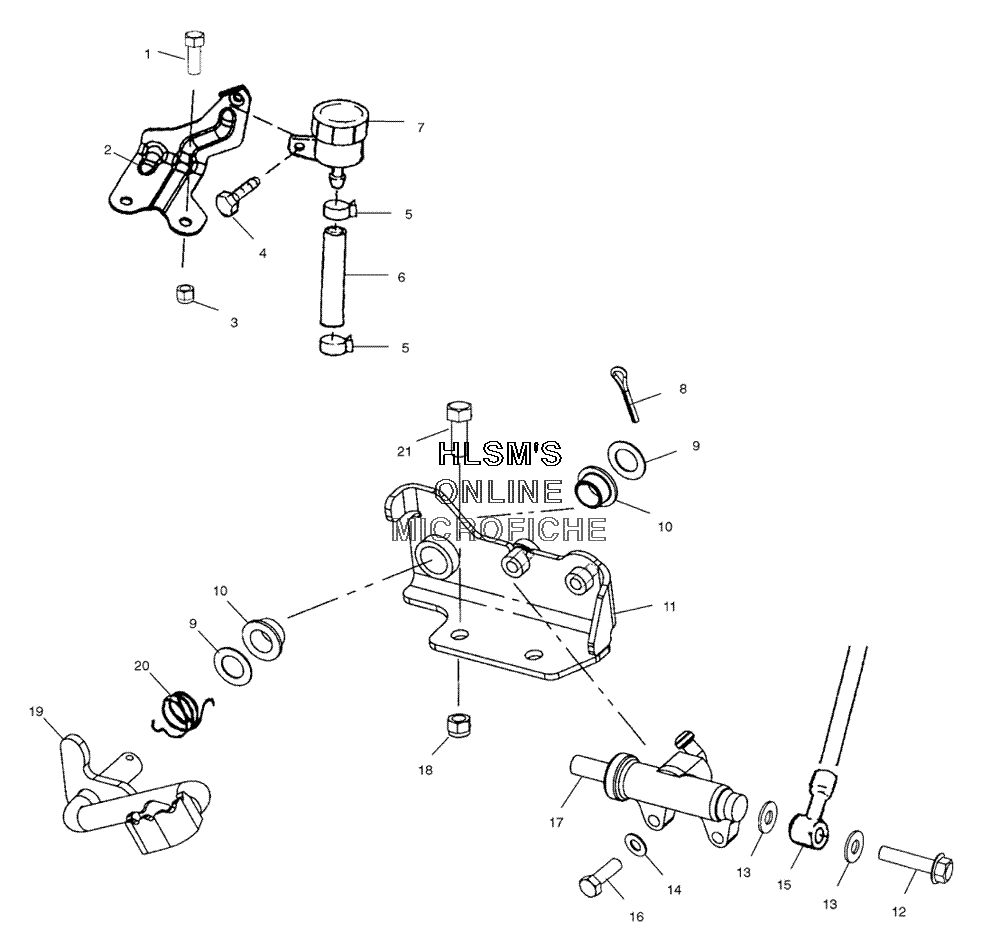

BRAKE - REAR MASTER CYLINDER для Polaris SCRAMBLER 500 4X4 (A04BG50FA) (CANADA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7512113 BOLT
    BOLT
  • 2
    5244091-067 BRACKET, RESERVOIR MOUNT (BLACK)
    BRACKET, RESERVOIR MOUNT (BLACK)
  • 3
    7542122 NUT NYLOK
    NUT NYLOK
  • 4
    7517386 SCREW
    SCREW
  • 5
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    1910404 HOSE, RESERVOIR (1/4ID, 4.75")
    HOSE, RESERVOIR (1/4ID, 4.75")
  • 7
    1930854 RESERVOIR ASSY, BRAKE (REAR)
    RESERVOIR ASSY, BRAKE (REAR)
  • 8
    7661401 PIN, COTTER
    PIN, COTTER
  • 9
    7555919 WASHER
    WASHER
  • 10
    5433189 BUSHING PEDAL PIVOT
    BUSHING PEDAL PIVOT
  • 11
    1910375-067 MOUNT, BRAKE CDS (BLACK)
    MOUNT, BRAKE CDS (BLACK)
  • 12
    1910499 BOLT BANJO, 10MMX1.00
    BOLT BANJO, 10MMX1.00
  • 13
    5410988 SEAL
    SEAL
  • 14
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 16
    7515179 SCREW
    SCREW
  • 17
    1910311 BRAKE MASTER CYLINDER, FOOT BANJO ASSY
    BRAKE MASTER CYLINDER, FOOT BANJO ASSY
  • 18
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 19
    1910377-067 BRAKE ROD, CDS GEN 3 (BLACK)
    BRAKE ROD, CDS GEN 3 (BLACK)
  • 20
    7041750 SPRING, TORSION
    SPRING, TORSION
  • 21
    7515321 BOLT
    BOLT
