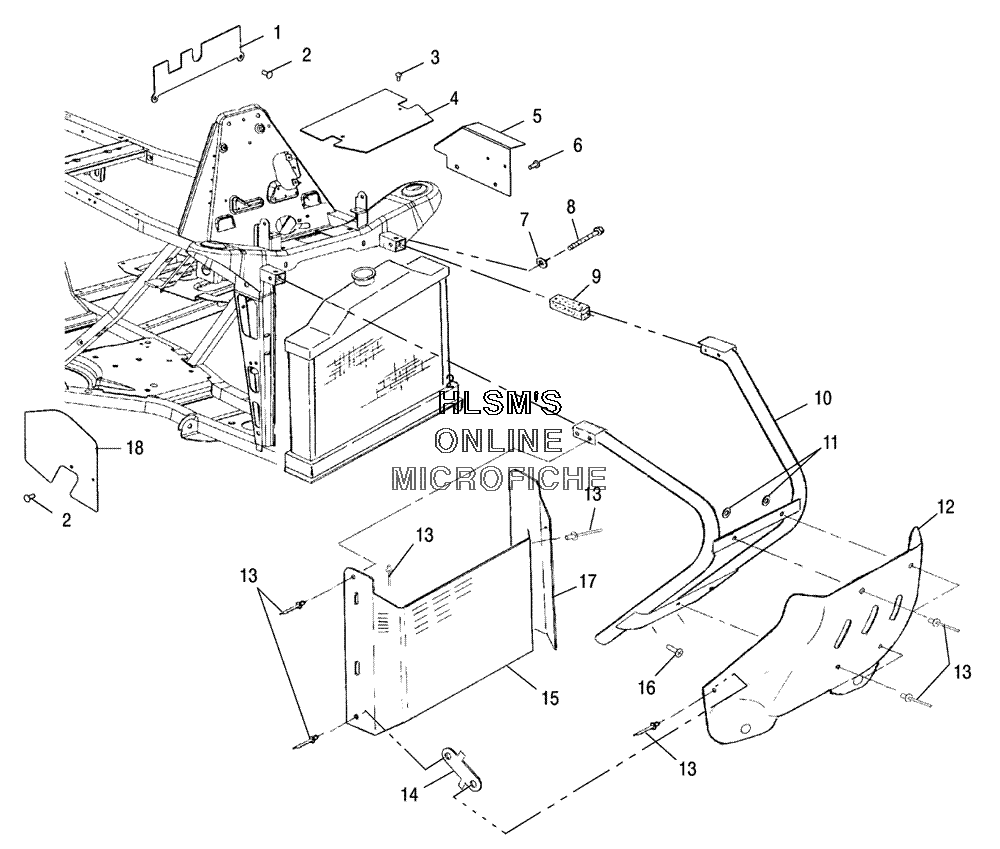

BUMPER AND SHIELDS - FRONT для Polaris SCRAMBLER 500 4X4 (A04BG50FA) (CANADA) - 2004 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    5434162 SHIELD SPLASH (REAR)
    SHIELD SPLASH (REAR)
  • 2
    7670088 CLIP, PLASTIC DART NYLON
    CLIP, PLASTIC DART NYLON
  • 3
    7522026 SCREW
    SCREW
  • 4
    5435455 SHIELD SPLASH (FRONT)
    SHIELD SPLASH (FRONT)
  • 5
    5245415-067 SHIELD SPLASH, GEN3 (LEFT/BLACK) (IF BUILT BEFORE 8/01/03)
    SHIELD SPLASH, GEN3 (LEFT/BLACK) (IF BUILT BEFORE 8/01/03)
  • 5
    5247602-067 SHIELD SPLASH (LEFT/BLACK) (IF BUILT AFTER 8/01/03)
    SHIELD SPLASH (LEFT/BLACK) (IF BUILT AFTER 8/01/03)
  • 6
    7517386 SCREW
    SCREW
  • 7
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 8
    7512329 BOLT
    BOLT
  • 9
    5811675 PLUG, FRAME FOAM
    PLUG, FRAME FOAM
  • 10
    1012773-067 BUMPER, GEN 3 (FRONT/BLACK)
    BUMPER, GEN 3 (FRONT/BLACK)
  • 11
    7555827 WASHER
    WASHER
  • 12
    5432378-070 PLATE, SKID BUMPER (BLACK)
    PLATE, SKID BUMPER (BLACK)
  • 13
    7661121 RIVET 1/4" MULTI GRIP
    RIVET 1/4" MULTI GRIP
  • 14
    5242694-067 BRACKET RADIATOR SHIELD PLATED
    BRACKET RADIATOR SHIELD PLATED
  • 15
    5245343-067 SHIELD, RADIATOR SIDE (RIGHT/BLACK)
    SHIELD, RADIATOR SIDE (RIGHT/BLACK)
  • 16
    7515399 SCREW
    SCREW
  • 17
    5245342-067 SHIELD RADIATOR SIDE (LEFT/BLACK)
    SHIELD RADIATOR SIDE (LEFT/BLACK)
  • 18
    5434085 GUARD SPLASH (RIGHT)
    GUARD SPLASH (RIGHT)
