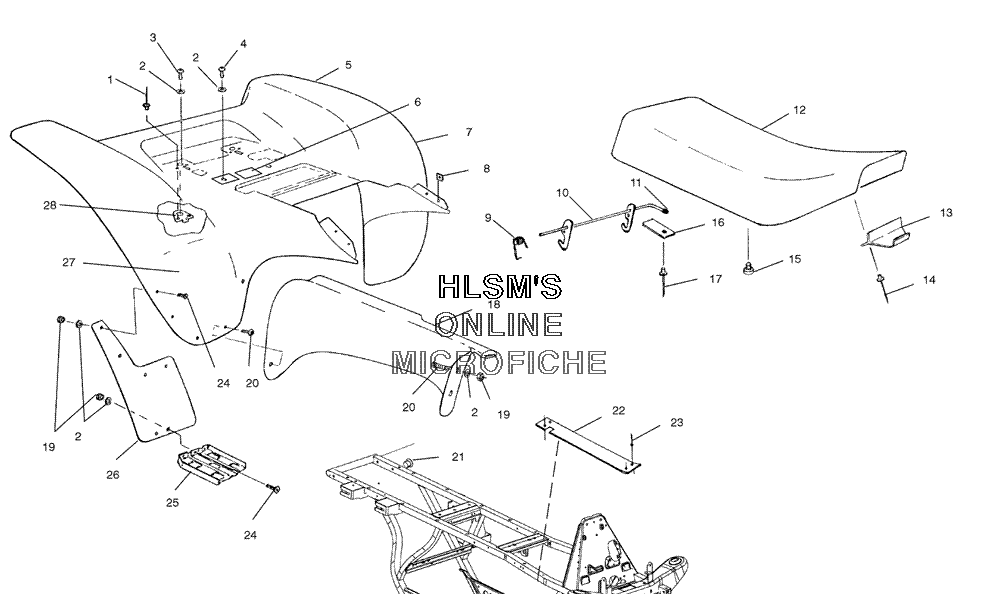

FENDER - REAR W/ SEAT для Polaris SCRAMBLER 500 4X4 (A04BG50FA) (CANADA) - 2004 года выпуска`
-
№АртикулНазвание
-
17621472 RIVETRIVET
-
27555859 WASHER, FLATWASHER, FLAT
-
37512232 BOLTBOLT
-
47512242 SCREWSCREW
-
55810991 FOIL, SMALLFOIL, SMALL
-
67079902 DECAL, CARBURETOR/FILTER INFODECAL, CARBURETOR/FILTER INFO
-
75434014-177 CAB (REAR/BLACK METALLIC)CAB (REAR/BLACK METALLIC)
-
87670057 NUT, SPEEDNUT, SPEED
-
97041607 SPRING, LATCH, LIGHTSPRING, LATCH, LIGHT
-
101040412 LATCH, SEATBACKLATCH, SEATBACK
-
115411392 CAP, SEATLATCHCAP, SEATLATCH
-
122683329-070 SEAT, ASSY (BLACK W/WHITE)SEAT, ASSY (BLACK W/WHITE)
-
122683328-070 COVER SEAT (BLACK)COVER SEAT (BLACK)
-
135431986 TONGUE, SEATTONGUE, SEAT
-
147621479 RIVETRIVET
-
155412067 BUMPER RUBBERBUMPER RUBBER
-
165211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
177621403 BLIND RIVETBLIND RIVET
-
182632274 SHIELD, MUFFLER/FOIL ASSY GEN3 (IF BUILT BEFORE 9/29/03)SHIELD, MUFFLER/FOIL ASSY GEN3 (IF BUILT BEFORE 9/29/03)
-
185811113 FOIL, FOAM (IF BUILT BEFORE 9/29/03)FOIL, FOAM (IF BUILT BEFORE 9/29/03)
-
182632280 SHIELD MUFFLER/FOIL, ASSY (IF BUILT AFTER 9/29/03)SHIELD MUFFLER/FOIL, ASSY (IF BUILT AFTER 9/29/03)
-
185811230 FOIL (IF BUILT AFTER 9/29/03)FOIL (IF BUILT AFTER 9/29/03)
-
197542122 NUT NYLOKNUT NYLOK
-
207517264 SCREWSCREW
-
215432831 PLUG, ENDCAP RIBBEDPLUG, ENDCAP RIBBED
-
225247321-067 GUARD CLUTCH (BLACK)GUARD CLUTCH (BLACK)
-
237661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
247512282 BOLT (BLACK)BOLT (BLACK)
-
265812134 MUDFLAP (REAR/LEFT)MUDFLAP (REAR/LEFT)
-
265850148 MUDFLAP HYBRID (REAR/RIGHT)MUDFLAP HYBRID (REAR/RIGHT)
-
275810957 FOILFOIL
-
285220880 BRACKET HOLDDOWN (REAR)BRACKET HOLDDOWN (REAR)
