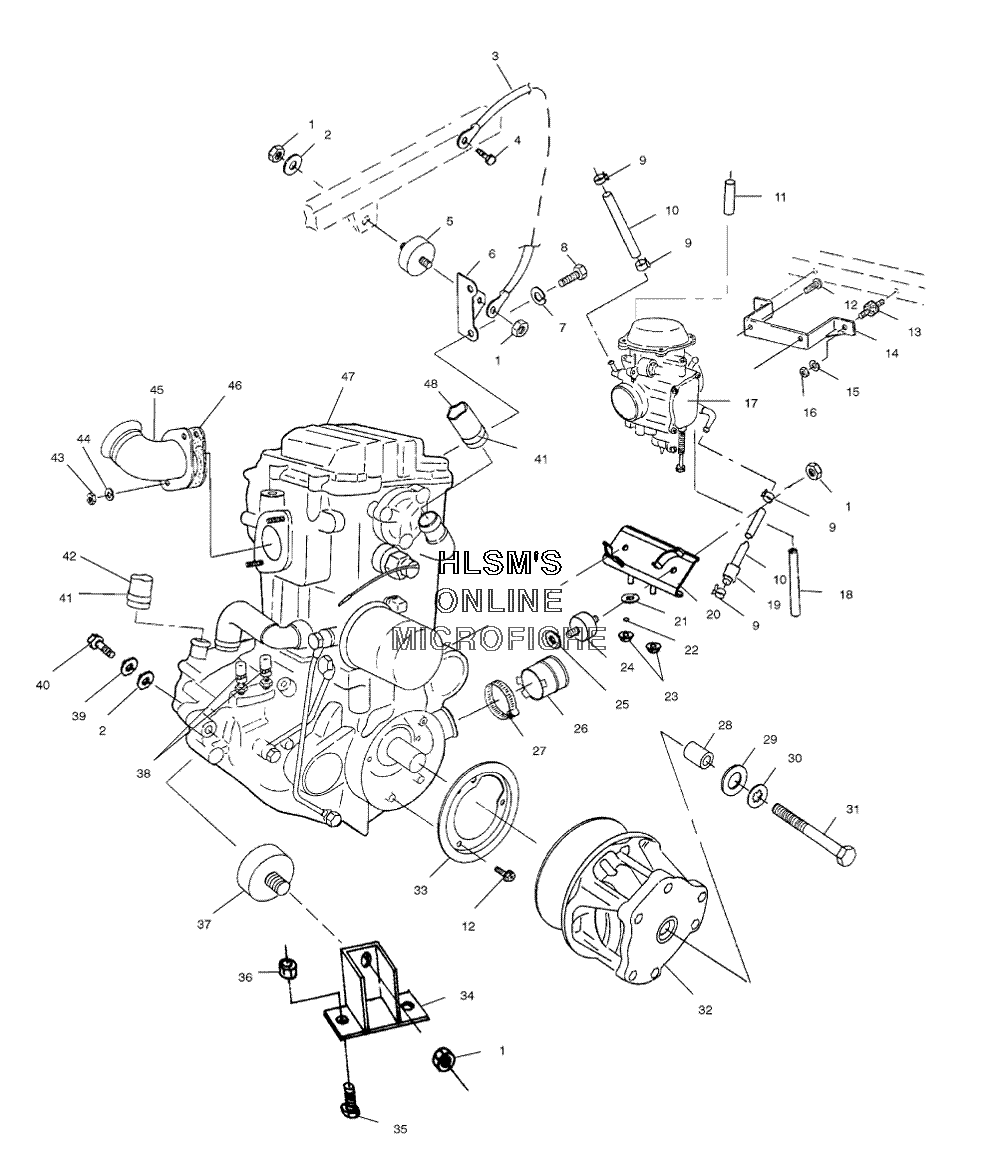

MOUNTING - ENGINE для Polaris SCRAMBLER 500 4X4 (A04BG50AA) (USA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7547108 NUT
    NUT
  • 2
    7555823 WASHER
    WASHER
  • 3
    4010132 CABLE, GND ENGINE
    CABLE, GND ENGINE
  • 4
    7517386 SCREW
    SCREW
  • 5
    3110044 MOUNT, RUBBER (TOP)
    MOUNT, RUBBER (TOP)
  • 6
    5242674 BRACKET, ENGINE MOUNT (TOP/BLACK)
    BRACKET, ENGINE MOUNT (TOP/BLACK)
  • 7
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 8
    7512315 BOLT
    BOLT
  • 9
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    8450040-600 LINE FUEL (1/4 ID/600 CM.)
    LINE FUEL (1/4 ID/600 CM.)
  • 11
    8450003-1525 LINE, FUEL (1/4 ID/1525 CM.)
    LINE, FUEL (1/4 ID/1525 CM.)
  • 12
    3084205 SCREW AND WASHER, ASSY
    SCREW AND WASHER, ASSY
  • 13
    3110032 MOUNT, RUBBER
    MOUNT, RUBBER
  • 14
    5242258-067 BRACKET, CARBURETOR MOUNT (BLACK)
    BRACKET, CARBURETOR MOUNT (BLACK)
  • 15
    7552605 WASHER
    WASHER
  • 16
    7542105 NUT HEX
    NUT HEX
  • 18
    8360009-600 LINE, FUEL (1/8 ID/600 CM.)
    LINE, FUEL (1/8 ID/600 CM.)
  • 19
    8450080-58 SHEATH, REFLECT SLEEVE (16MMX65CM)
    SHEATH, REFLECT SLEEVE (16MMX65CM)
  • 20
    1013222-067 MOUNT, ENGINE (BLACK) (REAR)
    MOUNT, ENGINE (BLACK) (REAR)
  • 21
    5132775 SPACER
    SPACER
  • 22
    5412005 O-RING
    O-RING
  • 23
    7547089 NUT, FLANGE LOCK Y
    NUT, FLANGE LOCK Y
  • 24
    3110046 MOUNT, RUBBER (FRONT)
    MOUNT, RUBBER (FRONT)
  • 25
    7555815 WASHER, FLAT
    WASHER, FLAT
  • 26
    5412487 BOOT CLUTCH, INTAKE
    BOOT CLUTCH, INTAKE
  • 27
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 28
    5430261 BUSHING
    BUSHING
  • 29
    5210748 WASHER
    WASHER
  • 30
    7575202 WASHER LOCK
    WASHER LOCK
  • 31
    7512566 BOLT
    BOLT
  • 34
    1040688-067 MOUNT ENGINE (BLACK)
    MOUNT ENGINE (BLACK)
  • 35
    7515398 SCREW
    SCREW
  • 36
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 37
    3110067 MOUNT, MOTOR
    MOUNT, MOTOR
  • 38
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 39
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 40
    7515438 BOLT
    BOLT
  • 41
    7080696 CLAMP, HOSE 1.25 WORM DRIVE
    CLAMP, HOSE 1.25 WORM DRIVE
  • 45
    1261171-029 WELD MANIFOLD, 1.625 W/PN (BLACK)
    WELD MANIFOLD, 1.625 W/PN (BLACK)
  • 47
    3085822 ENG.EH50PLE 04 (EH50PLE12) NOTE:
    ENG.EH50PLE 04 (EH50PLE12) NOTE:
