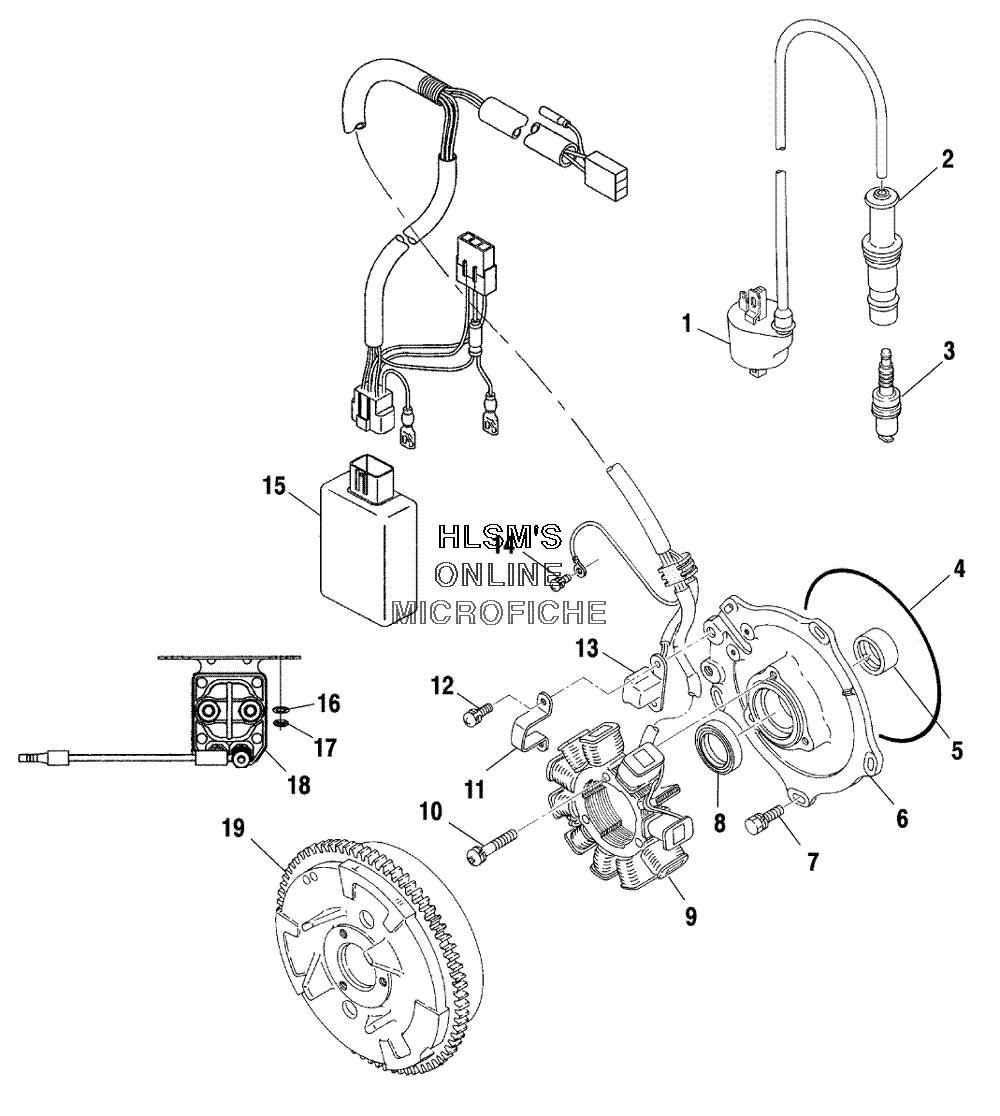

MAGNETO для Polaris SCRAMBLER 500 4X4 (A04BG50AA) (USA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3089260 IGNITION COIL, ASSY (INCL. 1, 2)
    IGNITION COIL, ASSY (INCL. 1, 2)
  • 1
    3089261 COIL, IGNITION
    COIL, IGNITION
  • 2
    3084980 CAP, SPARKPLUG
    CAP, SPARKPLUG
  • 3
    3084997 SPARK PLUG (BKR6E)
    SPARK PLUG (BKR6E)
  • 4
    3084978 O-RING
    O-RING
  • 5
    3084972 BEARING, METAL
    BEARING, METAL
  • 6
    3089253 PLATE, ASSY (INCL. 5, 6, 8-12, 14)
    PLATE, ASSY (INCL. 5, 6, 8-12, 14)
  • 6
    3089248 PLATE
    PLATE
  • 7
    3081657 BOLT AND WASHER ASSY
    BOLT AND WASHER ASSY
  • 8
    3084973 SEAL, OIL
    SEAL, OIL
  • 9
    3089249 STATOR (INCL. 13)
    STATOR (INCL. 13)
  • 10
    3089251 SCREW AND WASHER, ASSY
    SCREW AND WASHER, ASSY
  • 11
    3089250 BAND PULSE
    BAND PULSE
  • 12
    3084976 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 13
    3089254 COIL PULSER
    COIL PULSER
  • 14
    3081256 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 15
    3089238 CDI SYSTEM
    CDI SYSTEM
  • 16
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 17
    7542105 NUT HEX
    NUT HEX
  • 18
    4010930 SWITCH MAGNETIC
    SWITCH MAGNETIC
  • 19
    3089247 FLYWHEEL W/RING GEAR
    FLYWHEEL W/RING GEAR
