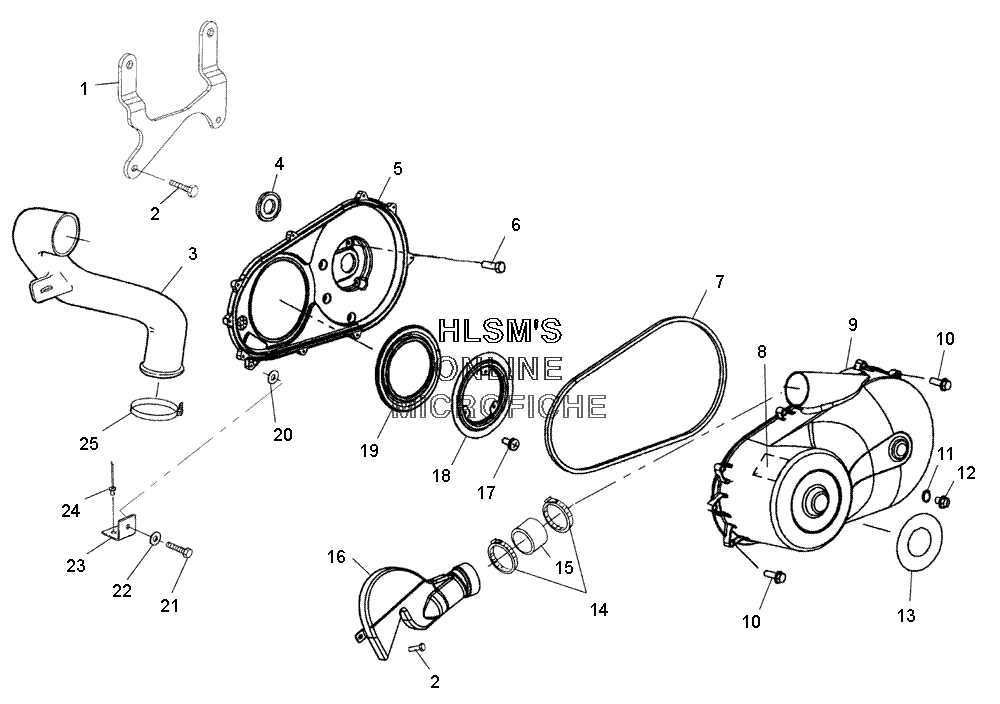

CLUTCH COVER для Polaris SCRAMBLER 500 4X4 (A04BG50AA) (USA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5247524-067 BRACKET CLUTCH COVER (BLACK)
    BRACKET CLUTCH COVER (BLACK)
  • 2
    7517386 SCREW
    SCREW
  • 3
    5432698 DUCT, INLET DOWN TUBE
    DUCT, INLET DOWN TUBE
  • 4
    5411553 SEAL, COVER (INNER)
    SEAL, COVER (INNER)
  • 5
    2201957 CLUTCH COVER, SERVICE KIT (INNER) (INCL. 7, 10, 19, 21)
    CLUTCH COVER, SERVICE KIT (INNER) (INCL. 7, 10, 19, 21)
  • 6
    7517601 BOLT /WASHER (1 1/8)
    BOLT /WASHER (1 1/8)
  • 7
    5521578 SEAL CLUTCH COVER (OUTER)
    SEAL CLUTCH COVER (OUTER)
  • 8
    7078689 DECAL
    DECAL
  • 9
    5434255-070 COVER CLUTCH HV (BLACK) (OUTER)
    COVER CLUTCH HV (BLACK) (OUTER)
  • 10
    7512094 SCREW
    SCREW
  • 11
    5410542 ORING
    ORING
  • 12
    5434264 PLUG DRAIN
    PLUG DRAIN
  • 13
    7074782 DECAL, AUTO. TRANSMISSION
    DECAL, AUTO. TRANSMISSION
  • 14
    7080761 CABLE TIE (14")
    CABLE TIE (14")
  • 15
    5411489 BOOT, DUCT HI FLOW
    BOOT, DUCT HI FLOW
  • 16
    5434160 DUCT CLUTCH, OUT HI FLOW (13.6)
    DUCT CLUTCH, OUT HI FLOW (13.6)
  • 18
    5242046 BRACKET CLUTCH SEAL
    BRACKET CLUTCH SEAL
  • 19
    5410575 SEAL, COVER CASE
    SEAL, COVER CASE
  • 20
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 21
    7512098 SCREW
    SCREW
  • 22
    7555935 WASHER
    WASHER
  • 23
    5242693-067 BRACKET, CLUTCH COVER (BLACK)
    BRACKET, CLUTCH COVER (BLACK)
  • 24
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 25
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
