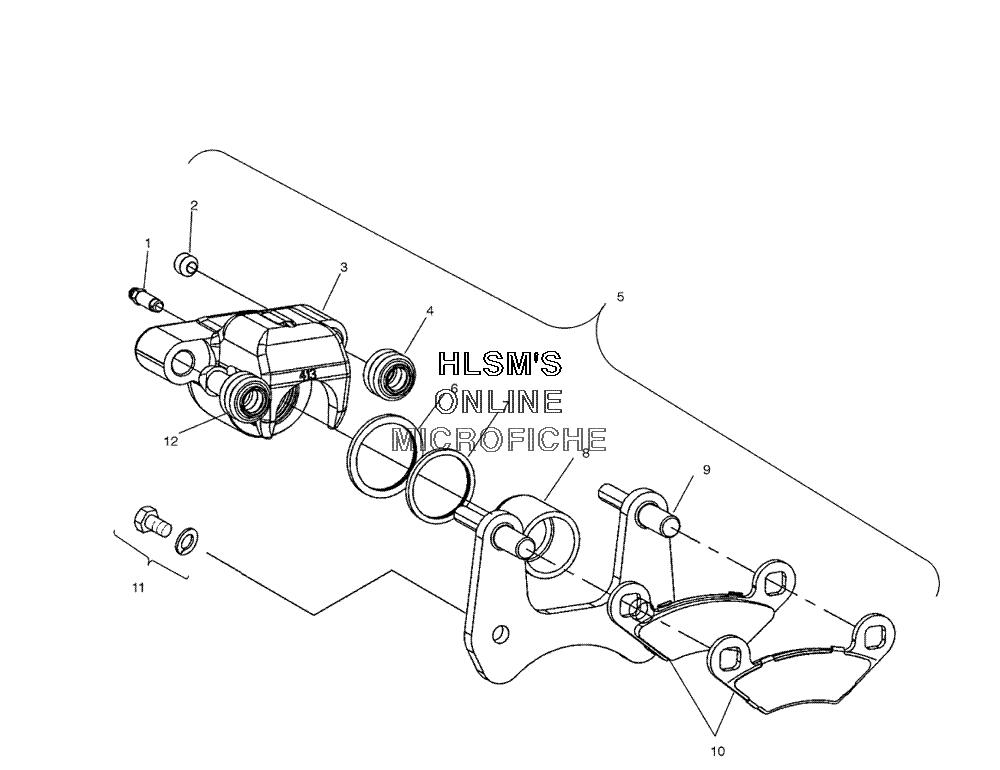

BRAKE - REAR CALIPER ASSY. для Polaris ATP 330 4X4 (A04JD32AA) - 2004 года выпуска`
-
№АртикулНазвание
-
17080352 SCREW BLEEDERSCREW BLEEDER
-
27515489 SCREW SOCKET SETSCREW SOCKET SET
-
35133412 CALIPER (1.25) (LEFT) (MACH)CALIPER (1.25) (LEFT) (MACH)
-
35133413 CALIPER (1.25) (RIGHT) (MACH)CALIPER (1.25) (RIGHT) (MACH)
-
31930642 BOOT BRAKE KIT (FRONT)BOOT BRAKE KIT (FRONT)
-
45410494 BOOT PIN SEALBOOT PIN SEAL
-
51910717 CALIPER BRAKE ASSY (REAR/LEFT) (INCL. 2-3, 4-8)CALIPER BRAKE ASSY (REAR/LEFT) (INCL. 2-3, 4-8)
-
51910718 CALIPER BRAKE ASSY (REAR/RIGHT) (INCL. 2-3, 4-8)CALIPER BRAKE ASSY (REAR/RIGHT) (INCL. 2-3, 4-8)
-
65411596 SEAL CALIPER (INNER)SEAL CALIPER (INNER)
-
75411597 SEAL CALIPER (OUTER)SEAL CALIPER (OUTER)
-
85132405 PISTON CALIPERPISTON CALIPER
-
91910643 CALIPER MOUNT ASSYCALIPER MOUNT ASSY
-
102202412 BRAKE PAD ASSY KIT (FRONT)BRAKE PAD ASSY KIT (FRONT)
-
117512365 SCREW CAPSCREW CAP
-
117552603 WASHER SPRING LOCKWASHER SPRING LOCK
-
125410495 BOOT, BUSHINGBOOT, BUSHING
