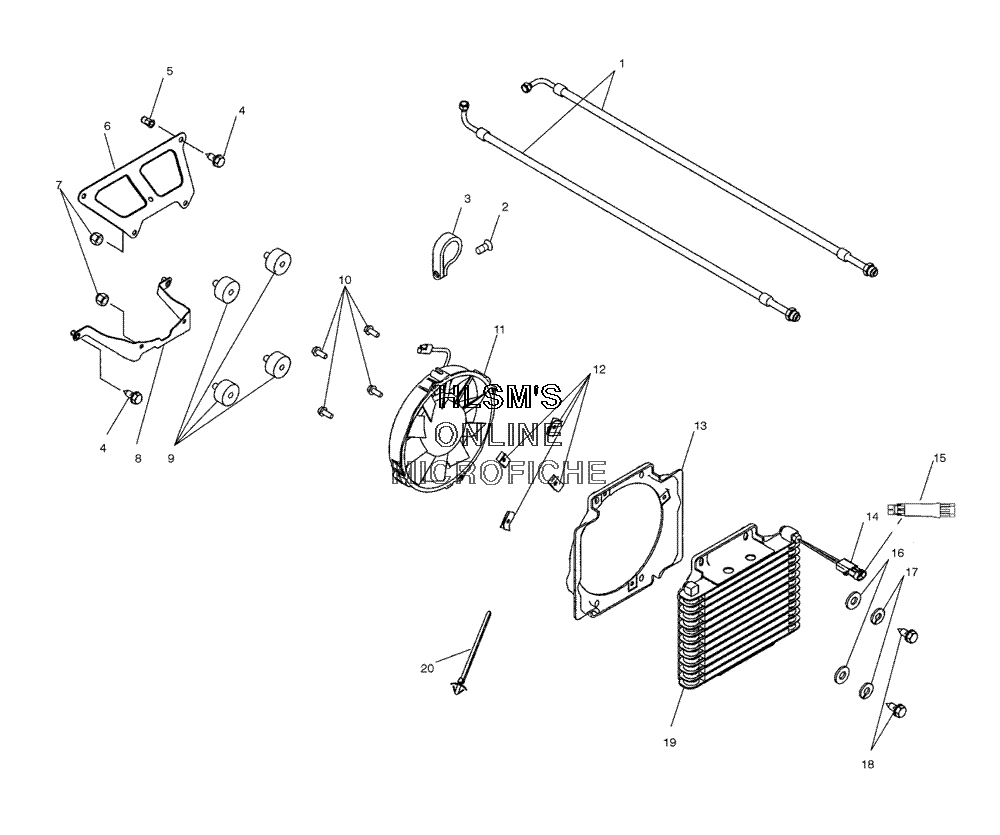

OIL COOLING SYSTEM для Polaris ATP 330 4X4 (A04JD32AA) - 2004 года выпуска
-
№АртикулНазвание
-
15412355 HOSE COOLER THREADED 90ШHOSE COOLER THREADED 90Ш
-
27512084 SCREWSCREW
-
37080851 CLAMP HOSE VINYL COATED (1.312)CLAMP HOSE VINYL COATED (1.312)
-
47515133 SCREWSCREW
-
57547069 NUTSERT HEXAGONNUTSERT HEXAGON
-
65245416-067 BRACKET OIL COOLER TOP (BLACK)BRACKET OIL COOLER TOP (BLACK)
-
77542122 NUT NYLOKNUT NYLOK
-
81013519 BRACKET OIL COOLER ASSY (LOWER)BRACKET OIL COOLER ASSY (LOWER)
-
87542130 RIVNUTRIVNUT
-
95411548 MOUNT RUBBER (IF BUILT BEFORE 2/21/04)MOUNT RUBBER (IF BUILT BEFORE 2/21/04)
-
97555932 WASHER NYLON (IF BUILT AFTER 2/21/04)WASHER NYLON (IF BUILT AFTER 2/21/04)
-
107517659 SCREWSCREW
-
112410157 FAN MOTORFAN MOTOR
-
127670111 CLIP UCLIP U
-
135433353 SHROUD FANSHROUD FAN
-
144010274 THERMISTER (IF BUILT BEFORE 1/05/04)THERMISTER (IF BUILT BEFORE 1/05/04)
-
144010934 THERMISTER (IF BUILT AFTER 1/05/04)THERMISTER (IF BUILT AFTER 1/05/04)
-
152410380 JUMPER THERMISTOR OFFSET (IF BUILT BEFORE 1/05/04)JUMPER THERMISTOR OFFSET (IF BUILT BEFORE 1/05/04)
-
167558301 WASHER FLATWASHER FLAT
-
177552801 WASHER SPRING LOCK (IF BUILT BEFORE 2/21/04)WASHER SPRING LOCK (IF BUILT BEFORE 2/21/04)
-
187512240 BOLT (IF BUILT BEFORE 2/21/04)BOLT (IF BUILT BEFORE 2/21/04)
-
187512163 BOLT (IF BUILT AFTER 2/21/04)BOLT (IF BUILT AFTER 2/21/04)
-
191240155 OIL COOLER WITH HOSES ASSYOIL COOLER WITH HOSES ASSY
-
191240191 COOLER OIL (IF BUILT AFTER 1/05/04)COOLER OIL (IF BUILT AFTER 1/05/04)
-
207080999 TIE, CABLE PRESS MOUNT (BLACK)TIE, CABLE PRESS MOUNT (BLACK)
