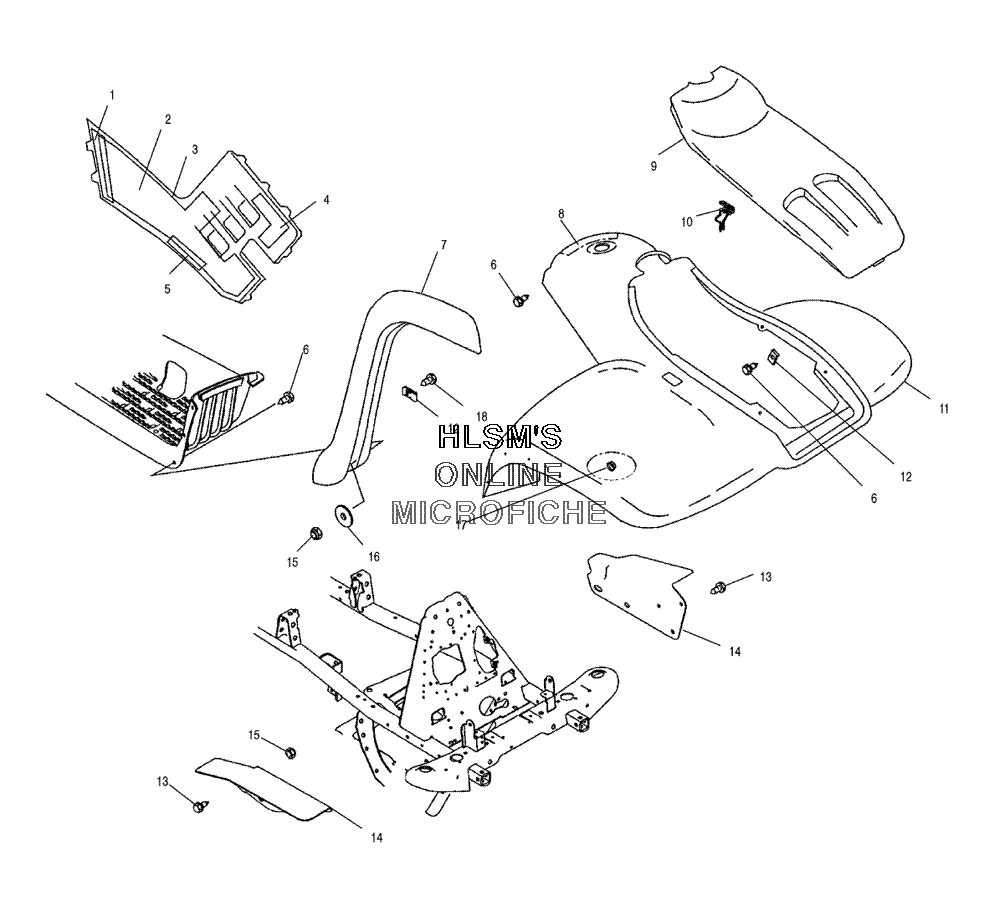

FENDER - FRONT W/ SIDE PANELS для Polaris ATP 330 4X4 (A04JD32AA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5811491 FOIL (RIGHT)
    FOIL (RIGHT)
  • 2
    5812484 FOIL (RIGHT)
    FOIL (RIGHT)
  • 3
    2632284-400 PANEL FOAM ASSY (LEFT/CAMO GREEN METALLIC)
    PANEL FOAM ASSY (LEFT/CAMO GREEN METALLIC)
  • 3
    2632633-400 PANEL FOIL ASSY (RIGHT/CAMO GREEN METALLIC)
    PANEL FOIL ASSY (RIGHT/CAMO GREEN METALLIC)
  • 4
    5811797 FOAM (LEFT)
    FOAM (LEFT)
  • 5
    5812138 FOAM (LEFT)
    FOAM (LEFT)
  • 6
    7512232 BOLT
    BOLT
  • 7
    5431798-070 GUARD MUDFLAP (LEFT/FRONT/BLACK)
    GUARD MUDFLAP (LEFT/FRONT/BLACK)
  • 7
    5431799-070 GUARD MUDFLAP (RIGHT/FRONT/BLACK)
    GUARD MUDFLAP (RIGHT/FRONT/BLACK)
  • 8
    5811801 FOAM (FRONT)
    FOAM (FRONT)
  • 9
    5432088-400 COVER (FRONT/CAMO GREEN METALLIC) (IF BUILT BEFORE 5/01/03)
    COVER (FRONT/CAMO GREEN METALLIC) (IF BUILT BEFORE 5/01/03)
  • 9
    5435110-400 COVER (FRONT/CAMO GREEN METALLIC) (IF BUILT AFTER 5/01/03)
    COVER (FRONT/CAMO GREEN METALLIC) (IF BUILT AFTER 5/01/03)
  • 10
    7670085 CLIP SPRING (IF BUILT BEFORE 6/02/03)
    CLIP SPRING (IF BUILT BEFORE 6/02/03)
  • 11
    2632747-400 CAB FOAM ASSY (FRONT/CAMO GREEN METALLIC) (INCL. WARNING DECALS)
    CAB FOAM ASSY (FRONT/CAMO GREEN METALLIC) (INCL. WARNING DECALS)
  • 12
    7670057 NUT SPEED
    NUT SPEED
  • 13
    7512126 SCREW
    SCREW
  • 14
    5245394-067 SHIELD SPLASH (LEFT/BLACK)
    SHIELD SPLASH (LEFT/BLACK)
  • 14
    5246021-067 GUARD SPLASH (RIGHT/BLACK)
    GUARD SPLASH (RIGHT/BLACK)
  • 15
    7542122 NUT NYLOK
    NUT NYLOK
  • 16
    7558221 WASHER
    WASHER
  • 17
    7670135 NUT SPEED
    NUT SPEED
  • 18
    7517312 SCREW
    SCREW
