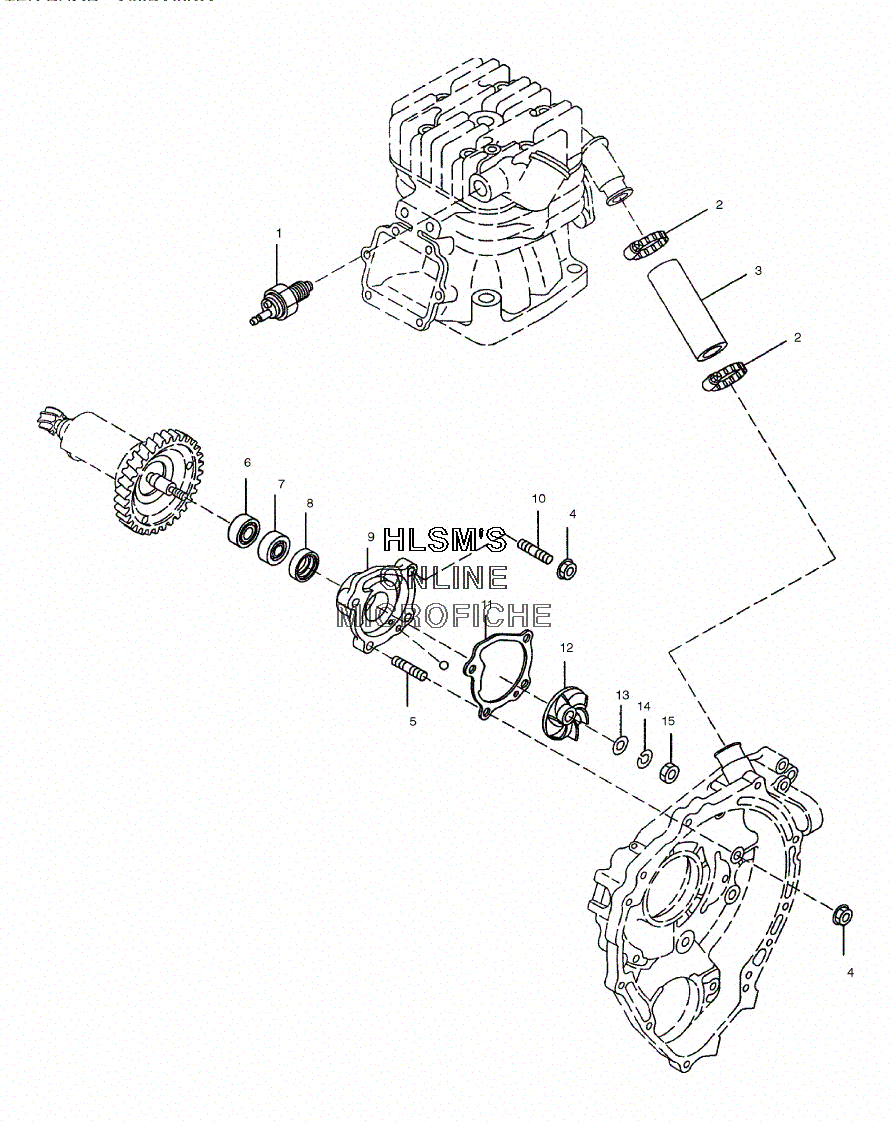

WATER PUMP для Polaris TRAIL BLAZER 400 (A03BA38CA) - 2003 года выпуска
-
№АртикулНазвание
-
13084284 SWITCH, THERMALSWITCH, THERMAL
-
23086774 CLAMP, HOSECLAMP, HOSE
-
33086773 HOSE, MAINHOSE, MAIN
-
43083856 NUT, FLANGENUT, FLANGE
-
53086772 STUDSTUD
-
63084183 BEARING, BALLBEARING, BALL
-
73084184 SEAL, OILSEAL, OIL
-
83084185 SEAL, OILSEAL, OIL
-
93086770 CASE, WATER PUMP (INCL. 5, 6, 7, 8, 10)CASE, WATER PUMP (INCL. 5, 6, 7, 8, 10)
-
93086771 CASE, WATER PUMP (INCL. 5, 10)CASE, WATER PUMP (INCL. 5, 10)
-
103086775 STUDSTUD
-
113084187 GASKETGASKET
-
123084186 IMPELLERIMPELLER
-
133082206 WASHERWASHER
-
143080077 WASHER SPRINGWASHER SPRING
-
153083073 NUTNUT
