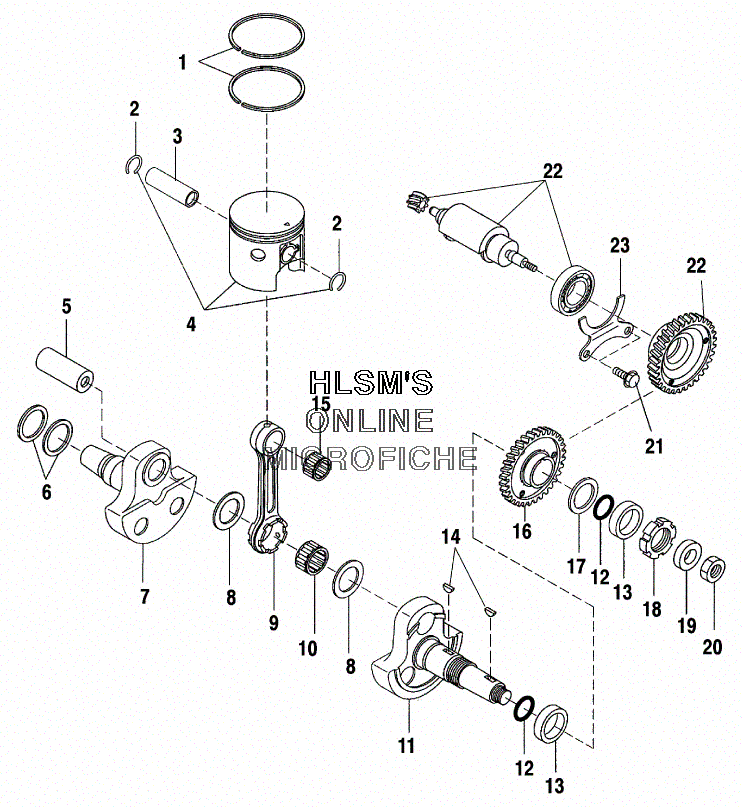

CRANKSHAFT W/ PISTON для Polaris TRAIL BLAZER 400 (A03BA38CA) - 2003 года выпуска
-
№АртикулНазвание
-
13084737 RING, PISTON (STD)RING, PISTON (STD)
-
13084738 RING, PISTON (OPT.) (.25MM O/S)RING, PISTON (OPT.) (.25MM O/S)
-
13084739 RING, PISTON (OPT.) (.50MM O/S)RING, PISTON (OPT.) (.50MM O/S)
-
23084167 CLIP, PISTON PINCLIP, PISTON PIN
-
33083838 PIN, PISTONPIN, PISTON
-
43085886 SET, PISTON (STANDARD) (INCL. 2)SET, PISTON (STANDARD) (INCL. 2)
-
43085887 SET,PISTON (OPT.) (0.25 O/S) (INCL. 2)SET,PISTON (OPT.) (0.25 O/S) (INCL. 2)
-
43085888 SET,PISTON (OPT.) (0.50 O/S) (INCL. 2)SET,PISTON (OPT.) (0.50 O/S) (INCL. 2)
-
53084152 PIN, CRANK #1PIN, CRANK #1
-
63086765 SPACER-1 (0.2) (OPT.)SPACER-1 (0.2) (OPT.)
-
63086766 SPACER-2 (0.3) (OPT.)SPACER-2 (0.3) (OPT.)
-
73084777 CRANKSHAFT #2 PTO SIDECRANKSHAFT #2 PTO SIDE
-
83084155 SPACER, CRANK PINSPACER, CRANK PIN
-
93084153 ROD, CONNECTINGROD, CONNECTING
-
103084154 BEARING, LARGE ENDBEARING, LARGE END
-
113084776 CRANKSHAFT ASSY. (INCL. 5,7,8,9,10,11)CRANKSHAFT ASSY. (INCL. 5,7,8,9,10,11)
-
113084149 CRANKSHAFT #1, MAG SIDECRANKSHAFT #1, MAG SIDE
-
123084160 O-RINGO-RING
-
133086763 COLLARCOLLAR
-
143080130 KEY WOODRUFFKEY WOODRUFF
-
153084168 BEARING, SMALL ENDBEARING, SMALL END
-
163084156 GEAR, DRIVEGEAR, DRIVE
-
173086764 WASHER, GUIDEWASHER, GUIDE
-
183086762 NUT, SLITNUT, SLIT
-
193086767 WASHERWASHER
-
203083905 LOCKNUTLOCKNUT
-
213086769 BOLT, FLANGEBOLT, FLANGE
-
223087042 BALANCERBALANCER
-
233086768 PLATEPLATE
