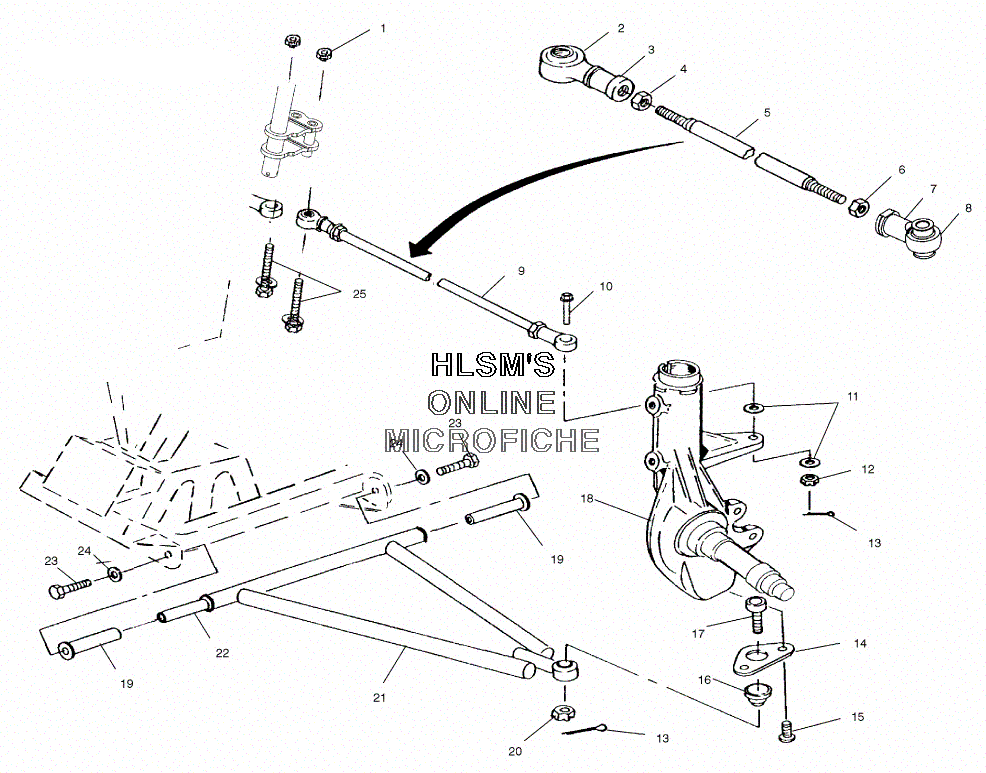

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris TRAIL BLAZER 400 (A03BA38CA) - 2003 года выпуска`

№

Артикул

Название
1

7542439 NUT, NYLOK

NUT, NYLOK

110 ₽
2

5411291 SEAL, BOOT ROD END (1/2 INCH)

SEAL, BOOT ROD END (1/2 INCH)

2 080 ₽
3

7061034 ROD END (RIGHT)

ROD END (RIGHT)

10 400 ₽
4

7542711 NUT, JAM

NUT, JAM

110 ₽
5

5020927 ROD, TIE

ROD, TIE

7 280 ₽
6

7547028 NUT, JAM (LEFT)

NUT, JAM (LEFT)

540 ₽
7

7061054 ROD, END (10MM) (42 DEG) (LEFT)

ROD, END (10MM) (42 DEG) (LEFT)

10 400 ₽
8

5411920 BOOT, SEAL ROD END (10MM)

BOOT, SEAL ROD END (10MM)

2 080 ₽
9

1820806 TIE, ROD (1/2-20 X 14.0) ASSY.

TIE, ROD (1/2-20 X 14.0) ASSY.

21 840 ₽
10

7517909 BOLT (M10 X 1.25 X 65) HEX WASHER HEAD

BOLT (M10 X 1.25 X 65) HEX WASHER HEAD

1 460 ₽
11

7556099 WASHER

WASHER

340 ₽
12

7547177 NUT, LOCK

NUT, LOCK

670 ₽
13

7661203 PIN COTTER

PIN COTTER

110 ₽
14

5240717 BRACKET, BALLJOINT

BRACKET, BALLJOINT

7 700 ₽
15

7512284 BOLT, SOCKET

BOLT, SOCKET

250 ₽
16

5410548 BOOT, RUBBER

BOOT, RUBBER

630 ₽
17

7080927 BALL- JOINT (52 DEG)

BALL- JOINT (52 DEG)

13 520 ₽
19

5434551 BUSHING, A-ARM LONG (BLACK)

BUSHING, A-ARM LONG (BLACK)

1 870 ₽
20

7542438 NUT, CASTLE

NUT, CASTLE

340 ₽
21

2202276 KIT, A-FRAME (LEFT) (INCL. 13,19,22,24,25)

KIT, A-FRAME (LEFT) (INCL. 13,19,22,24,25)

24 960 ₽
21

2202277 KIT, A-FRAME (RIGHT) (INCL. 13,19,22,24,25)

KIT, A-FRAME (RIGHT) (INCL. 13,19,22,24,25)

24 960 ₽
22

5133806 SHAFT, A-ARM

SHAFT, A-ARM

3 750 ₽
23

7512492 SCREW

SCREW

250 ₽
24

7571611 WASHER, LOCK

WASHER, LOCK

340 ₽
25

7518033 BOLT SPECIAL FLANGE (3/8-24 X 4)

BOLT SPECIAL FLANGE (3/8-24 X 4)

3 540 ₽
