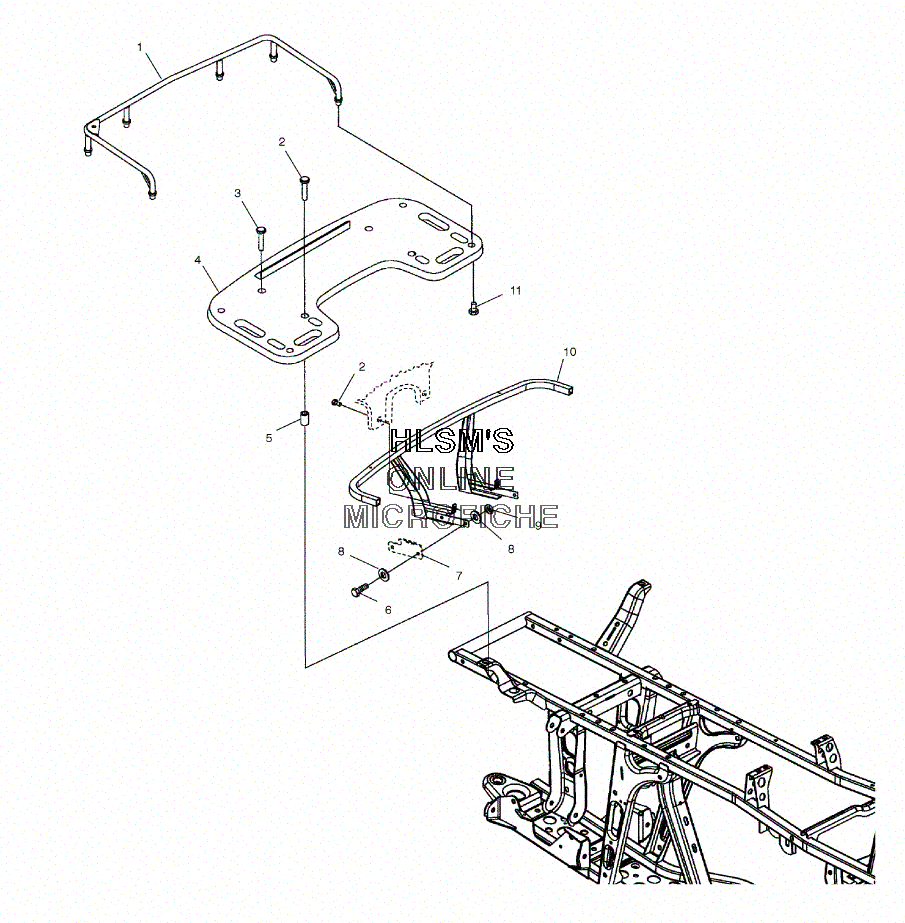

RACK AND BUMPER MOUNTING - REAR для Polaris SPORTSMAN 700 4X4 (A03CH68AC) (NBU NO SHADOW) - 2003 года выпуска`
-
№АртикулНазвание
-
11040510-385 RACK EXT. (REAR/LOWER/SILVER) (INCL. 11)RACK EXT. (REAR/LOWER/SILVER) (INCL. 11)
-
11040510-067 RACK EXT. (3.5'') (REAR/BLACK) (INCL. 11)RACK EXT. (3.5'') (REAR/BLACK) (INCL. 11)
-
27517983 SCREWSCREW
-
37517685 SCREWSCREW
-
42632667-070 RACK ASSY. (REAR/BLACK) (INCL. WARNING DECAL)RACK ASSY. (REAR/BLACK) (INCL. WARNING DECAL)
-
55334092 SPACERSPACER
-
67512329 BOLTBOLT
-
87558402 WASHER, FLATWASHER, FLAT
-
97542324 NUT, NYLOKNUT, NYLOK
-
101013724-067 RACK, SUPPORT (REAR/BLACK)RACK, SUPPORT (REAR/BLACK)
-
117512310 SCREWSCREW
