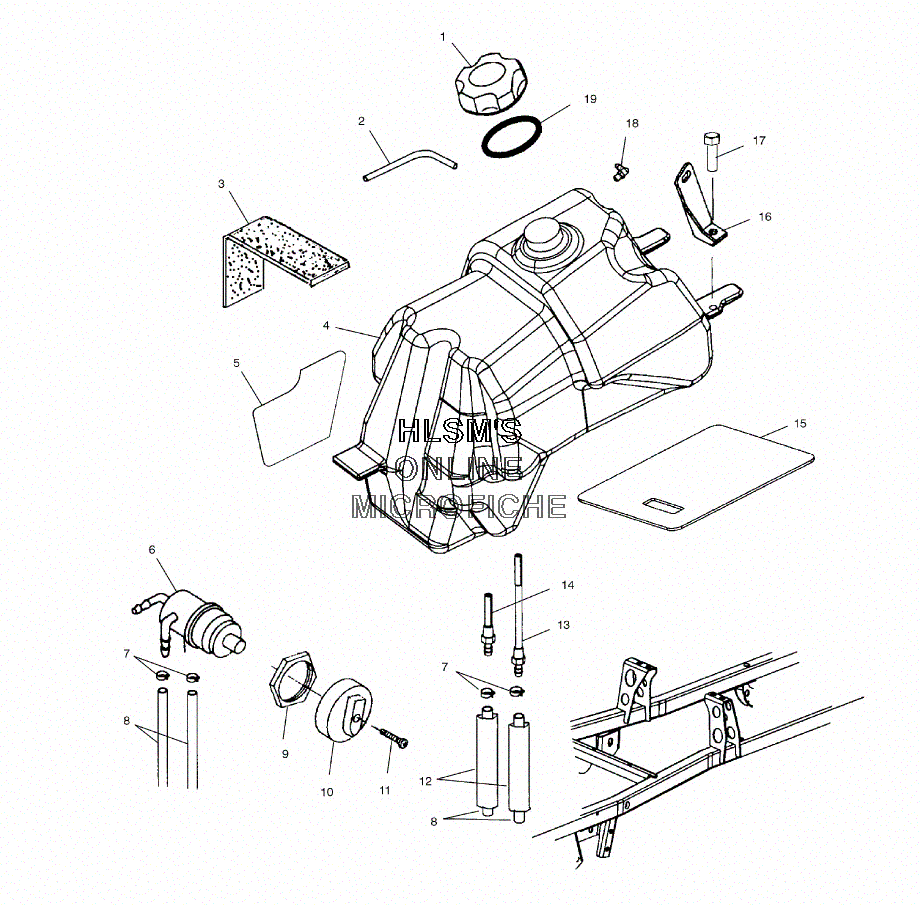

FUEL TANK для Polaris SPORTSMAN 700 4X4 (A03CH68AC) (NBU NO SHADOW) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5433687 CAP, GAS TANK (INCL. 19)
    CAP, GAS TANK (INCL. 19)
  • 2
    8360009-600 FUEL LINE (1/8 ID) (600 CM.) (OPT.)
    FUEL LINE (1/8 ID) (600 CM.) (OPT.)
  • 3
    5812265 SEAL, FOAM (12 INCH)
    SEAL, FOAM (12 INCH)
  • 4
    2520203 FUEL, TANK ASSY. (INCL. 13, 14, 18)
    FUEL, TANK ASSY. (INCL. 13, 14, 18)
  • 5
    5182004 FUEL, FOIL TANK
    FUEL, FOIL TANK
  • 6
    7052161 VALVE, 3-WAY
    VALVE, 3-WAY
  • 7
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 8
    8450040-600 FUEL, LINE (1/4 ID) (600 CM.) (OPT.)
    FUEL, LINE (1/4 ID) (600 CM.) (OPT.)
  • 9
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 10
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 11
    7517505 SCREW
    SCREW
  • 12
    8450080-65 SHEATH, REFLECTSLEEVE (16MM X 65CM)
    SHEATH, REFLECTSLEEVE (16MM X 65CM)
  • 13
    7052150 FITTING, FUEL OUT MAIN (4'')
    FITTING, FUEL OUT MAIN (4'')
  • 14
    7052149 FITTING, FUEL OUT RES.
    FITTING, FUEL OUT RES.
  • 15
    5812005 FOIL, FUELTANK 6 X 6 (9.5 X 7.125)
    FOIL, FUELTANK 6 X 6 (9.5 X 7.125)
  • 16
    5246069-067 BRACKET, FUEL COVER MOUNT (REAR/LEFT/BLACK)
    BRACKET, FUEL COVER MOUNT (REAR/LEFT/BLACK)
  • 16
    5246070-067 BRACKET, FUEL COVER MOUNT (REAR/RIGHT/BLACK)
    BRACKET, FUEL COVER MOUNT (REAR/RIGHT/BLACK)
  • 17
    7517685 SCREW
    SCREW
  • 18
    5431053 VENT, TANK
    VENT, TANK
  • 19
    5812123 GASKET, GAS CAP
    GASKET, GAS CAP
