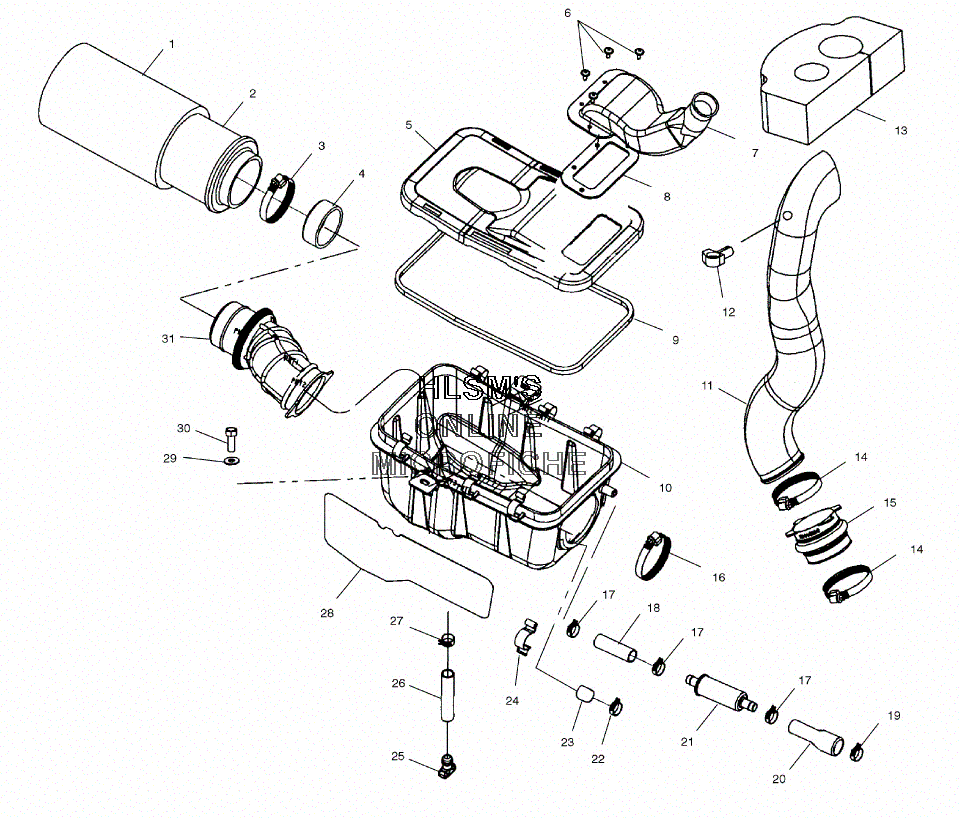

AIR BOX ASSY. для Polaris SPORTSMAN 700 4X4 (A03CH68AC) (NBU NO SHADOW) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5811633 FILTER, PRECLEAN SLEEVE
    FILTER, PRECLEAN SLEEVE
  • 2
    7080595 FILTER, AIR INTAKE
    FILTER, AIR INTAKE
  • 3
    7080413 CLAMP, BAND NARROW
    CLAMP, BAND NARROW
  • 4
    5433847 SLEEVE, CARBURETOR (INNER)
    SLEEVE, CARBURETOR (INNER)
  • 5
    5432868 COVER, AIR BOX
    COVER, AIR BOX
  • 6
    7517317 SCREW
    SCREW
  • 7
    5434013 DUCT, AIR INTAKE
    DUCT, AIR INTAKE
  • 8
    5411422 GASKET, INTAKE
    GASKET, INTAKE
  • 9
    5811482 SEAL, AIR BOX COVER
    SEAL, AIR BOX COVER
  • 10
    5433678 BOX, AIR INTAKE 4-STRK
    BOX, AIR INTAKE 4-STRK
  • 11
    5434044 DUCT, AIR INLET CLUTCH
    DUCT, AIR INLET CLUTCH
  • 12
    7670102 CLIP
    CLIP
  • 13
    5812316 SEAL, FOAM
    SEAL, FOAM
  • 14
    7080451 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 17
    7080699 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    8450073-600 LINE, BREATHER (3/8 ID.) (OPT.)
    LINE, BREATHER (3/8 ID.) (OPT.)
  • 19
    7080694 CLAMP, HOSE SPRING
    CLAMP, HOSE SPRING
  • 20
    5411966 HOSE, BREATHER FORMED W/CHAFE (10CM)
    HOSE, BREATHER FORMED W/CHAFE (10CM)
  • 21
    2530029 FILTER, BREATHER IN LINE
    FILTER, BREATHER IN LINE
  • 22
    7080534 CLAMP, HOSE
    CLAMP, HOSE
  • 23
    5433396 CAP, END AIR BOX IN (BLACK)
    CAP, END AIR BOX IN (BLACK)
  • 24
    5242044 CLIP, AIR BOX
    CLIP, AIR BOX
  • 25
    5432377 PLUG, TRAP
    PLUG, TRAP
  • 26
    8450059-150 FUEL LINE (OPT.)
    FUEL LINE (OPT.)
  • 27
    7080650 CLAMP, HOSE
    CLAMP, HOSE
  • 28
    5811650 FOIL, AIR BOX
    FOIL, AIR BOX
  • 29
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 30
    7515179 SCREW
    SCREW
  • 31
    5412066 BOOT, CARBURETOR (34MM)
    BOOT, CARBURETOR (34MM)
