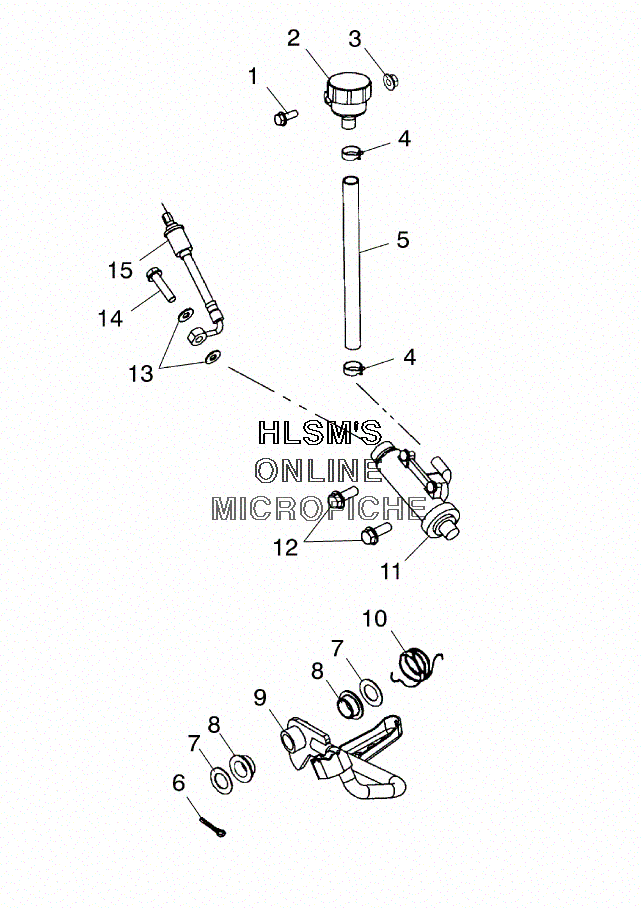

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris SPORTSMAN 400 4X4 (A03CH42AA) (CAMO GREEN METALLIC) - 2003 года выпуска`
-
№АртикулНазвание
-
17512240 BOLTBOLT
-
21930854 RESERVOIR, BRAKE ASSY. (REAR)RESERVOIR, BRAKE ASSY. (REAR)
-
37542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
47080003 CLAMP, HOSECLAMP, HOSE
-
51910315 HOSE, RESERVOIR (1/4ID) (22IN.)HOSE, RESERVOIR (1/4ID) (22IN.)
-
67661401 COTTER PINCOTTER PIN
-
77555919 WASHERWASHER
-
85431107 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
91910280-067 ROD, BRAKE (BLACK)ROD, BRAKE (BLACK)
-
107041750 SPRING, TORSION BRAKESPRING, TORSION BRAKE
-
111910301 CYLINDER, MASTER BRAKE (REAR)CYLINDER, MASTER BRAKE (REAR)
-
127512247 BOLTBOLT
-
135410988 SEALSEAL
-
141910499 BOLT, BANJO (10MM X 1.00)BOLT, BANJO (10MM X 1.00)
-
151910631 LINE, BRAKE MASTER CYLINDER (REAR)LINE, BRAKE MASTER CYLINDER (REAR)
