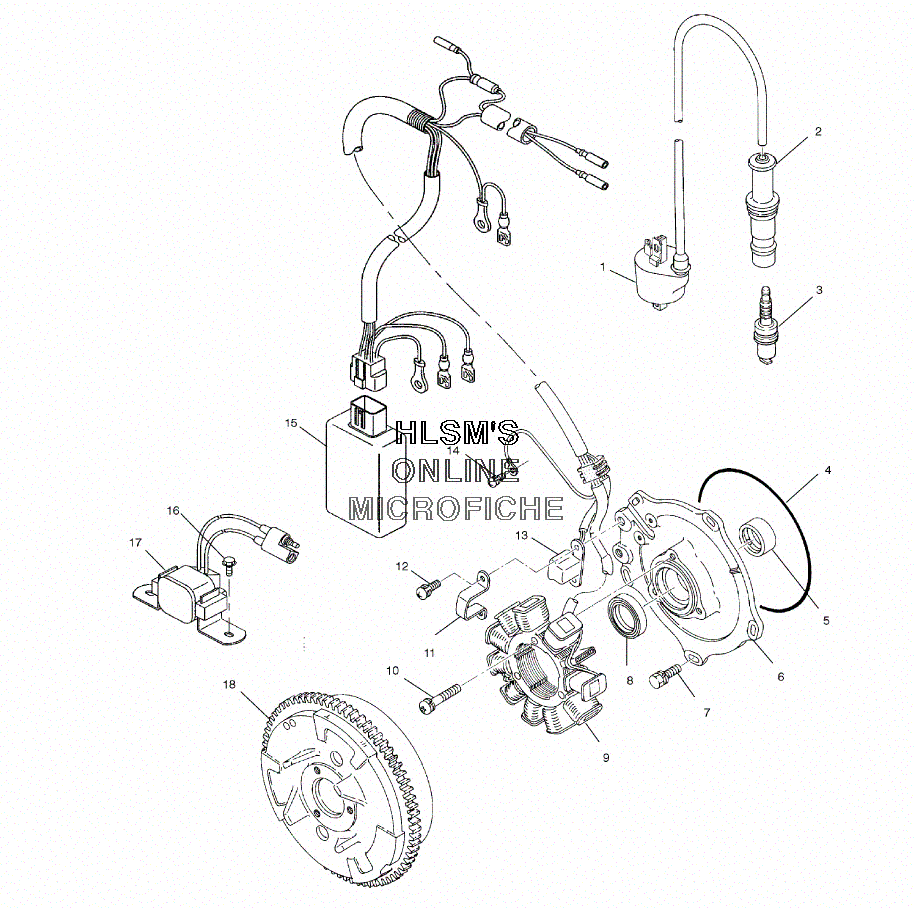

MAGNETO для Polaris SPORTSMAN 400 4X4 (A03CH42AA) (CAMO GREEN METALLIC) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3085228 COIL, IGNITION
    COIL, IGNITION
  • 2
    3084980 CAP, SPARKPLUG
    CAP, SPARKPLUG
  • 3
    3070175 SPARKPLUG
    SPARKPLUG
  • 4
    3084978 O-RING
    O-RING
  • 5
    3084972 BEARING, METAL
    BEARING, METAL
  • 6
    3087167 PLATE ASSY. (INCL. 5, 6, 8-12, 14)
    PLATE ASSY. (INCL. 5, 6, 8-12, 14)
  • 6
    3084971 PLATE
    PLATE
  • 7
    3081657 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 8
    3084973 SEAL, OIL
    SEAL, OIL
  • 9
    3087168 STATOR (INCL. 13)
    STATOR (INCL. 13)
  • 10
    3081342 SCREW AND WASHER ASSY.
    SCREW AND WASHER ASSY.
  • 11
    3085554 BAND, PULSE
    BAND, PULSE
  • 12
    3084976 SCREW AND WASHER ASSY.
    SCREW AND WASHER ASSY.
  • 13
    3085360 COIL, PULSER
    COIL, PULSER
  • 14
    3081256 SCREW AND WASHER ASSY.
    SCREW AND WASHER ASSY.
  • 15
    3087169 CDI-SYSTEM
    CDI-SYSTEM
  • 16
    3085359 BOLT, FLANGE
    BOLT, FLANGE
  • 17
    3087196 SWITCH, MAGNETIC
    SWITCH, MAGNETIC
  • 18
    3087166 FLYWHEEL, W/RING GEAR
    FLYWHEEL, W/RING GEAR
