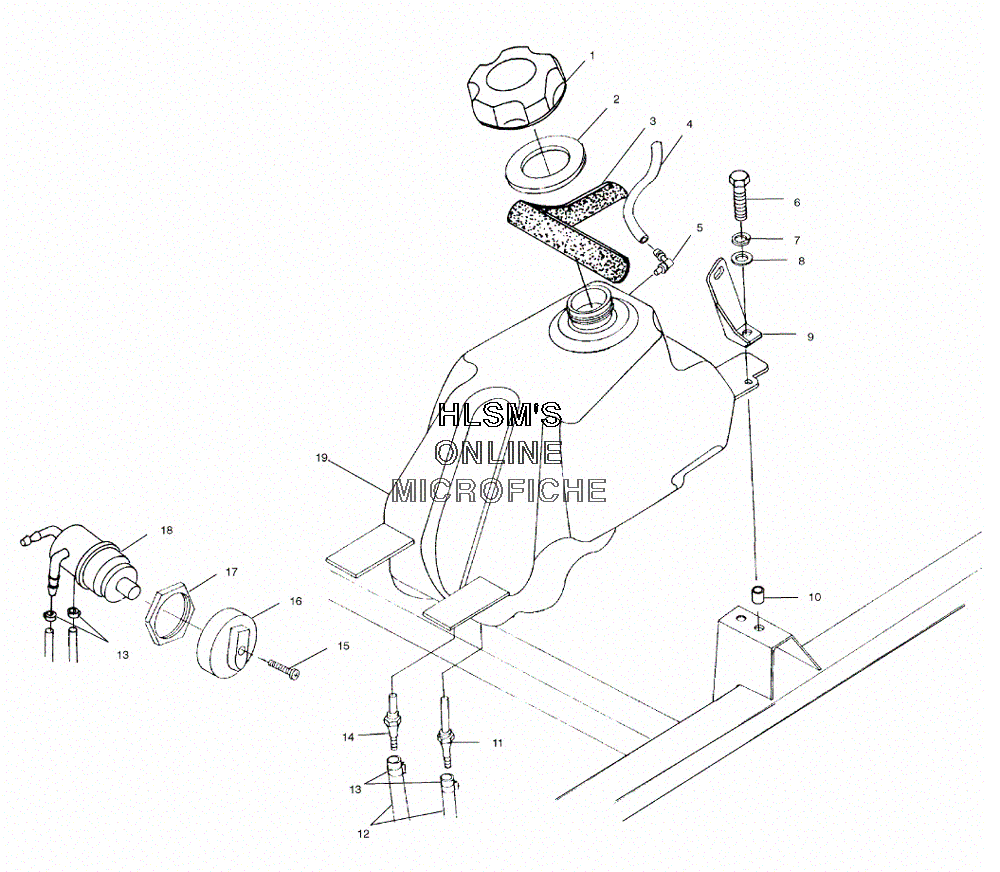

FUEL TANK для Polaris SPORTSMAN 400 4X4 (A03CH42AA) (CAMO GREEN METALLIC) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1A
    2520144 FUEL TANK ASSY. (INCL. 11, 14)
    FUEL TANK ASSY. (INCL. 11, 14)
  • 1
    5433687 CAP, GAS TANK (INCL. 2)
    CAP, GAS TANK (INCL. 2)
  • 2
    5812123 GASKET, GAS CAP
    GASKET, GAS CAP
  • 3
    5812210 SEAL, FOAM (24.5 IN)
    SEAL, FOAM (24.5 IN)
  • 4
    8360009-600 FUEL LINE (1/8 ID) (600 CM.) (OPT.)
    FUEL LINE (1/8 ID) (600 CM.) (OPT.)
  • 5
    5431053 VENT, TANK
    VENT, TANK
  • 6
    7512247 BOLT
    BOLT
  • 7
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 8
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 9
    5246069-067 BRACKET, FUEL COVER MOUNT (REAR/ LEFT/ BLACK)
    BRACKET, FUEL COVER MOUNT (REAR/ LEFT/ BLACK)
  • 9
    5246070-067 BRACKET, FUEL COVER MOUNT (REAR/ RIGHT/ BLACK)
    BRACKET, FUEL COVER MOUNT (REAR/ RIGHT/ BLACK)
  • 10
    7547069 NUTSERT, HEX
    NUTSERT, HEX
  • 11
    7052150 FITTING, FUEL OUT MAIN (4'')
    FITTING, FUEL OUT MAIN (4'')
  • 12
    8450040-600 FUEL LINE (1/4 ID) (600 CM.) (OPT.)
    FUEL LINE (1/4 ID) (600 CM.) (OPT.)
  • 13
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    7052149 FITTING, FUEL OUT RESONATOR
    FITTING, FUEL OUT RESONATOR
  • 15
    7517505 SCREW
    SCREW
  • 16
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 17
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 18
    7052161 VALVE, 3-WAY
    VALVE, 3-WAY
