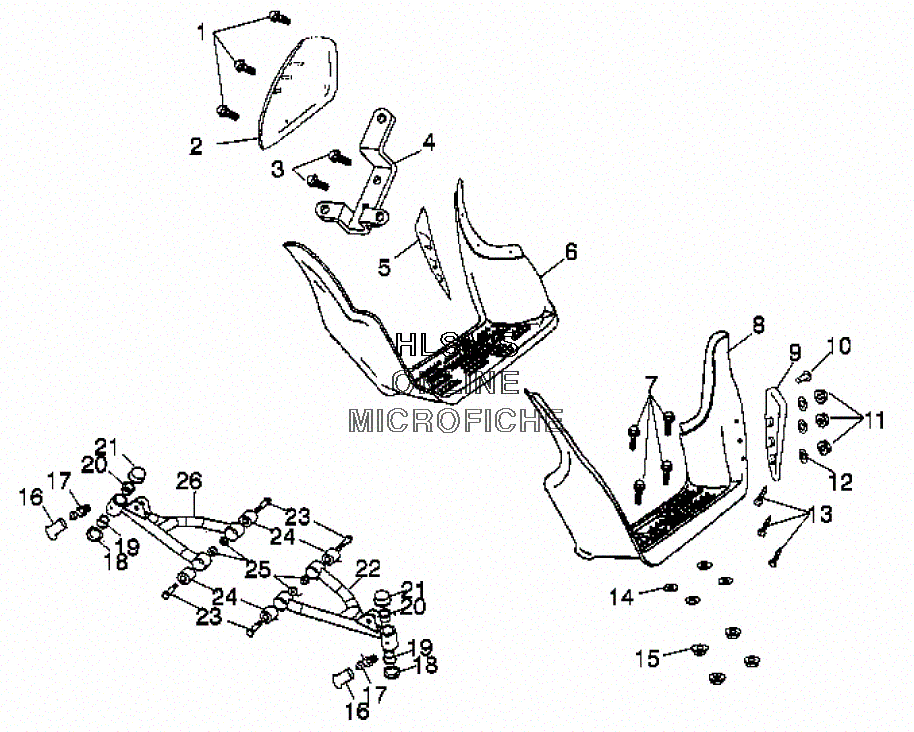

SUSPENSION - SWING ARM W/ FOOTREST для Polaris SCRAMBLER 50 (A03EA05CA) - 2003 года выпуска`
-
№АртикулНазвание
-
10450701 BOLT, HEXAGON WASHERBOLT, HEXAGON WASHER
-
20450611 SHIELD, HEATSHIELD, HEAT
-
30450298 BOLT, HEXAGONBOLT, HEXAGON
-
40450612 SUPPORT, HEAT SHIELDSUPPORT, HEAT SHIELD
-
50450610 MUDFLAP (RIGHT)MUDFLAP (RIGHT)
-
60451093 FOOTREST (LEFT)FOOTREST (LEFT)
-
70450340 BOLT, HEXAGONBOLT, HEXAGON
-
80451092 FOOTRESTFOOTREST
-
90450609 MUDFLAP (LEFT)MUDFLAP (LEFT)
-
100450676 SCREW, TAPPINGSCREW, TAPPING
-
110450823 NUT, LOCK NYLONNUT, LOCK NYLON
-
120450743 WASHER, PLAINWASHER, PLAIN
-
130450822 BOLT, PAN PHLLPSBOLT, PAN PHLLPS
-
140450879 WASHER, PLAINWASHER, PLAIN
-
150450808 NUT, LOCKNUT, LOCK
-
160450321 CAP, RUBBERCAP, RUBBER
-
170450320 VALVE, GREASEVALVE, GREASE
-
180450317 RUBBER, DUSTPROOFRUBBER, DUSTPROOF
-
190450314 SEAT, GREASE CONTAINSEAT, GREASE CONTAIN
-
200450313 SEAT, GREASE CONTAINSEAT, GREASE CONTAIN
-
210450316 COVER, WATERPROOFCOVER, WATERPROOF
-
220450902 ARM, SUSPENSION (LEFT)ARM, SUSPENSION (LEFT)
-
230450820 BOLT, WASHER HEXAGONBOLT, WASHER HEXAGON
-
240450288 BUSHING, SUSPENSIONBUSHING, SUSPENSION
-
250450249 NUT, FLANGENUT, FLANGE
-
260450901 ARM, SUSPENSION (RIGHT)ARM, SUSPENSION (RIGHT)
